FieldPilot ®
2. install the FieldPilot ValVe Bracket
The valve bracket will mount on the right side of the vehicle using the top bolt from the support gusset.
Remove the top gusset support bolt and attach the bracket (H) with the original gusset support bolt.

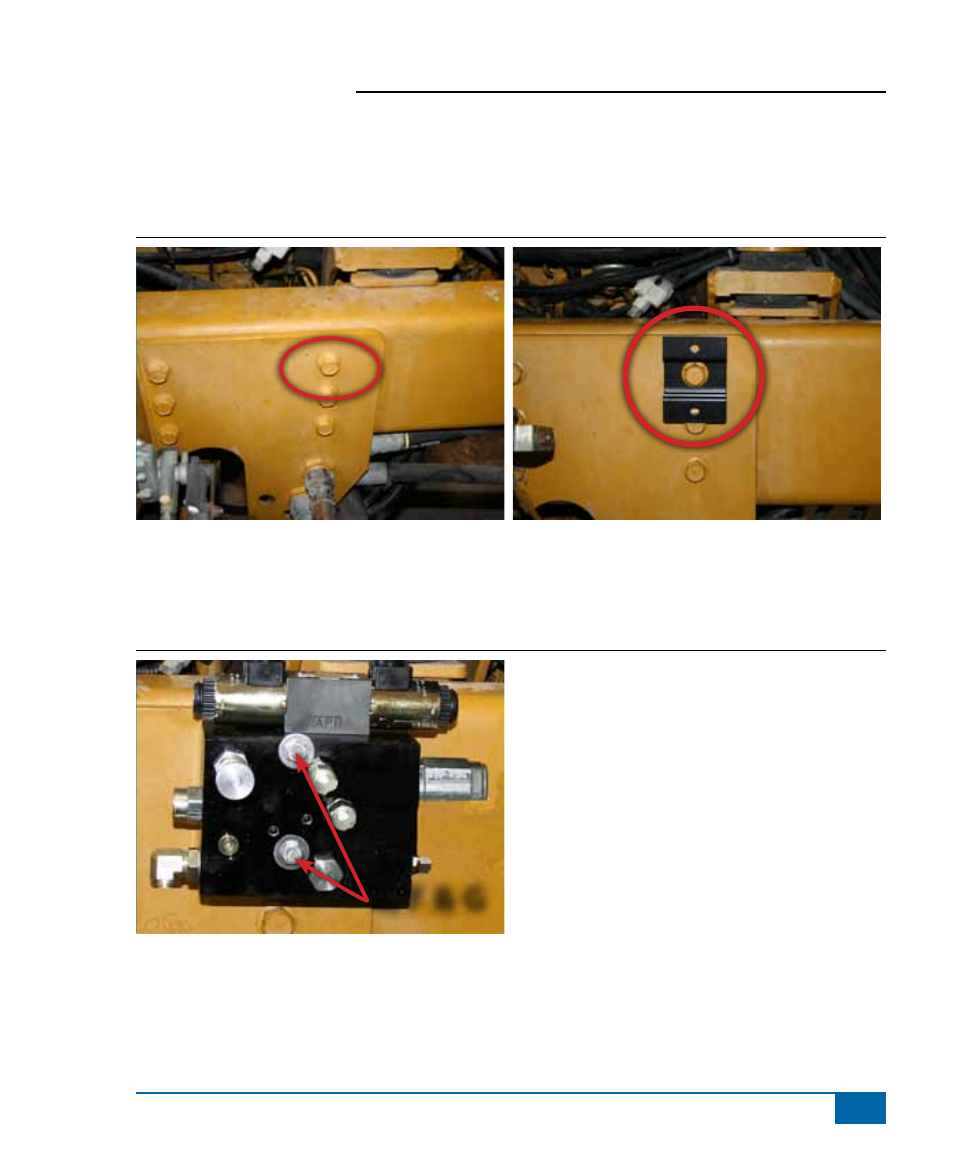

Figure 1-3: Install Mounting Bracket for FieldPilot Valve
3. Mount the FieldPilot ValVe
Mount the FieldPilot Valve (C) to the bracket using parts (B, F & G) . Mount the FieldPilot Valve so that the
EF port faces toward the rear of the machine.
Figure 1-4: Mount the FieldPilot Valve
B, F & G
