FieldPilot ®
7. install the leFt and right steer hoses and adaPters
On the orbital, disconnect the hose from the L port. Attach a run tee (M) to the L port on the orbital. Reattach
the original hose to the run of the tee. Connect the 90° elbow end of hose (J) to the B port of the FieldPilot
valve. Route the other end to the branch of the tee connected to the L port on the orbital. On the orbital,
disconnect the hose from the R port. Attach a run tee (M) to the R port on the orbital. Reattach the original
hose to the run of the tee. Connect the 90° elbow end of hose (J) to the A port of the FieldPilot valve. Route
the other hose end to the branch of the tee connected to the L port on the orbital..

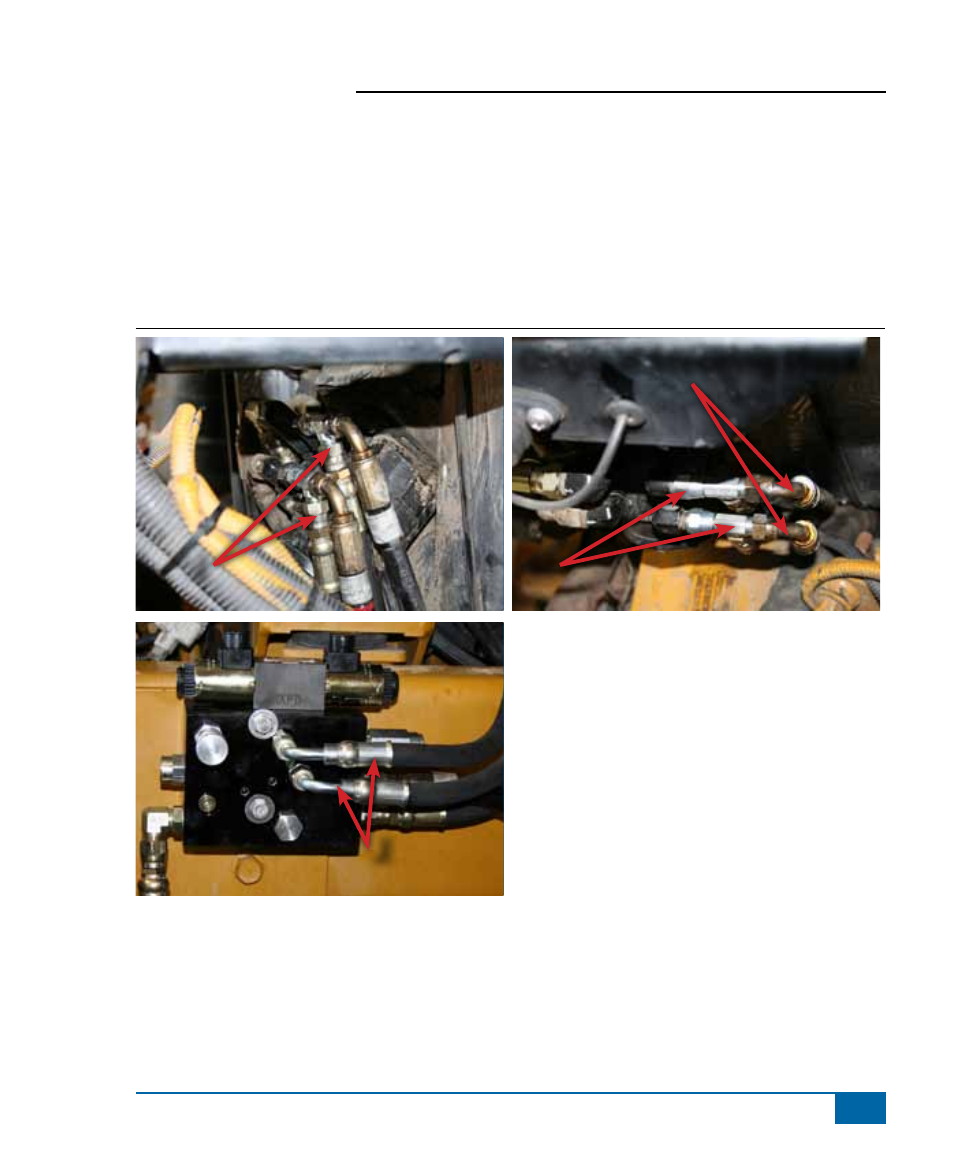

Figure 1-8: Install the Left and Right Steer Hoses and adapters
8. install the FieldPilot ValVe harness
Connect the FieldPilot valve control cable (E) to the coils on the FieldPilot valve and route the cable into the
cab. Connect it to the SCM harness. Do not be concerned at this time about which connector is connected to
which solenoid coil.
J
J M
original steering Hose
