www.teejet.com

11

FieldPilot

®

5. install Pressure hose

Connect one end of hose

(K)

to the P port on the FieldPilot Valve. Route the other end to the EF port of the

Priority Valve. This end will connect where the previously mentioned Excess Flow hose was disconnected

from the Priority Valve.

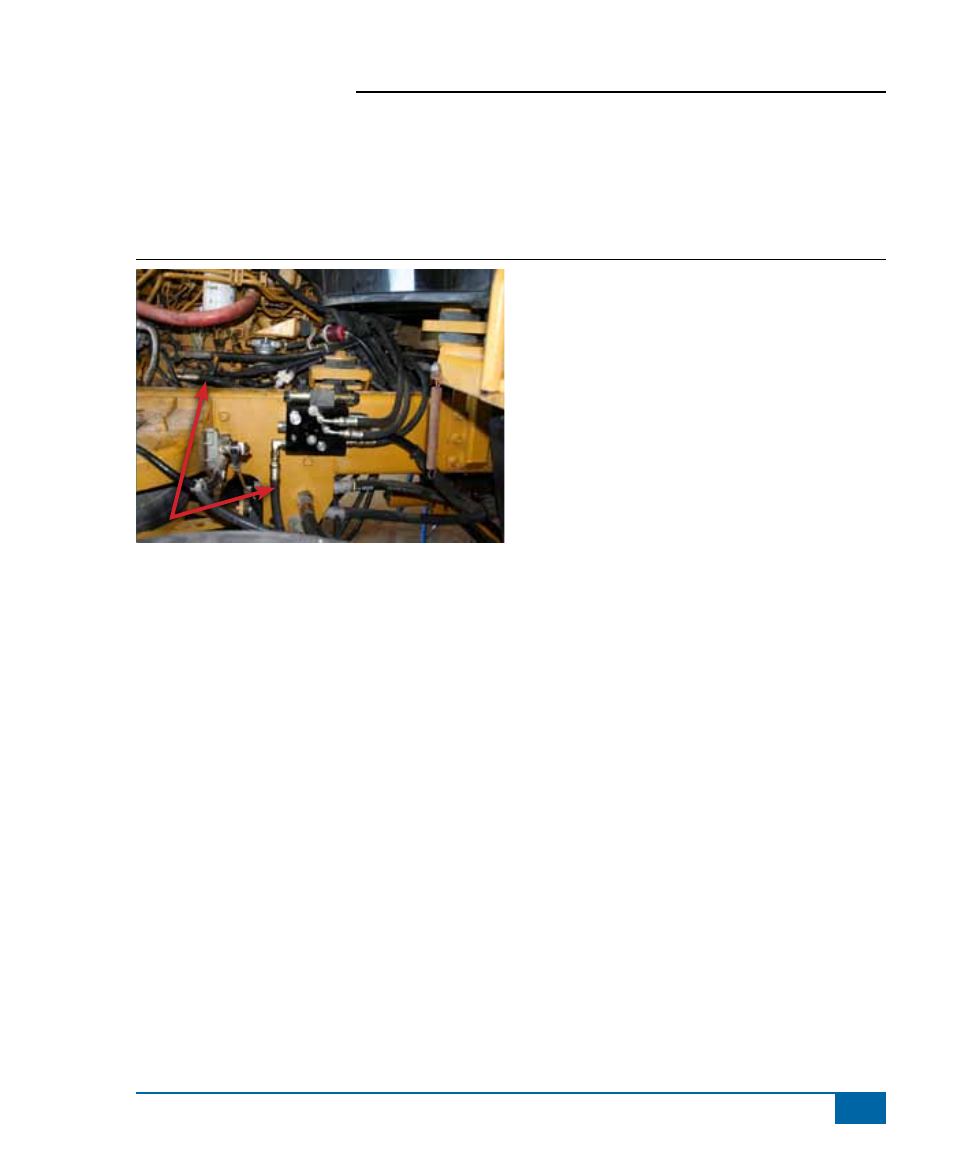

Figure 1-6: Install Pressure Hose

K
