Page 13

www.teejet.com
12
FieldPilot
®
6. install the tank hose and adaPters
On the orbital, disconnect the hose from the T port. Attach the run tee
(L)
to the T port of the orbital.
Reattach the original hose to the run of the tee. Connect the straight end of the hose
(I)
to the branch of the
run tee coming out of the T port on the orbital and route the 90° end of the hose to the T port of the FieldPilot
Valve.

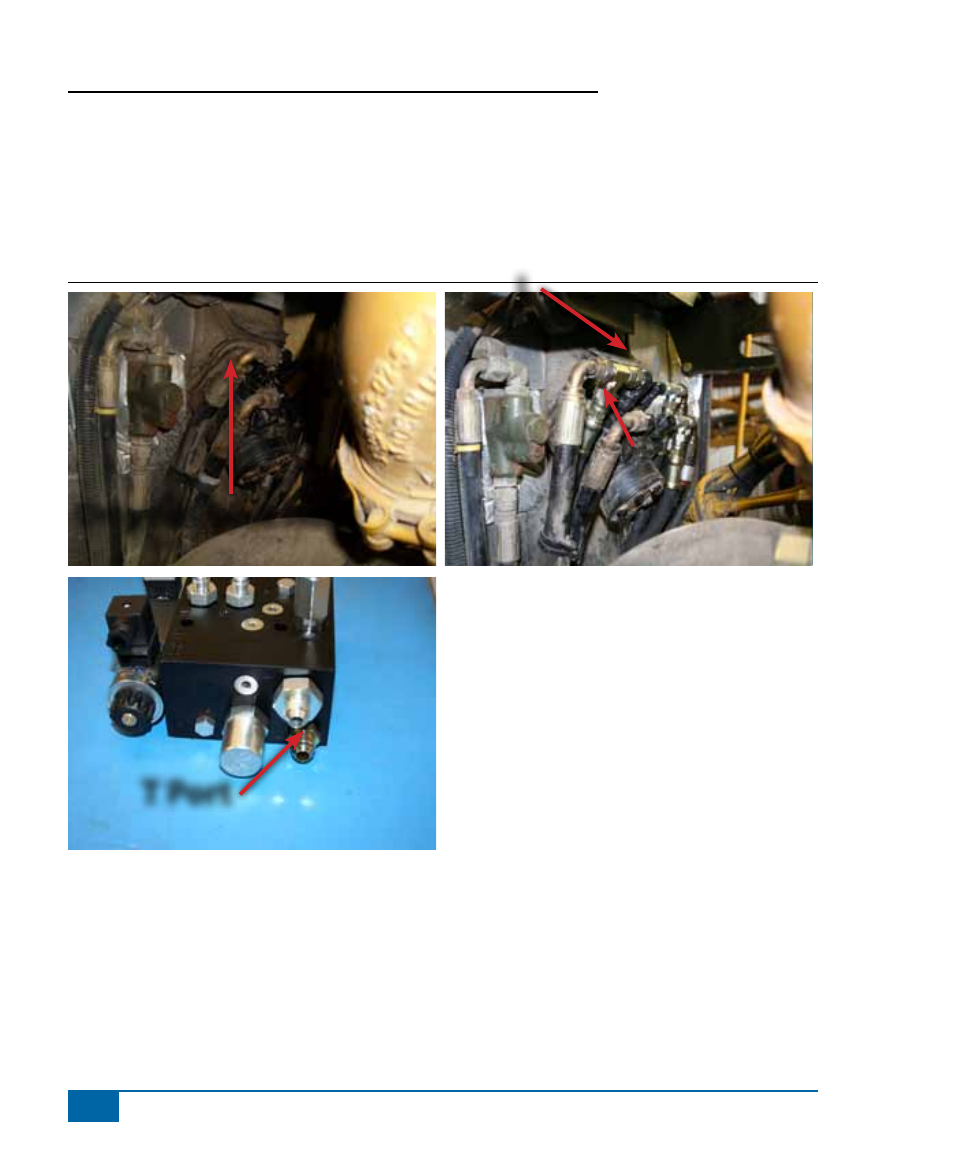

Figure 1-7: Install The Tank Hose and adapters
t port
i
l
original tank Hose
