FieldPilot ®
10. installation oF engage/disengage switch
Connect item (A) to the connector on the SCM harness labeled Remote Engage/Disengage. Install the push
button in a location that is easily accessible during operation of the machine. This switch (A) is not required
if the optional foot switch 32-04020 is used.

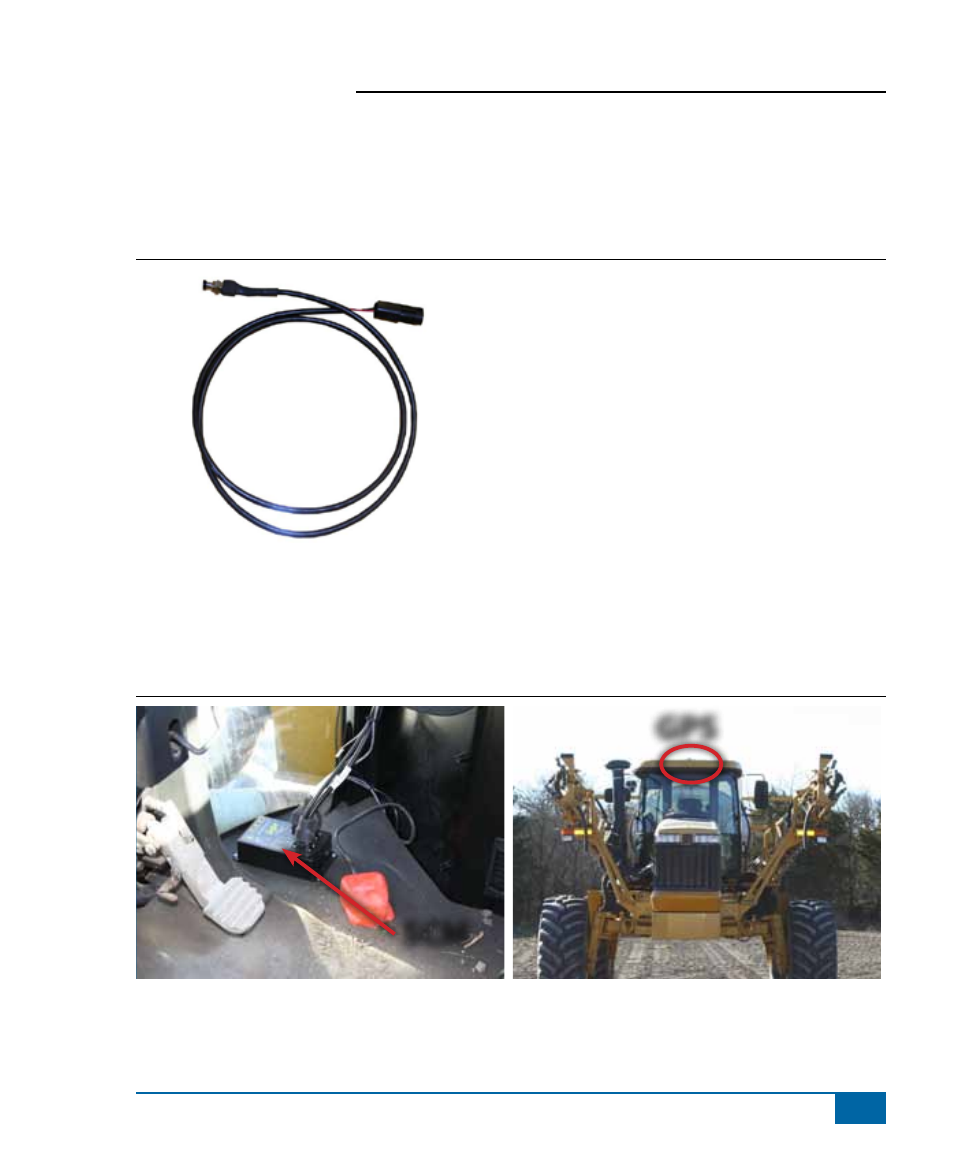

Figure 1-10: Engage/Disengage Switch
11. recoMMended electronics installation
The Steering Control Module (SCM) should be mounted securely to the floor of the cab. The control console
can be mounted to the operator’s preference. The GPS antenna should be mounted on top of the cab on a
metal surface of at least 4” square.
Figure 1-11: Recommended Electronics Installation
sCM
Gps
