FieldPilot ®

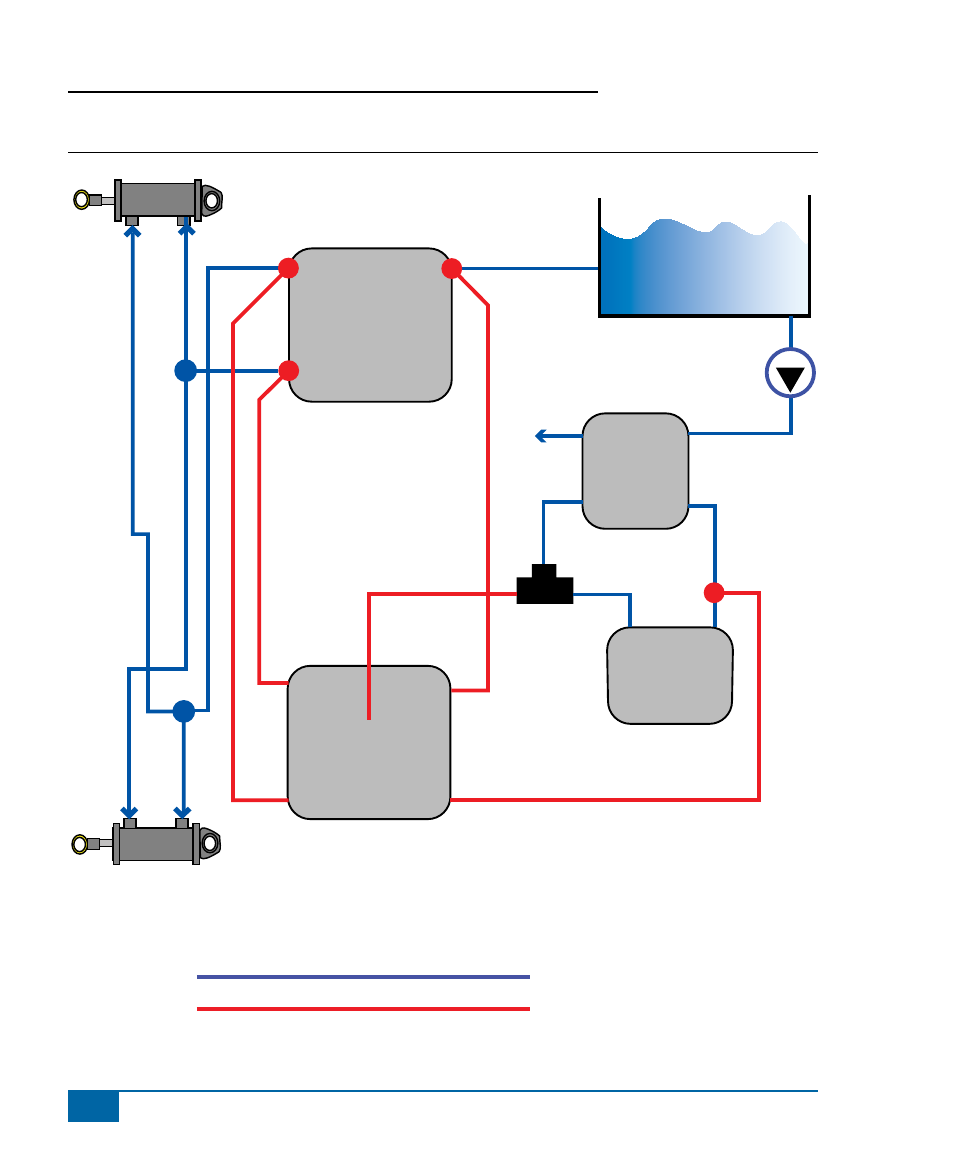

Figure 1-1: Hydraulic Diagram
Existing Hoses
Hoses From Kit
Tank
FieldPilot Valve
Priority Valve
R T
L
P
P EF
CF LS
A T
Main Hydraulic
Block
LS P
LS
B P
Orbital
Auxiliary
Pump
J I
I
H
K
Shuttle
Tee
N
