TeeJet FieldPilot Install AGCO GLNRA756-A856 MF9x95 CHNGR670B-680B - Manual (Page 5)

www.teejet.com
3
FieldPilot ®

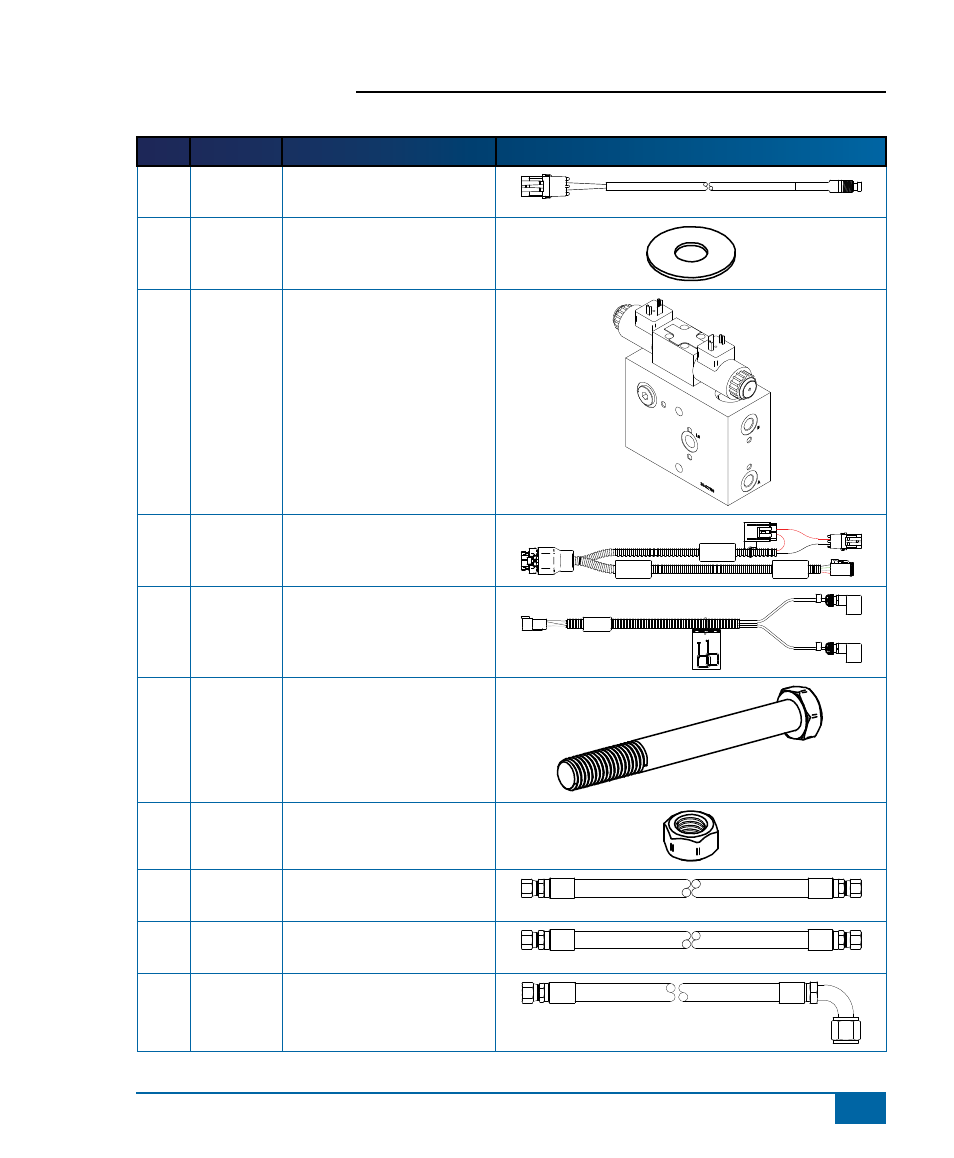

Item Part # Description Illustration
A 32-04040 Switch, Engage/Disengage,
Momentary
B 350-0037 Washer, Flat - 3/8" SST
C 35-02188 Valve, FieldPilot PWM, CC,
LS, 3.2GPM
D 45-07703 Harness, SCM
SCM Power I/O
45-07703
DC: xx/xx
Valve Output
Power
E 45-10103 Harness, Valve
A
B
45-10103
DC: xx/xx
F 60-04087 Bolt, Hex- 3/8-16 x 3-3/4"
SST
G 60-07027 Nut, NyLock 3/8-16, SST
H 68-01033 Hose, Hyd. - 3/8" x 14",
#6FJIC Both Ends
I 68-01100 Hose, Hyd. - 3/8" x 18",
#6FJIC x #6FJIC
J 68-01258 Hose, Hyd. - 1/2" x 132",
#8FJIC x #12FJIC 90º
