www.teejet.com

11

FieldPilot

®

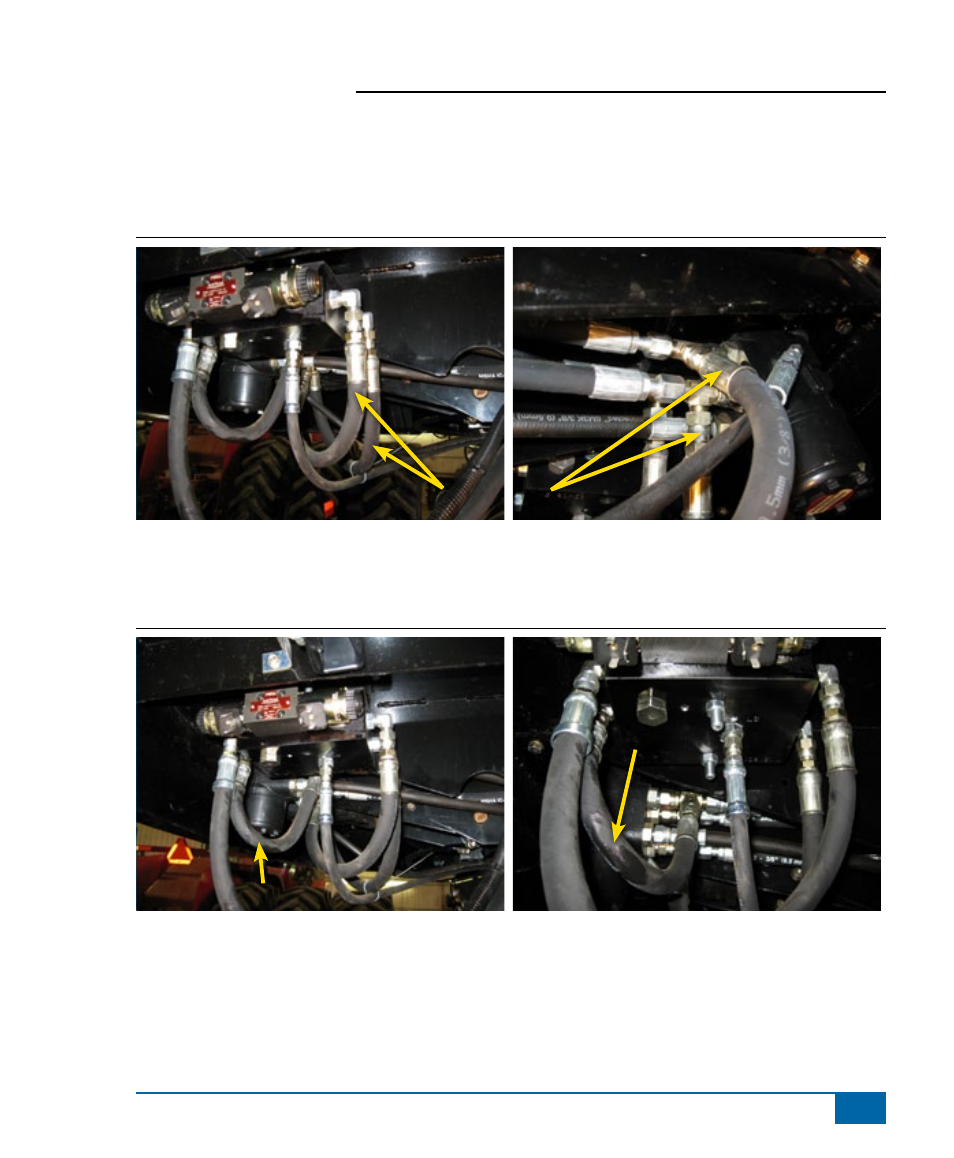

4. inStall the SteerinG hOSeS

Connect hoses

(I)

from the A & B ports of the FieldPilot valve to the branches of run tees

(O)

on the L & R

ports of the orbital.
Figure 1-6: Install the Steering Hoses

5. inStall the tanK hOSe

Connect hose

(H)

from the T port of the FieldPilot valve to the T port of the Orbital.

Figure 1-7: Install the Tank Hose

i

H

H

i
