6. inStall the PreSSure hOSe and adaPter
Locate the pressure port on the hydraulic block as indicated. Disconnect the machine’s hose and install run
tee (M) . Reconnect the original hose to the run of the tee. Then connect and route hose (J) from the P
port of the FieldPilot valve to the branch of the run tee (M) . Adapter (P) can be used as needed to make
your installation easier.

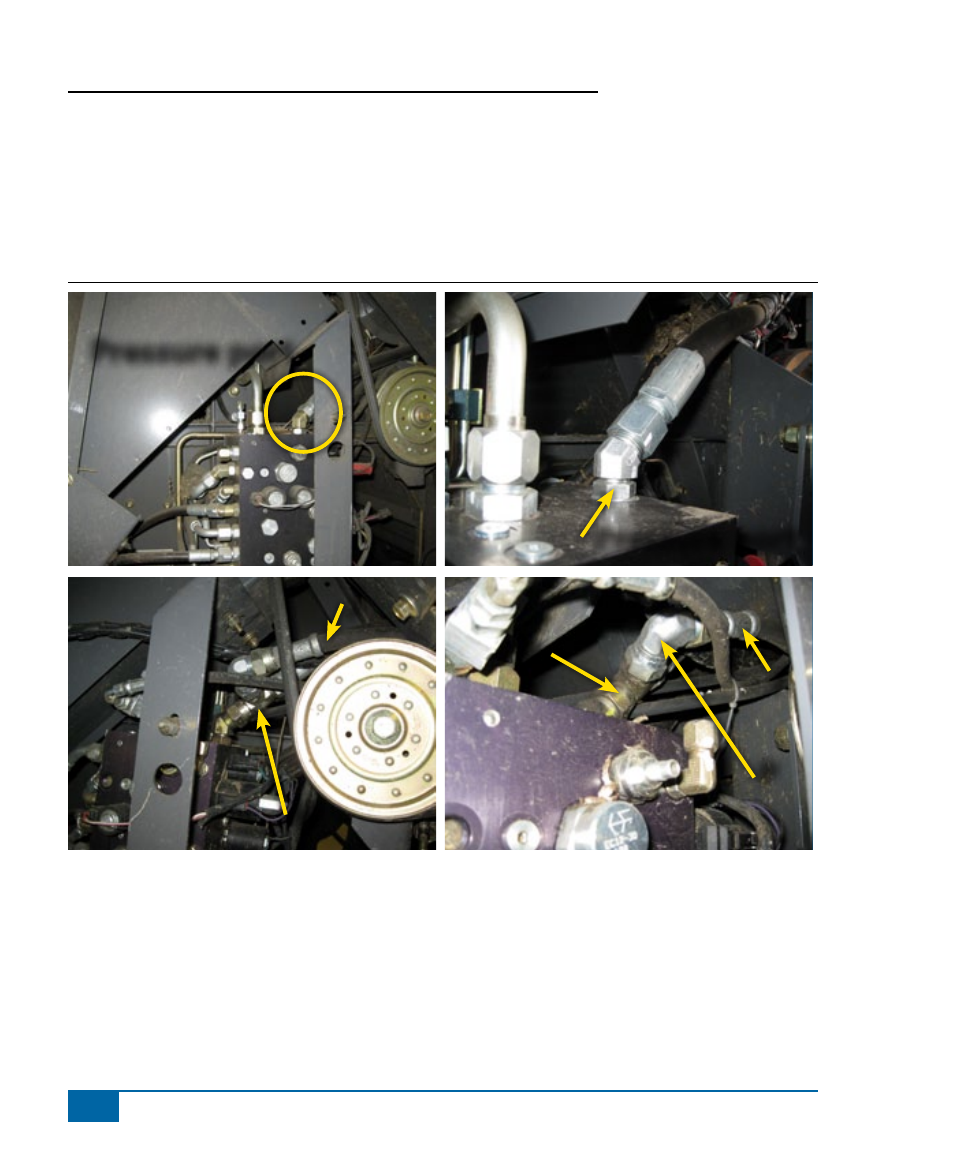

Figure 1-8: Install the Pressure Hose and Adapter
pressure port
pressure port
J
M
J
p
M
