RealView Guidance
Field View Guidance
Vehicle View Guidance
Unit Setup
Home/Job Screen
(or press Home Button)
A
A
A
B

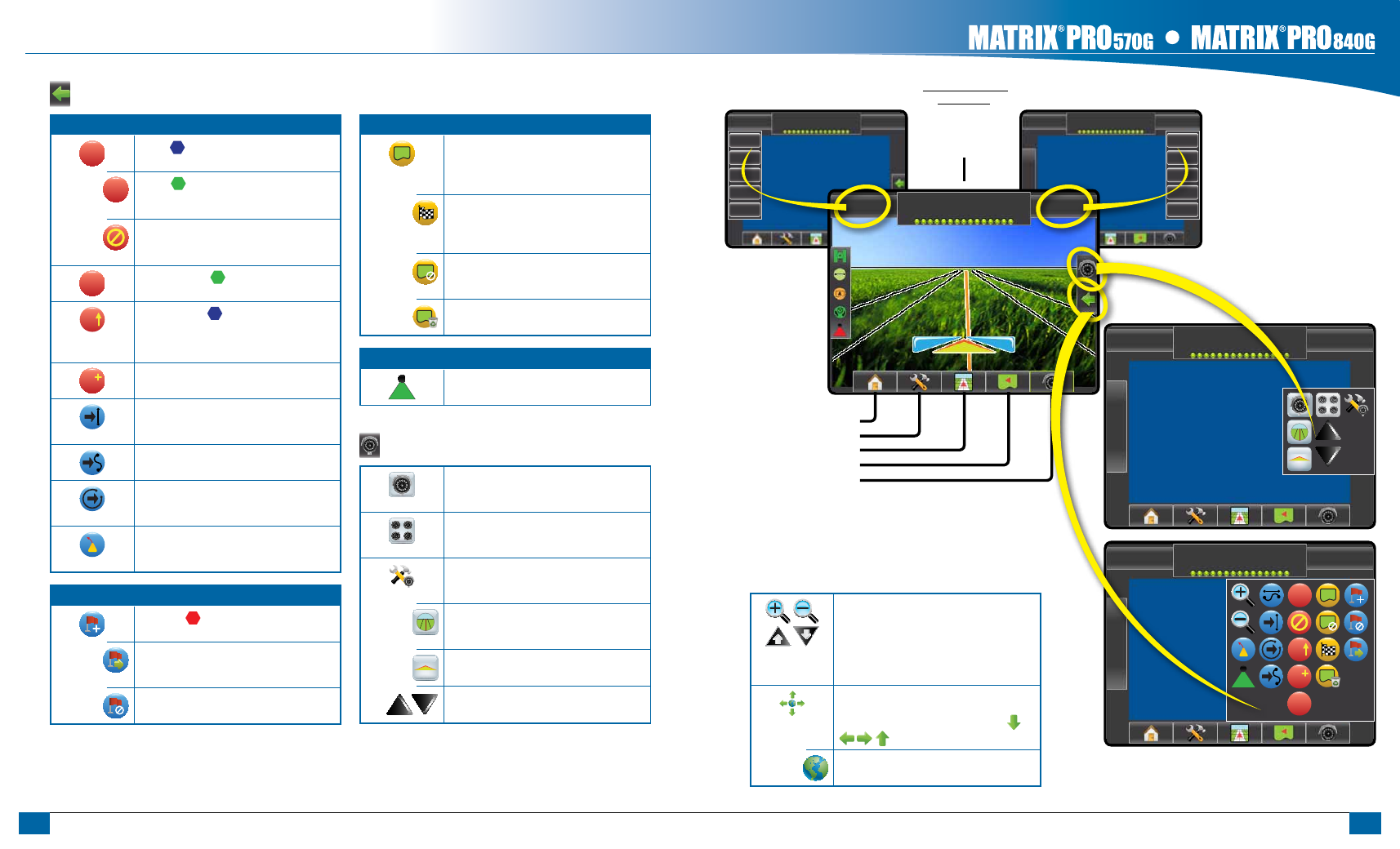

GuidaNce featureS OVerView
12:32 PM 1 deg
No GPS
Speed
Area
Time
Swath #
Heading
12:32 PM 1 deg
No GPS
Speed
Area
Time
Swath #
Heading
Guidance Options
Guidelines
A Mark A . Marks the first point of the
guideline.
B Mark B . Marks the end point of the
guideline. Grayed = minimum distance has not
been traveled.
Cancel Mark A. Cancels the Mark A process.
Reverts to previous AB guideline (when
established).
B NextRow Mark B . Marks the end point of
the row.
A
Azimuth Degree . Establishes a straight
guideline measured by degrees clockwise from
a north base line. North = 0, East = 90, South =
180, West = 270.
A
A+ Nudge. Shifts the existing guideline to the
vehicle’s current position.
Next Straight AB or Azimuth Degree Guideline.
Shows the next straight guideline saved in the
current job.
Next Curved AB Guideline. Shows the next
Curved AB guideline saved in the current job.
Next Circle Pivot Guideline. Shows the next
Circle Pivot AB guideline saved in the current
job.
Curved Lookahead. Provides an indication of
where the current steering will take the vehicle
using a ‘pointer’ as guidance
return to point
Mark Point . Establishes a point at the
vehicle location. Grayed = GPS is unavailable.
Return to Point. Provides distance back to an
established point. (Switch to Vehicle View to
provide navigation back to an established point.)
Cancel Point. Deletes the Marked Point.
-13 7.2 mph
> 0.0 <
Navigation Activity &
Boom Status
GPS Status
Cross Track Error
Current Activity
Screen Options
Vehicle View Zoom In/Out. Icons or buttons
adjust the vehicle’s view or perspective to the
horizon from vehicle view to bird’s eye view.
Field View Zoom In/Out. Icons or buttons
increase/decrease the area displayed on the
screen.
Pan. Touching the screen allows operator to
focus on specific map areas without moving the
vehicle. Arrows on screen move the view
in the corresponding direction.
World View. Extends screen view to the widest
area available.
Boundaries
Mark Boundary. Establishes application area
and determines no apply zones. Boundary is
established to the outside of an applied pass.
Grayed = GPS is unavailable.
Finish Boundary. Finalizes boundary process.
Boundaries can also be closed by travelling to
within a swath width of the starting point. Grayed =
minimum distance has not been traveled.
Cancel Boundary. Cancels the new mark
boundary process. Reverts to previous
boundary (when established).
Delete Boundary. Deletes all established
boundaries from current job.
Boompilot
BoomPilot. Selects BoomPilot mode. Grayed =
GPS is unavailable.
realView Guidance Options
Video Camera Select. Selects one of up to
eight camera views if a Video Selection Module
(VSM) is attached.
Split Camera View. Selects one of two sets of
four camera inputs (A/B/C/D or E/F/G/H) to
divide the screen into four separate video feeds.
Guidance Over Video Setup. Access to turn on
Guidance Over Video or Steering Angle and
adjust guidelines.
Guidance Over Video. Places three-dimensional
guidelines over the video feed for navigational
assistance.
Steering Angle. Displays the direction in which
the steering wheel needs to be adjusted.
Up & Down Icons. Used to adjust the guidance
lines to match the camera’s view.
