TeeJet Matrix Pro 840G Start Up Guide - Manual (Page 3)

4
www.teejet.com
5
98-01380 R0

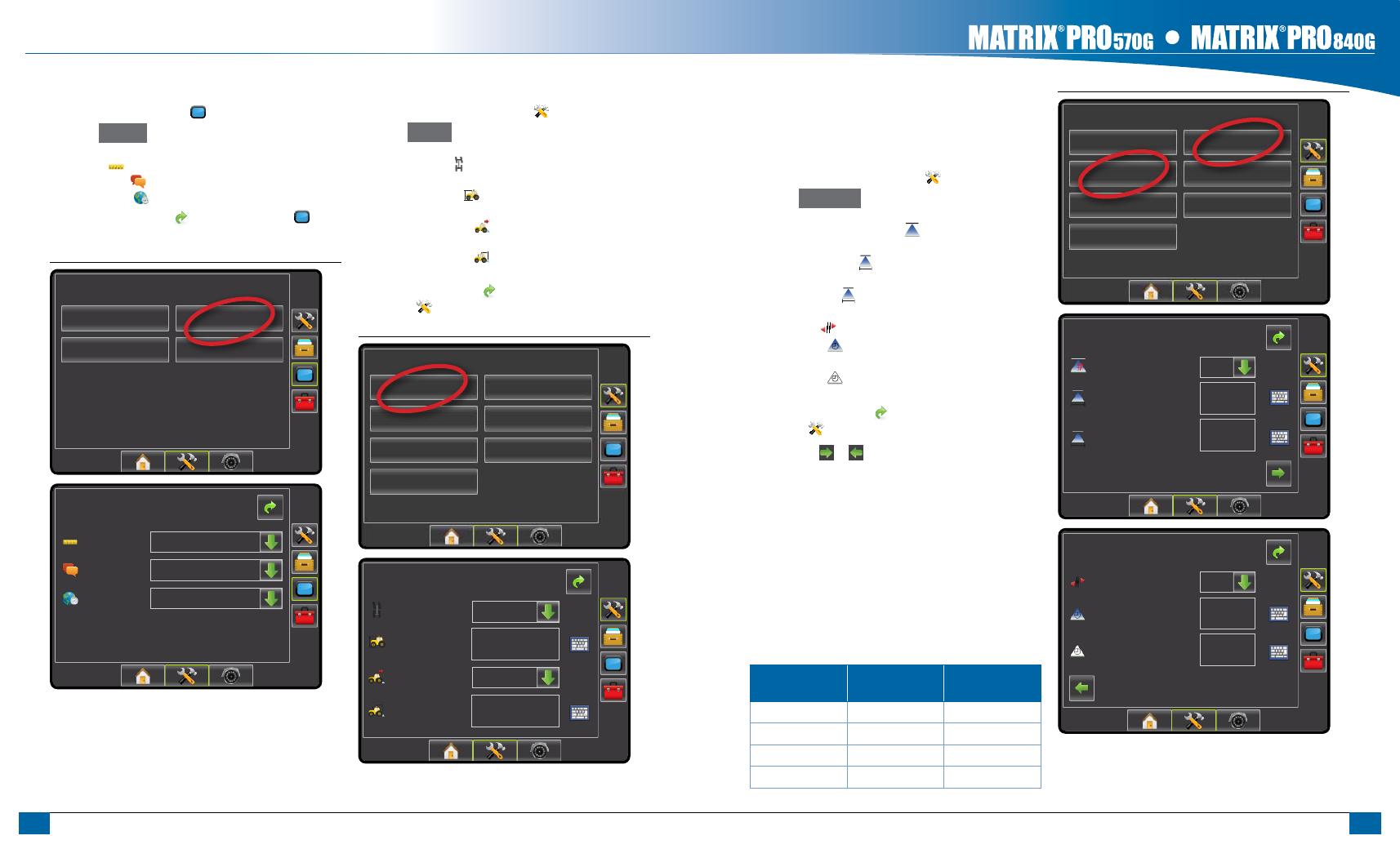

#5 cultural Setup
1. Press CONSOLE side tab .
2. Press
Cultural .
3. Select from:
►Units – defines the system measurements
►Language – defines the system language
►Time Zone – establishes the local time zone.
4. Press RETURN arrow or CONSOLE side tab to
return to the main Console screen.
Figure 1-3: Cultural Options
Console Settings
Display Cultural
Sound About
Console->Cultural
Units US
Language
Time Zone
English-US
UTC
#6 Vehicle Setup
1. Press CONFIGURATION side tab .
2. Press
Vehicle .
3. Select from:
►Vehicle Type – selects the type of vehicle that most
closely represents your vehicle
►Antenna Height – sets the height of the antenna from
the ground
►Direction to Boom – sets whether the boom is
located behind or in front of the GPS antenna
►Distance to Boom – defines the distance from the
GPS antenna to the boom
4. Press RETURN arrow or CONFIGURATION
side tab to return to the main Configuration screen.
Figure 1-4: Vehicle Setup Options
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config-> Vehicle
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
12.50 ft
0.00 ft
Front Wheel
Backward
cONfiGure
#7 implement Setup
When a SmartCable or Section Driver Module (SDM) is not
present only a single boom setup is available. Configurations
for Overlap, Delay On and Delay Off will not be available, and
Number of Sections will be set to one.
1. Press CONFIGURATION side tab .
2. Press
Implement .
3. Select from:
►Number of Boom Sections # – establishes the number
of boom sections
►Guidance Width
– establishes the width between
guidelines
►Spray Width
– establishes the width of each boom
section for a total spray width
►Overlap
– determines the amount of overlap allowed
►Delay On – establishes the timing for the boom
section valves to switch on
►Delay Off
– establishes the timing for the boom
section valves to switch off
4. Press RETURN arrow or CONFIGURATION
side tab to return to the main Configuration screen.
NOTE: Press or to switch between Implement setup
screens.
#8 autoSteer Setup
When a Steering Control Module (SCM) is present, AutoSteer
options will be available. For detailed setup instructions, refer
to your specific FieldPilot or auto steering installation manual
or visit www.teejet.com for the full Matrix Pro User Manual, part
number 98-05238.
NOTE: An update of your SCM software may also be required
when updating an existing Matrix console to Matrix Pro.
SCM Software Version Required
SCM Software
Version Matrix 1.x Matrix Pro 2.x
1.03 ●
1.04 ●
1.05 ●
10.0 ●
Figure 1-5: Implement Setup Options
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config->Implement
Num Sections
Spray Width
Guidance Width 75.00 ft
75.00 ft
15
Config->Implement (2)
Overlap
Delay Off
Delay On 1.00 s
1.00 s
50%
