#3 Guidance Screen
RealView Guidance
Field View Guidance
Vehicle View Guidance
Unit Setup
Home/Job Screen (or press Home Button)
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video

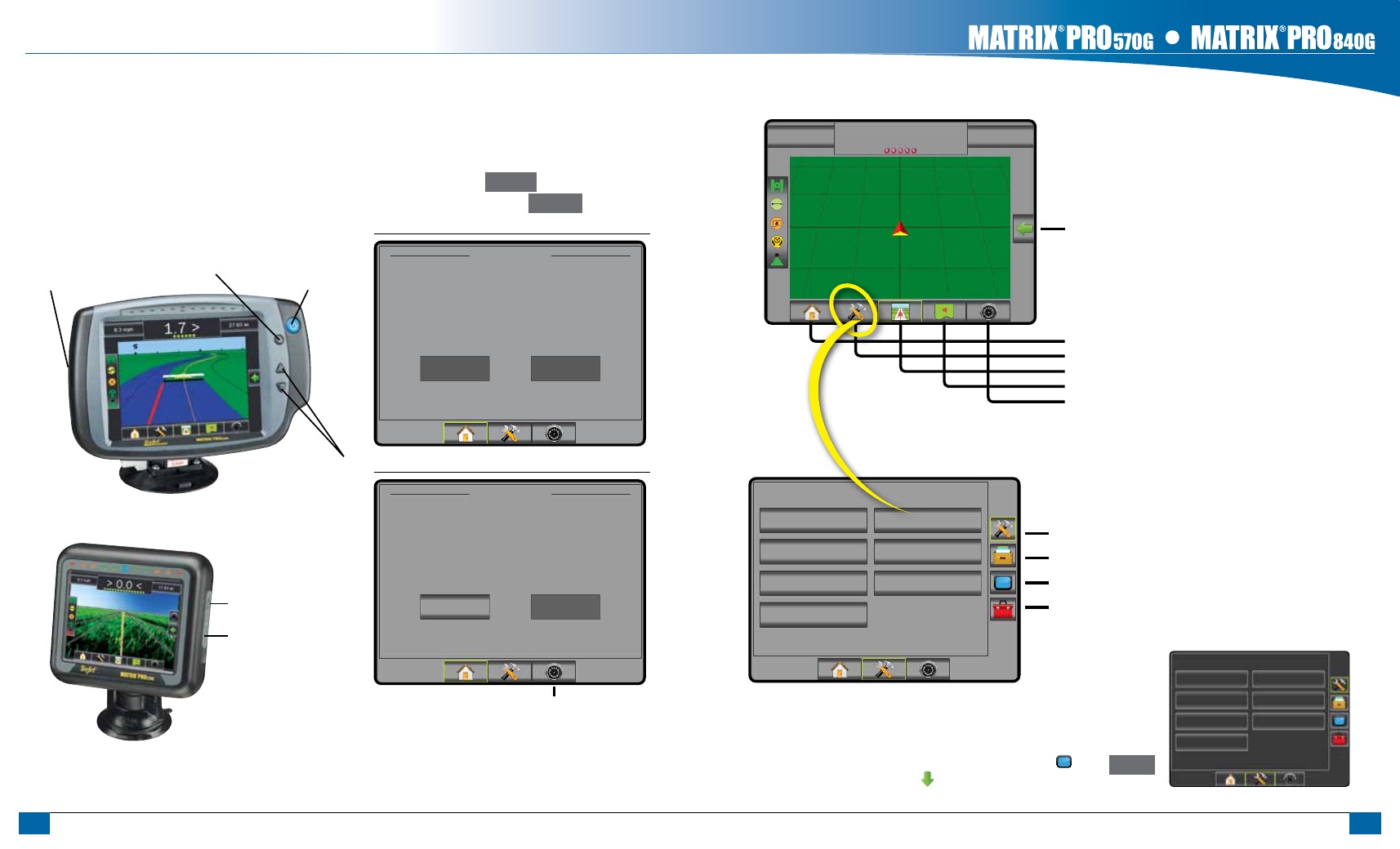

#1 turn power On
Press the POWER BUTTON to power on the console.
Upon power up, the Matrix Pro will begin its Start Up Sequence.
To turn the power off, press and briefly hold the power button until a
confirmation screen acknowledges shut down mode.
WARNING! Wait 30 seconds before restarting the console after
powering off.
#2 Start New Job or
continue Job
Once the power up sequence has completed, the Home
screen will appear with the option to start a new job or
continue an existing job.
To start a new job press
New Job .
To continue the existing job press Continue .
Figure 1-1: MUST HAVE GPS BEFORE STARTING JOB
12/14/10 3:52 AM
Must have valid GPS signal before starting job.
Please wait.
New Job Continue
Figure 1-2: Home Screen with Acquired GPS
RealView Camera Full Screen Video View
12/14/10 3:52 AM
Do you want to start a new job data or continue last job?
Starting a new job will clear the previous job data.
New Job Continue
RealView Camera Full Screen Video View
View video feed(s) and setup cameras without GPS
available. Options for Realview Guidance are not available
on this screen.
Start
Configuration side tab
Data Management side tab
Console Settings side tab
Tools side tab
Side Tab Keys
Power Button
USB Port
with Rubber Cover
Power Button USB Port with Rubber Cover
Home Button
Zoom In/Out Buttons
Light or Dark Console Screen
The console is availalbe in two color schemes.
To change to “dark”, press CONSOLE side tab . Press Display .
Press Color Scheme DOWN arrow and select between “Dark” or “Light” color mode.
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Status Bar
0.0 mph 0.00 ac
Mark A
Guidance Bar
Navigation and
Guidance Options
#4 Go to unit Setup
The Configuration options will be displayed first. Data Management, Console Setting and Tools can be accessed through the side
tab keys.
