2E42-27/2E42-27R/2E43-27/2E43-27R User’s Guide 4-1
CHAPTER 4
TROUBLESHOOTING
This chapter provides information concerning the following:
• Using the LANVIEW diagnostic and status monitoring system
• Troubleshooting network and 2E4X-27 operational problems
• Using the RESET button
4.1 USING LANVIEW
The 2E4X-27 uses Cabletron Systems built-in visual diagnostic and status
monitoring system called LANVIEW. The LANVIEW LEDs (
Figure 4-1 )
allow quick observation of the network status to aid in diagnosing
network problems. Refer to
Table 4-1 for a description of the LEDs.
For a functional description of the LANVIEW LED on the optional Fast
Ethernet Interface Module (FE-100TX), refer to
Section 4.2 .
All LEDs for the High Speed Interface Module (HSIM) are located on the
HSIM and are described in the associated HSIM user’s guide.

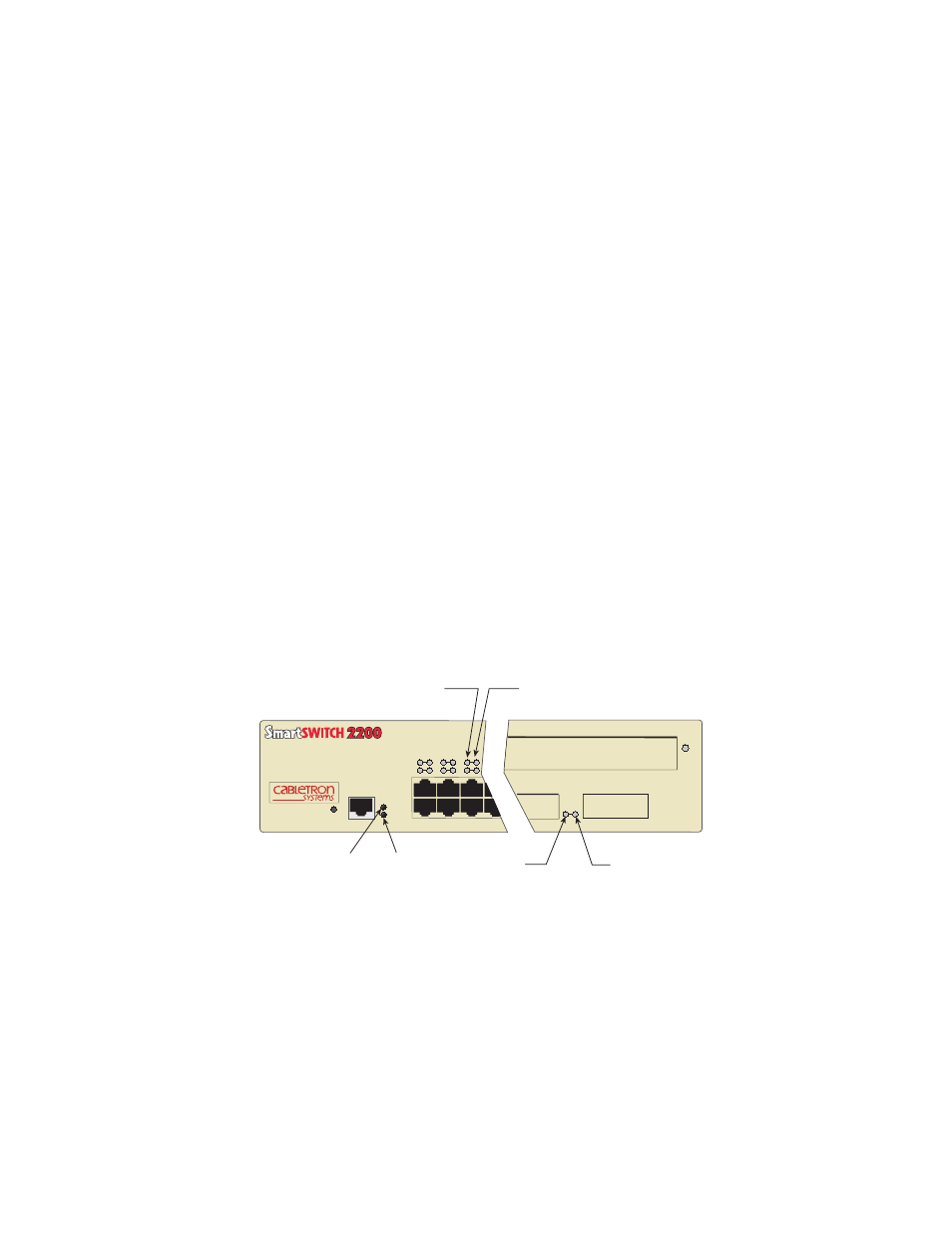

Figure 4-1 LANVIEW LEDs
1960-36
RX TX
TX RX CPU PWR
2E42-27
COM
PWR
CPU RESET
1
2
3
4
5
6
1X 3X 5X 7X
HSIM-ASDP
26
