Chapter 3: Installation
3-12
2E42-27/2E42-27R/2E43-27/2E43-27R User’s Guide
To connect an RJ21, proceed as follows:
1.
Ensure that the device connected to the other end of the segment is
powered ON.
2.
If using an RJ21 straight connector, plug it into the appropriate RJ21
port as shown in
or, if using the RJ21 angle adapter
supplied with the device, insert the RJ21 angle adapter as shown in
. The RJ21 angle adapter allows the cables to be dressed
along the front of the device and easily attached to the strain-relief
bracket when using an RJ21 right-angled connector.

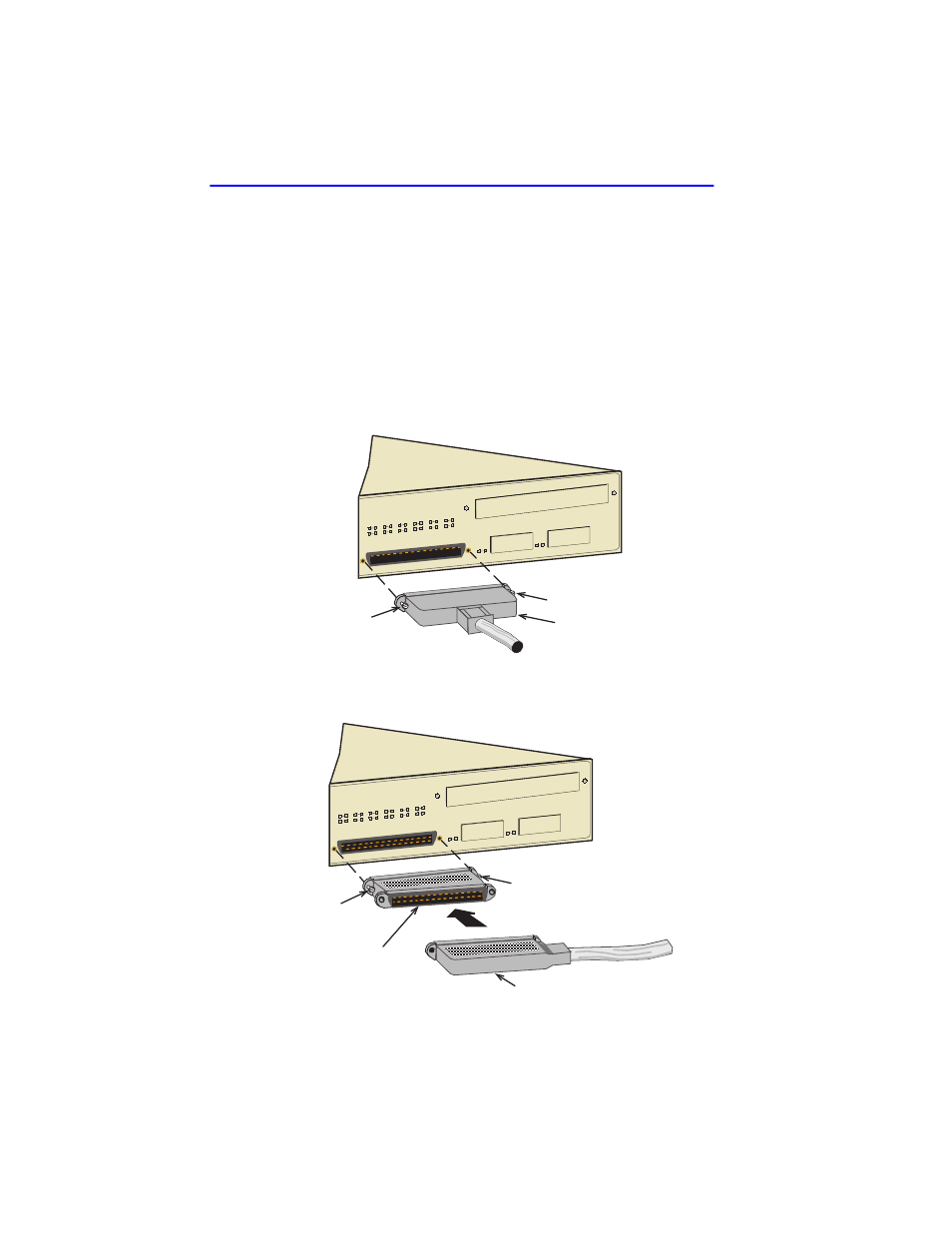

Figure 3-8
2E43-27 or 2E43-27R Straight Cable Connection
Figure 3-9
Connection Using the RJ21 Angle Adapter
1960-10
26
25
RJ21
Screw
Screw
13
14
15
16
17
18
19
20
21
22
23
24
1960-73
26
25
RJ21 Angle Adapter
13
14
15
16
17
18
19
20
21
22
23
24
Screw
Screw
RJ21Right-Angled
Connector
