CenterLine Setup
Width
The Guidance setup parameter Width is the distance between guidelines. This width is typically
the vehicle implement width or spread width. Setting this width slightly smaller than the actual
width reduces skips. Setting this width slightly larger than the actual width reduces overlap.
To adjust the Width setting, go to , scroll with Up or Down until is dis-
played, and press Enter. To increase the width press Up; to decrease the width press Down.
Press Enter when the desired width is set. The width value increments in 0.1 ft. intervals.
Antenna
The Antenna sub-menu defines the spatial relationship between the GPS antenna and the vehicle
implement or delivery point. The GPS antenna should always be mounted along the vehicle center
line (See Figure 16). The two Antenna menu settings are Direction and Distance.
To enter the Antenna sub-menu, go to , scroll until is displayed in the
text window, and press Enter. As mentioned, there are two settings under Antenna: TION> and . The text window should display . Use Up or Down to
move between the and settings. Press Enter when the desired set-
ting is in the text window.
Direction
The Direction setting is the direction from the GPS antenna to the swath or delivery point (See Fig-
ure 16).
To change the Direction setting, go to the Antenna sub-menu of Guidance setup, scroll until
is displayed in the text window, and press Enter. Using Up or Down scroll through
the direction pick list (See Figure 14) until the desired direction is displayed in the text window.
Press Enter to save the setting and return to the Guidance setup menu.

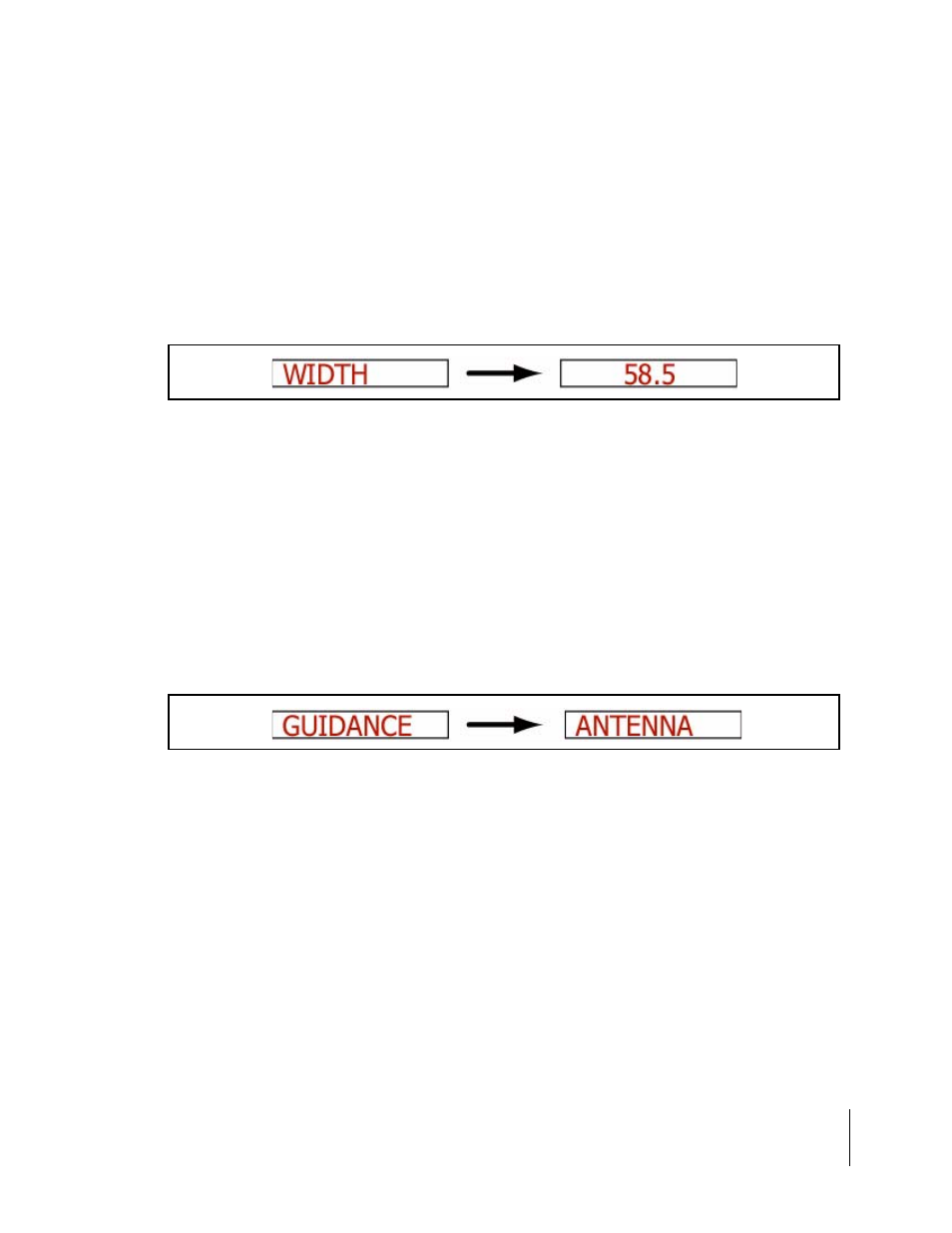

Figure 12: Setting the Guidance Width Value
Figure 13: Accessing the Antenna Sub-Menu
