1
744A Sprayer Control
CHAPTER 1 - INTRODUCTION
The 744A Sprayer Control provides manual spray
control in a compact package. The 744A allows for
the choice of liquid-filled 100 PSI (7 bar) or 300 PSI
(20 bar). The console features a lighted pressure
gauge for night use and heavy-duty switches with
LED indicators. The 744A is available in a variety of
kit forms using solenoid or ball type control valves.
TeeJet 744A manual Sprayer Control for use with
Solenoid or Ball Valves
• Manual spray controller in a compact package.
• Liquid filled 100 PSI or 300 PSI pressure
gauge.
• Lighted pressure gauge for night use.
• Heavy-duty switches with LED indicators.
• Available in a variety of kit forms using solenoid
or ball type control valves.
• DirectoValve shutoff ball valves are ordered
separately for 744A ball valve kits.
• Kits include wiring harness.

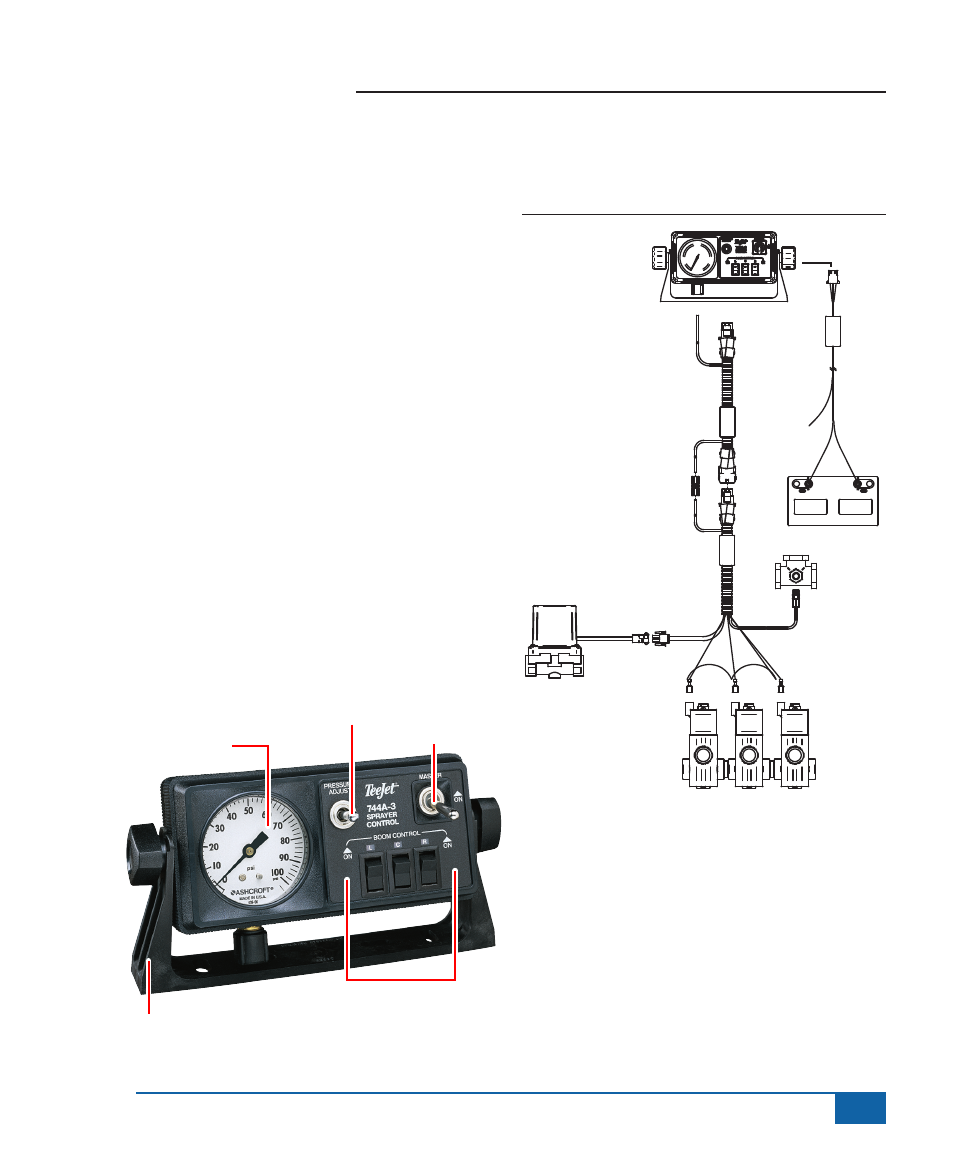

SYSTEM CONFIGURATIONS
Figure 1-1: Solenoid Valves
Pressure Gauge
Master Switch
Pressure Adjust Switch
Boom Control Switches
Mounting Bracket
21
72
0-
8
D C :X
X /X
X
45
-2
00
91
45
-2
00
90
D C :X
X /X
X
Te
eJet
214
78
- 2
xx/x
x
45 -20
10 0
45
-2
01
00
744A Console
Mounting Bracket
64-50023
Cable,
Power
45-20100
Battery
Cable, Extension:
8’ 45-20091
15’ 45-20079
Cable, End:
8’ 45-20090
15’ 45-20089
18’ 45-20088
Solenoid Valves
Valve,
Pressure
Regulating
35-50029
Fitting, Tee
67-20004
