Instruction Manual
23

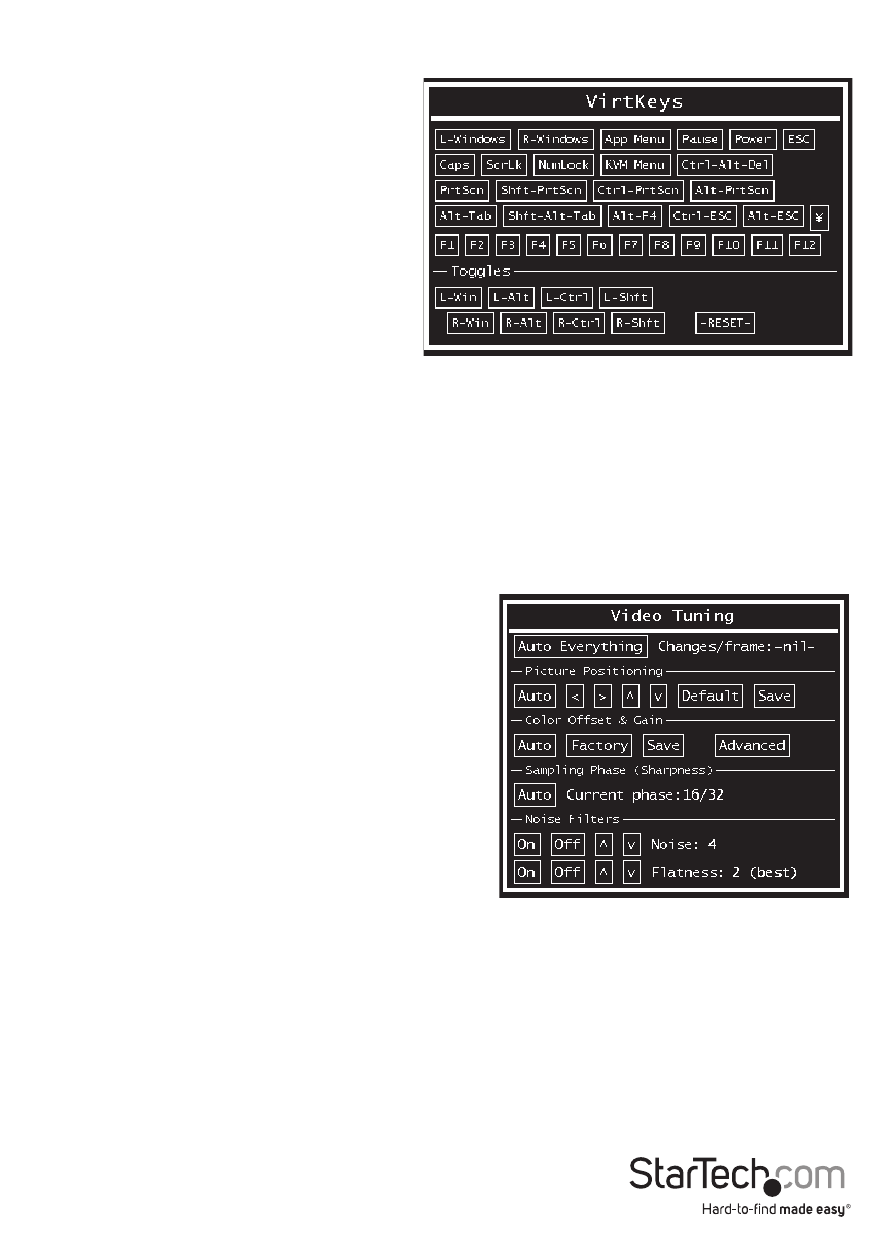

VirtKeys Menu
Clicking any button in the top half of
the window simulates pressing and
releasing the indicated key. In the
bottom area of the screen, clicking will
simulate the indicated Meta key being
pressed. You may then click in the top
part to send another key and release the
Meta key at the same time. Alternatively,
you may move the mouse outside this
window, press the regular key, and then
choose -RESET- to release all depressed
keys. The VirtKeys menu can be left open
while using the host system. You can then click the required button at the suitable
time, and still interact with the host in a normal fashion.
Examples:
• [Ctrl]-[Alt]-[F4]: Click L-Ctrl then L-Alt in the Toggles area. Then click F4.
• To bring up the Start menu under Windows: Click the L-Windows button at the
top left of the above window.
Video Tuning menu
Use the Auto Everything button to
automatically fine-tune all three adjustments.
If the test pattern for Color Offset calibration is
not present on the screen, then the Color Offset
adjustment is skipped.
Changes/frame indicates the number of 16x16
blocks of video that are being sent, on average,
for every frame of video. With a static image
being displayed by the server, this number will
be zero (shown as -nil-).
Moving the mouse, for example, will cause the number to jump to about 2 or 3. You
may use this number to judge the picture quality as you adjust the controls on this
menu.
Picture Positioning affects the image position on your screen. If you see a black
line on either side of your screen, or at the top or bottom, you can use the arrow
buttons to shift the image in that direction. Pressing Auto does the same thing for
you automatically. Use Save to save the changes you have made manually. Since this
adjustment depends on the video mode, separate values are stored for each video
mode.
