Slant/Fin VHS-180 User Manual
Page 24
V
ICTORY
II
VHS Models
24
WATER PIPING
Always follow good piping practices. Observe minimum 1" clearance to combustibles around all uninsulated hot water pipes or
when openings around pipes are not protected by non-combustible materials.On a hot water boiler installed above radiation
level, the boiler must be provided with a low water cutoff device at the time of installation by the installer. (see Figure 17 for
piping arrangement) For zoning and piping arrangement with indirect water heater, see figure 18 and 19.

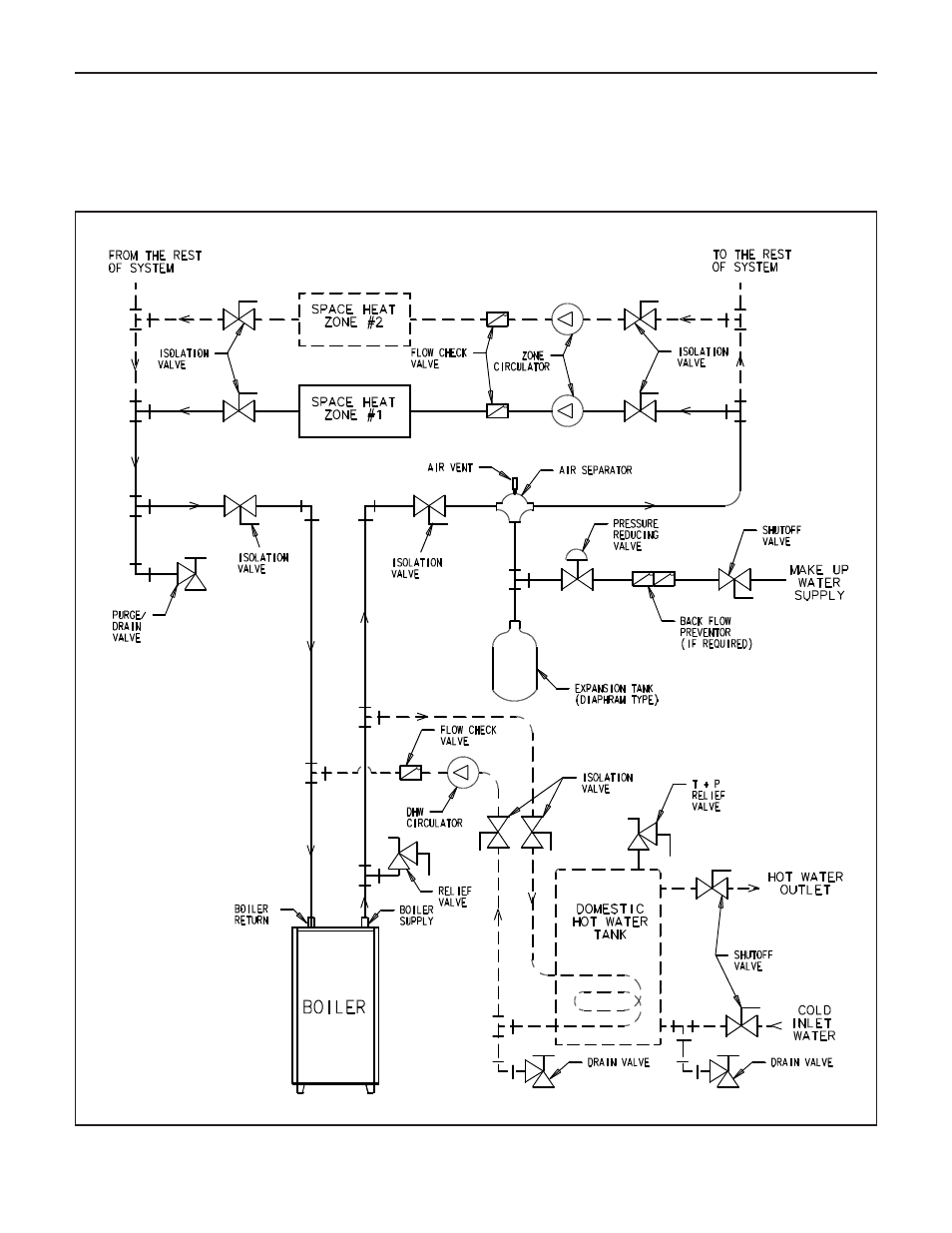

Figure 18. Zoning with circulators, optional indirect DHW tank
