VisorALARM PLUS 2U Controls and Indicators
II - 3
Doc.DM375-I
Ver. 1.0
LED RED GREEN
AUT
(Automation
software)
Automation
software failure
Receiver in manual
mode
Automation
software is running
Receiver in auto
mode
LED RED YELLOW GREEN
LAN1, LAN2
(Ethernet LANs)
Ethernet not
detected
Testing Ethernet detected
LED OFF RED GREEN
A
(SLOT1..SLOT3)
Expansion card
indicator
com1 not active Upload/download
communication in
progress through
com1
Upload/download
communication
established through
com1
LED OFF RED GREEN
B
(SLOT1..SLOT3)
Expansion card
indicator
com2 not active Upload/download
communication in
progress through
com2
Upload/download
communication
established through
com2

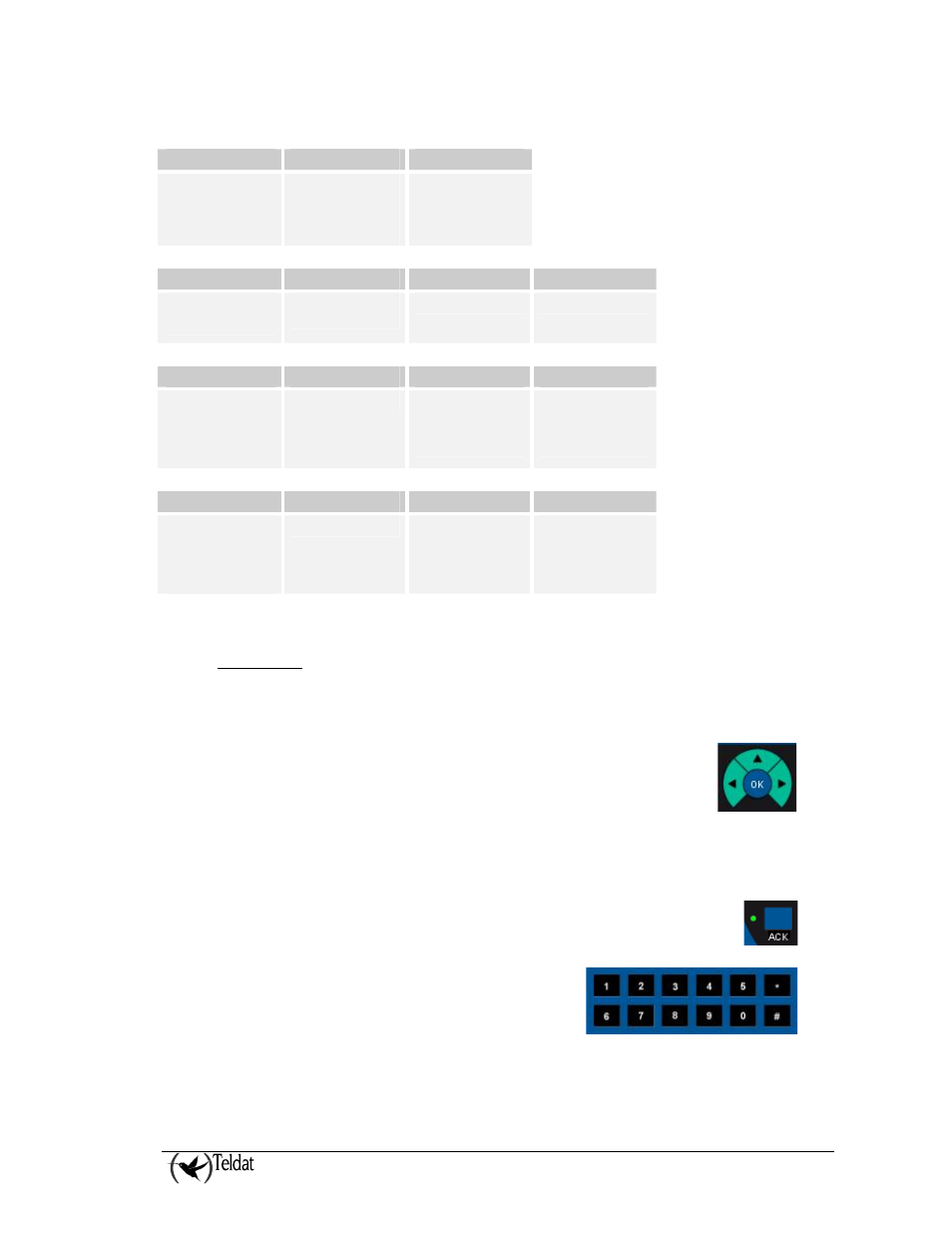

1.3. Keypad
The unit keypad includes 5 function keys and 12 additional alpha-numeric keys.
The function keys are:
§ „ key: This is used to select an alternate view of a signal or to go to the
next signal when navigating signal database.
§ ƒ key: This is used to select a primary view of a signal or to return to the
previous signal when navigating signal database. In addition, it is used as a
backspace when the user is introducing a password or account numbers.
§ • key: This is used to go to the previous menu in the receiver menu tree.
§ Enter key (OK)
§ Acknowledgement key
The alpha-numeric keys are:
§ Keys labeled 0 to 9
§ Key *
§ Key #
