30

SK-2 & SK-4 Series Manual — P/N 52604:B 9/14/2010

Installation

Installation of Optional Modules

4XLMF LED Interface Module (SK-4 only)

The 4XLMF supports the RZA-4XF Remote Annunciator module. The wiring of this module must
follow the requirements as specified in “Power-limited Wiring Requirements” on page 24.

Important: The 4XLMF module can only be installed on connectors J3 and J5 of the SK-4 main
circuit board.

4XLB

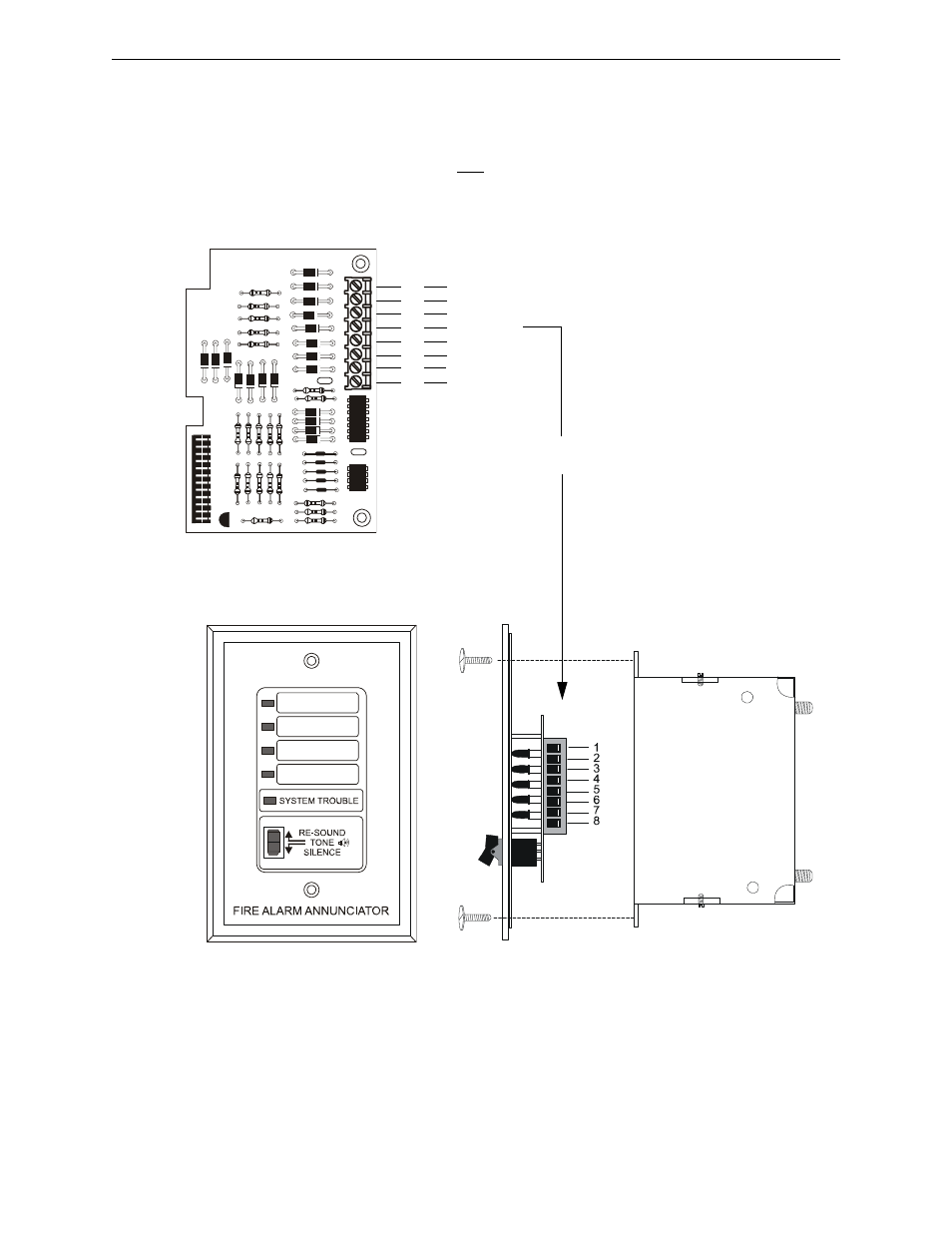

Figure 2.15 4XLMF LED Interface Module

Front View of RZA-4XF

Side View

Single-gang Box

4XLMF Module

Note: Make wiring connections with system
power off. Maximum wire impedance is
50 ohms per wiring connection.

+24 VDC
Out #1
Out #2
Out #3
Out #4
System Trouble
Sound
Resound

1
2
3
4
5
6
7
8

Connect to corresponding terminals of

RZA-4XF Remote Annunciator

4x

lm

a.

wmf

rz

a-

4x

f.

w

mf

rza-

4xb

x.

w

mf
