7
1. Assembling, taking down

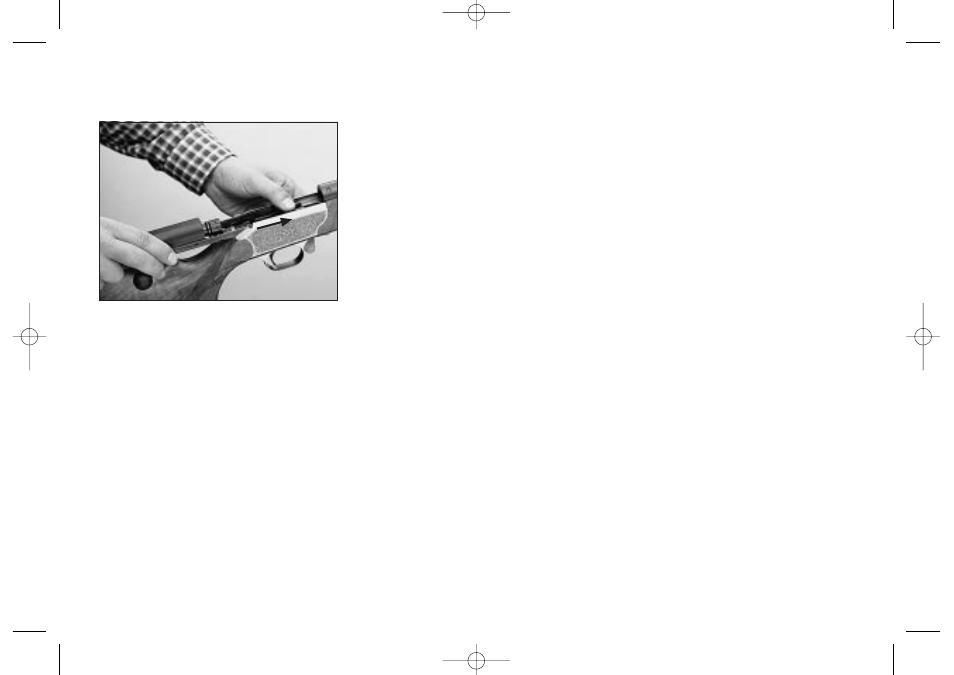

fig. 4
- Push the magazine down to the
bottom of the receiver - with your
thumb - and hold! (fig. 4).
- Place both bolt rails parallel on the rear
end of the receiver and insert the bolt
by sliding the bolt rails forward. Push
forward on the bolt handle until the
bolt is closed completely.
- To remove the bolt, magazine
and barrel read chapter 6 and 7 of
instructions.
WARNING:
Always make sure the bolt handle is
locked in the back position when instal-
ling the bolt assembly, i.e. at an angle of
approx. 45°. If the bolt handle is close to
vertical, you cannot mount the bolt
assembly. Pull the bolt handle back until
it engages in the 45° position.
WARNING:
When assembling the rifle, ensure that
the barrel, bolt and magazine all match
and are of the correct caliber.
1.2 Taking down
- Push the safety slide forward slightly
with the thumb (approx. 1/16“),
simultaneously pulling the bolt handle
back with forefinger and middle finger
(unlocking - fig. 9).
Then pull the bolt all the way straight
back.
- Unload the rifle (see chapter 5).
- Push down and hold the bolt stop pin
(fig. 10) simultaneously withdrawing
the bolt assembly with the other hand.
- With the 4 mm AF allen key supplied,
undo the two barrel attachment
screws.
- Remove the barrel.
