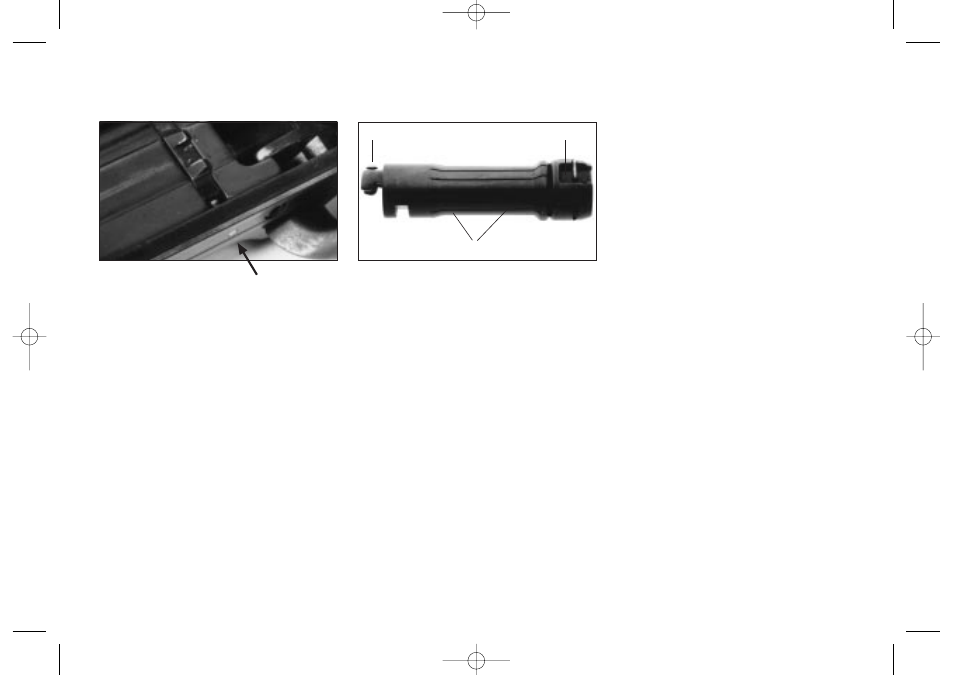

fig. 18 fig. 19
The bolt assembly can only be inserted
in the receiver when the warning pin
is flush in the bolt rail (fig. 18), indica-
ting that the retaining latch is seated
correctly.
Note: Bolt heads for left-hand bolts are
stamped »L« below the caliber group
marking.
Warning:
The bolt head assembly consists of two
major parts: The bolt head and the sur-
rounding expanding shell.
These two parts are bound together by
a rivet (fig. 19). It is strictly forbidden to
loosen that rivet!
Firing the rifle with the expanding shell
removed, will inevitably cause the blow-
out of the bolt head assembly and injury
or death to the shooter or bystanders!
15
8. Changing the bolt head
rivet
expanding shell
bolt head
