9. Removing /
changing the fore-end
The Safari and Match versions of the
Blaser R 93 repeating rifle have a special,
wide fore-end. Therefore, should you
wish to fit a Safari or Match barrel to the
R 93 basic version, you will have to chan-
ge the fore-end.

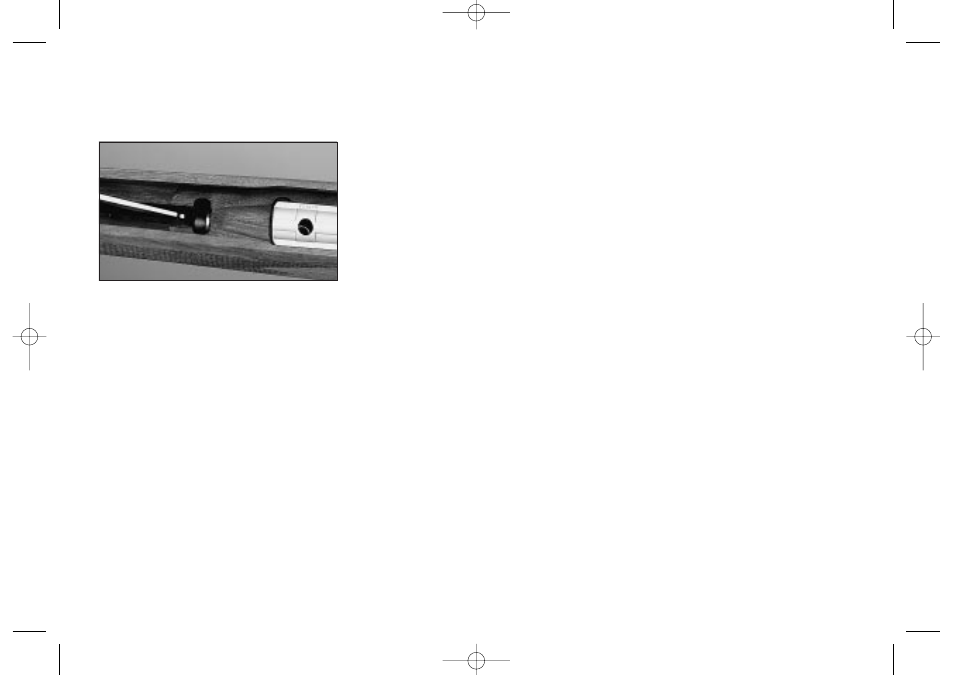

fig. 20
Removing or changing the fore-end:
- Unload rifle (as in chapter 5).
- Use allen key (SW4) to unscrew the two
barrel attachment screws holding barrel
and receiver together.
- Lift off the barrel.
- Using the long allen key (SW4) to
unscrew fore-end screw (fig. 20).
- Pull the fore-end off.
- To assemble the fore-end reverse above
instructions.
- Ensure that the spacer is in the correct
position.
