Operation
10
Operation
Control Panel Interface

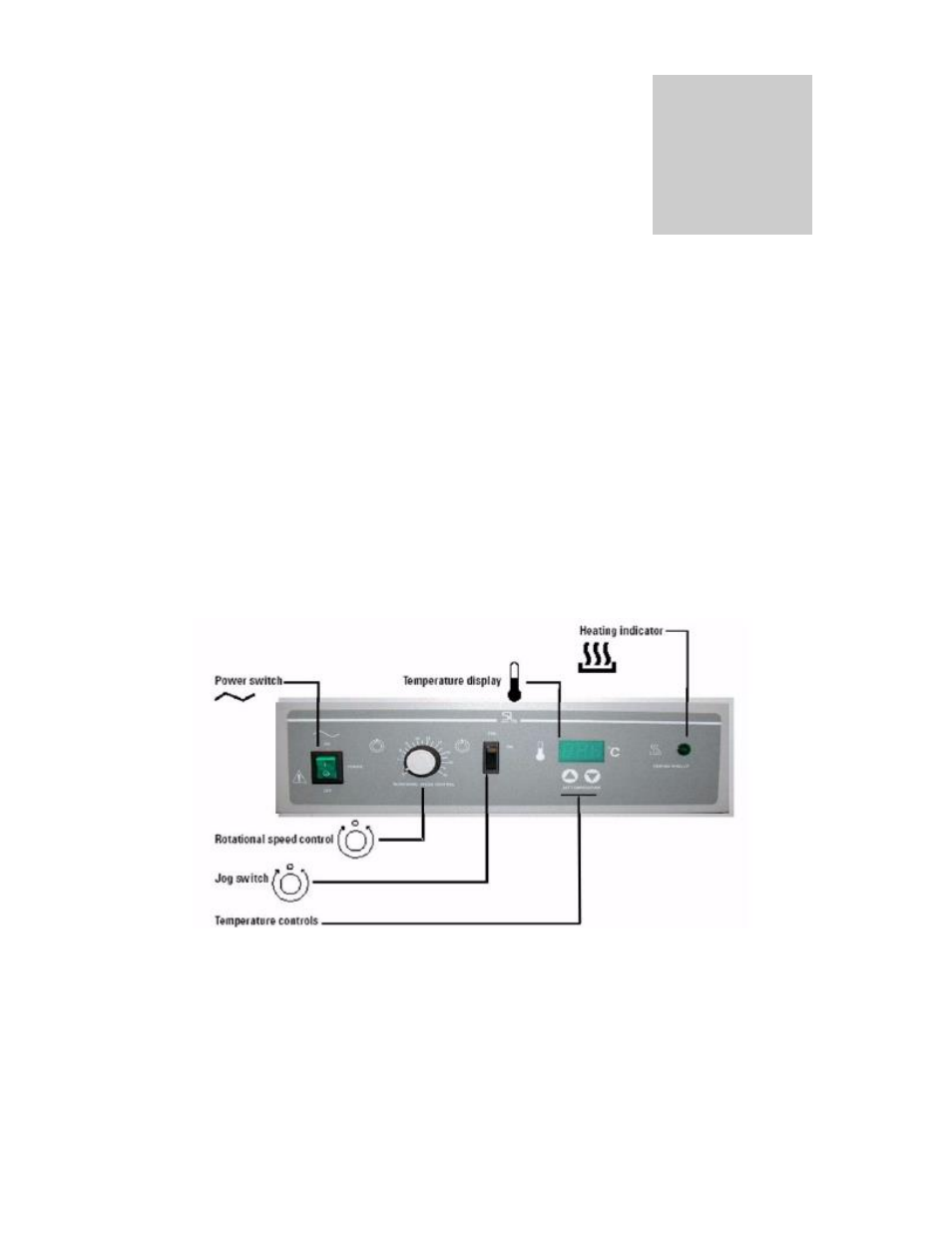

The 1013 Hybridization Oven is operated using the control panel interface (see Figure
6), which is located on the front of the oven.
Rotational speed control Use to set the rotator speed from 2 to 20 rpm. Turning the
knob clockwise increases the rotator speed. Set to 0 (zero) to turn off the rotator.
Heating indicator Lights continuously when the oven is heating. Blinks when the oven
is at or near its set point.
Temperature display Displays the current oven temperature in degrees centigrade
(°C).
Temperature controls Use the up and down arrow keys to adjust the oven
temperature set point.
JOG switch Press and hold ON to turn the rotator, for example, when loading the oven.
When released, the rotator stops. The rotational speed control knob cannot be set at
zero for the JOG switch to operate properly.
Section 3
