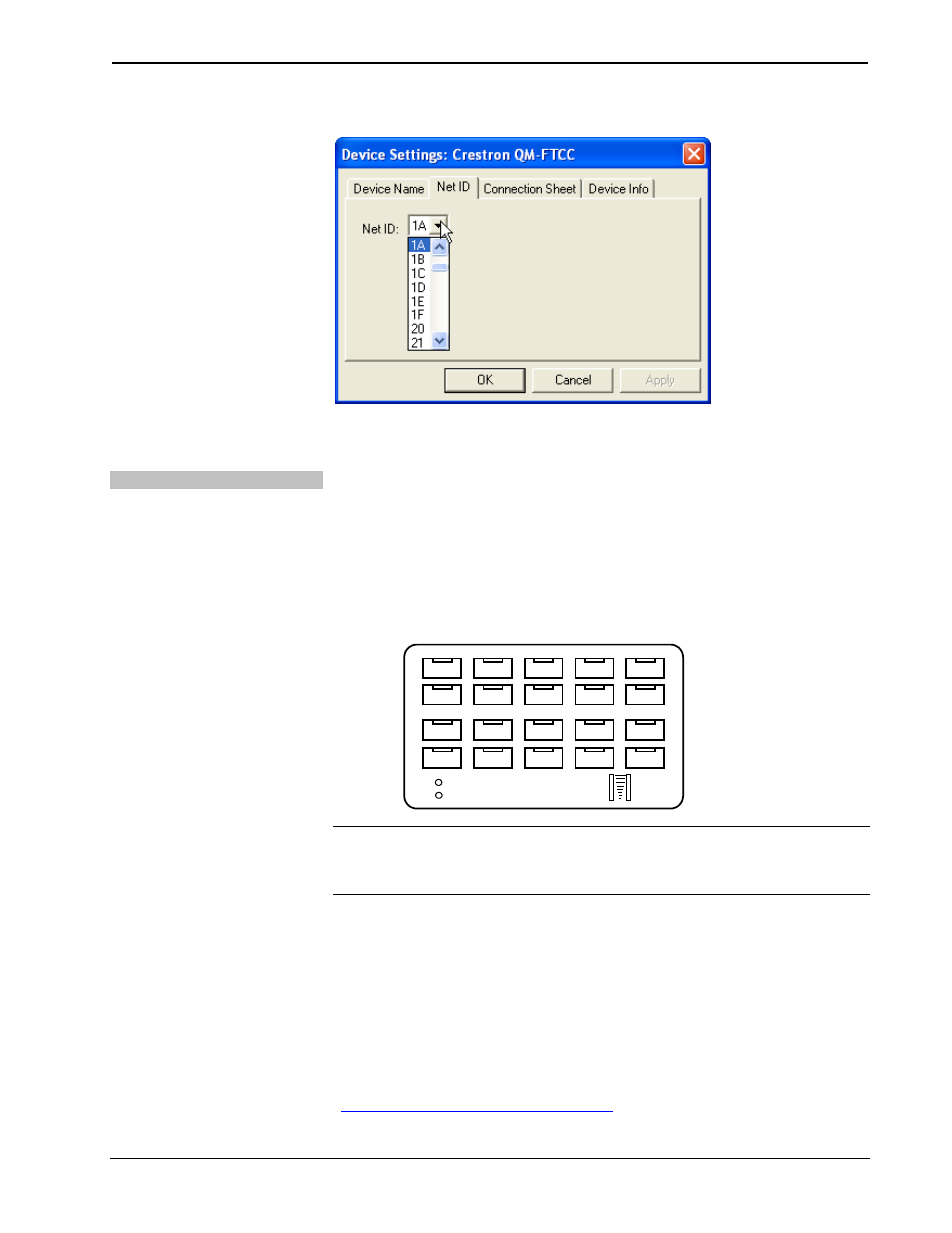

“QM-FTCC Device Settings” Window

• The ID code specified in the SIMPL Windows program must match the Net

ID of each unit. Refer to “Identity Code” on page 16.

Program Manager

Program Manager is the view where programmers “program” a Crestron control

system by assigning signals to symbols.

The symbol can be viewed by double clicking on the icon or dragging it into Detail
View
. Each signal in the symbol is described in the SIMPL Windows help file (F1).

The buttons module is built into slot 03 of the QM-FTCC (refer to “C2Net Device,
Slot 9” on page 26). It consists of a keypad that provides 10 to 20 buttons with LED
indicators, and two bar graphs. The button presses are fixed and map to
outputs on the symbol detail, as follows:

Row 1
Row 2

Row 3
Row 4

PWR
NET

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

NOTE: Numbers in this illustration are for programming purposes only.

NOTE: Not applicable to NB models.

The buttons on rows 1 and 2 can be combined vertically to form one larger button.
For example, the button caps for buttons #1 and #6 can be replaced with one larger
button cap. Similarly, the vertical pairs on rows 3 and 4 can be combined to form one
larger button. For example, buttons #13 and #18 can be combined. No other
combinations are valid. That is, two buttons cannot be combined horizontally; the
buttons on rows 2 and 3 cannot be combined.

Example Program

An example program for the QM-FTCC is available from the Crestron website
(

http://www.crestron.com/exampleprograms

).

Operations & Installation Guide – DOC. 6313B

QuickMedia™ FlipTop Computer Center: QM-FTCC
