Crestron QM-FTCC QuickMedia™ FlipTop Computer Center
Hardware Hookup
Connect the Device Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 15 before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the QM-FTCC, consider the following:
• Use Crestron power supplies for Crestron equipment.
• The included cable (domestic units only) cannot be extended.

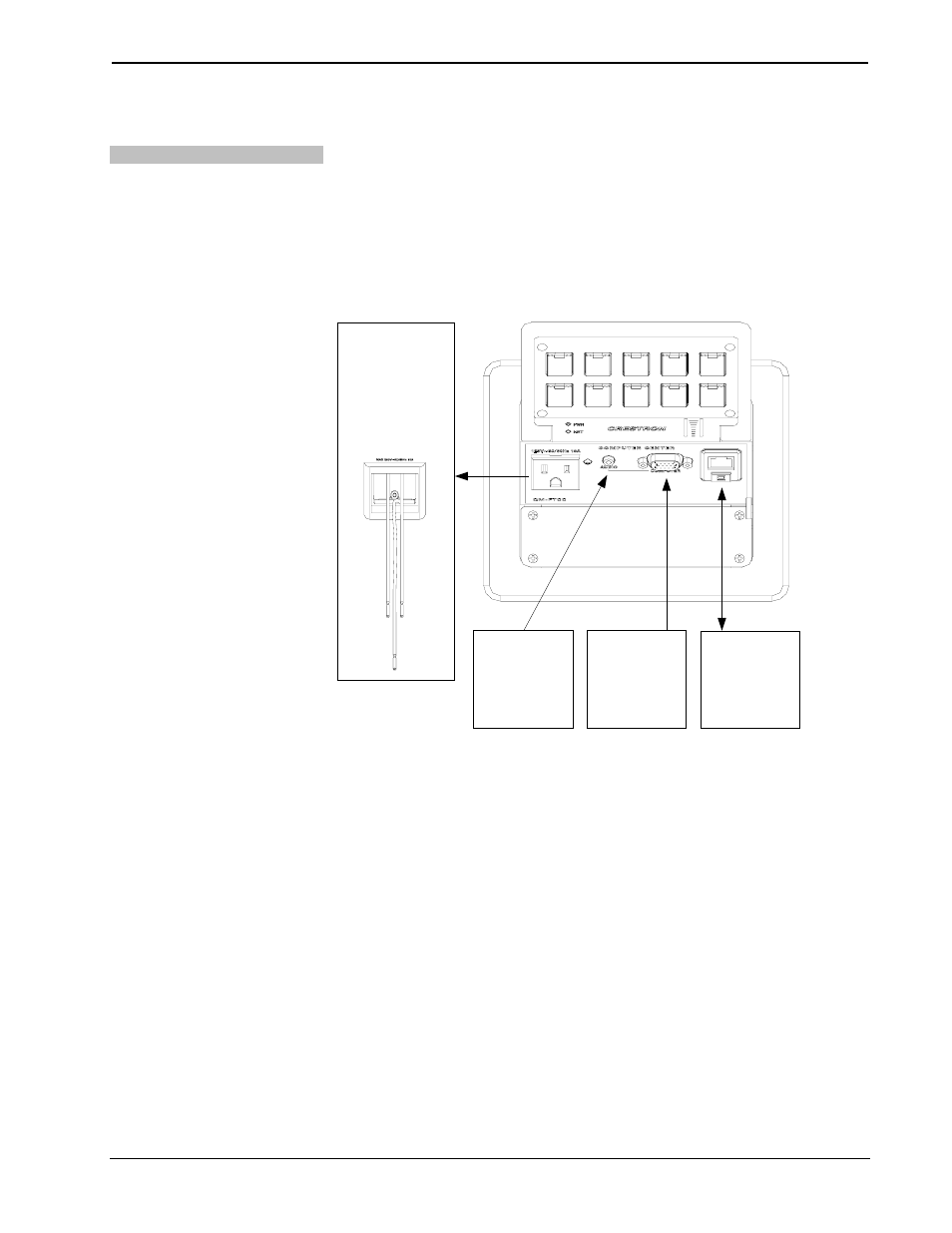

Hardware Connections for the QM-FTCC (Top)
ETHERNET
PASS
THROUGH:
10/100BaseT
ETHERNET
TO LAN
GROUNDED AC
SOCKET
(DOMESTIC
MODELS)
(INTERNATIONAL
MODELS)
AUDIO:
FROM
UNBALANCED
STEREO LINE
LEVEL
SOURCES
COMPUTER:
FROM RGB/
COMPONENT
VIDEO
SOURCES
Operations & Installation Guide – DOC. 6313B QuickMedia™ FlipTop Computer Center: QM-FTCC • 23
