4. Snap the bushings into the plate slots.
5. Feed all the excess cable through the opening.
6. Attach the plate using the four #4 x ¼ LG black mounting screws retained
in step 1 (use the four #4 x ¼ screws included with the QMI-FTCMK).
7. Connect the cables to the appropriate connector on the front of the
QM-FTCC.
8. The cables may be secured to the bottom bar using the supplied tie wraps.

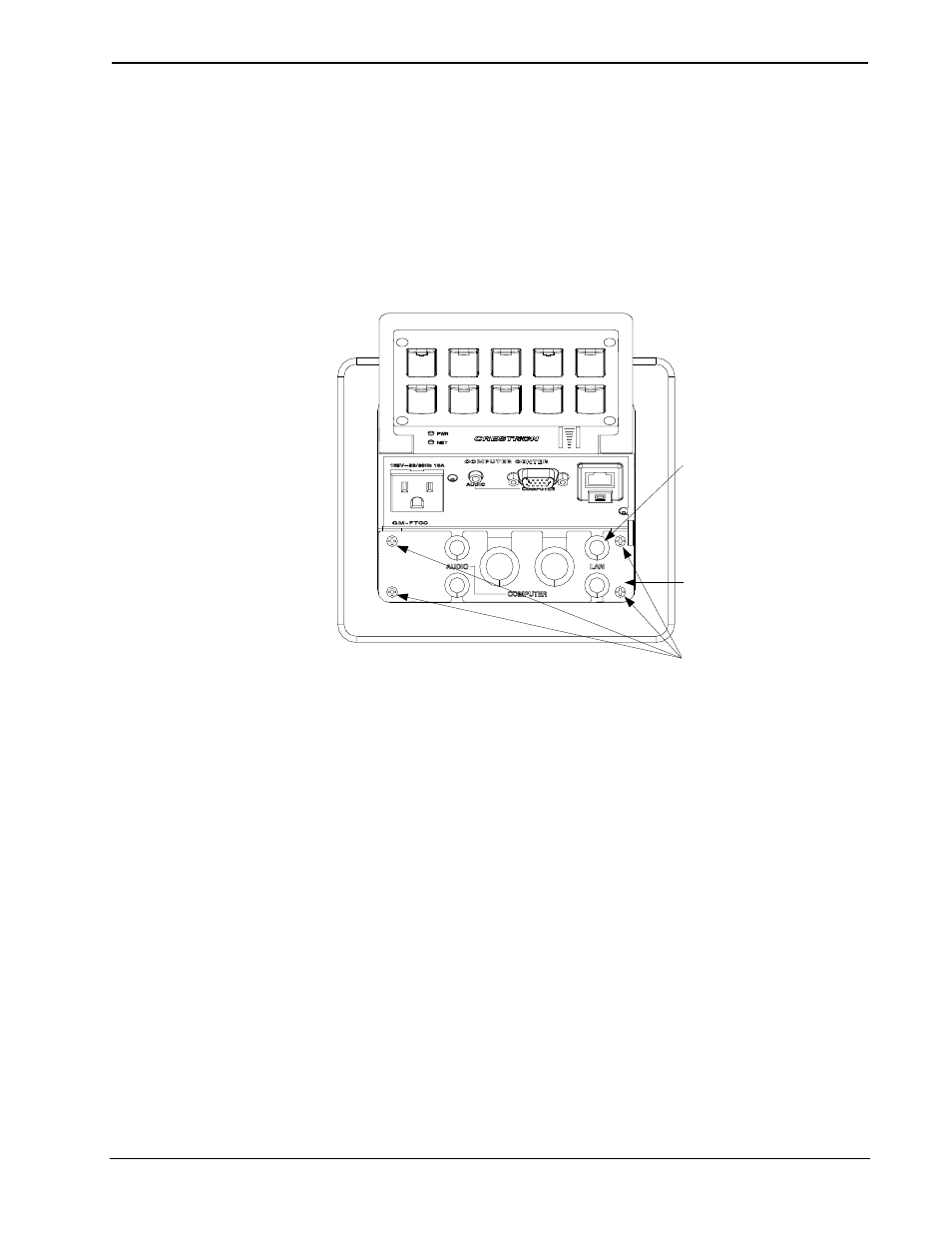

Cable Mounting Plate Installation
(4) #4 x 1/4 LG Black Screws
Bushings
Cable Support Plate
