QuickMedia™ FlipTop Computer Center Crestron QM-FTCC

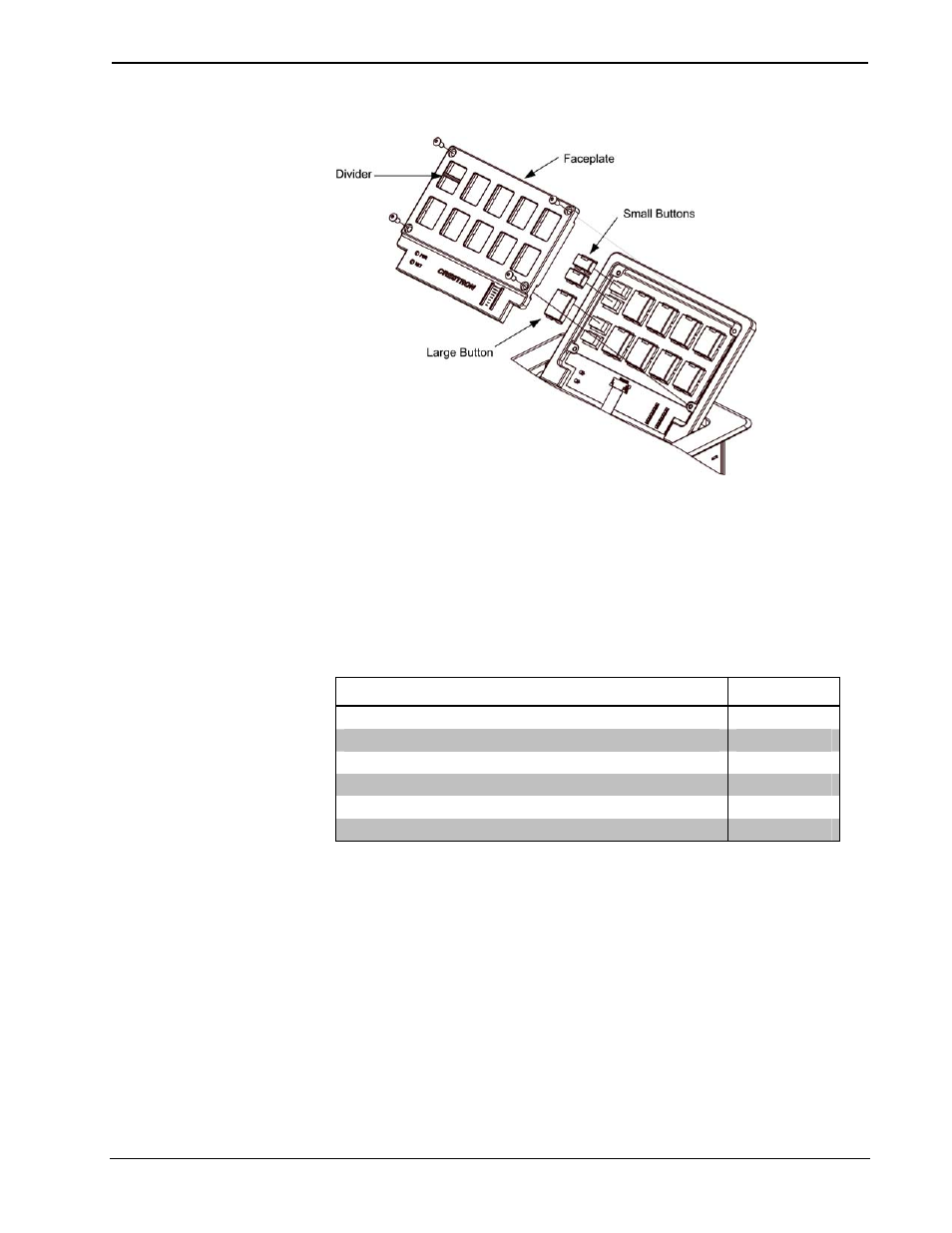

Button Installation
Cable Management Plate
The QM-FTCC is shipped with a blank bottom plate. A cable management plate is
available to provide a pullout cable solution for the computer input and LAN pass
through cables. The kit contains two 6-foot cables (computer and computer audio).
• Order the QM-FTCMK Cable Management Kit for domestic models.
• Order the QMI-FTCMK Cable Management Kit for international models.
Parts Supplied with Optional Cable Management Kit
PART DESCRIPTION QUANTITY
Small Cable Bushing, 5/16 inch ID, 0.5 inch OD 4
Large cable Bushing, 0.55 inch ID, 0.80 inch OD 2
Cable Support Plate 1
Tie Wrap 3
Computer RGB Cable, VGA to VGA, 6 ft long 1
Computer Audio Cable, 3.5 mm Stereo, 6 ft long 1
Tools required:
• Phillips screwdriver
• Small flat-blade screwdriver (for connecting the VGA cable)
The cable support plate must be installed before mounting the QM-FTCC to a
surface. The cables are looped through the cable support plate.
1. Remove the blank bottom plate and retain the four #4 x ¼ LG black
mounting screws (the QMI-FTCMK includes four #4 x ¼ screws).
2. Place the bushings on the cables (six bushings supplied). Use the large
bushing for the VGA cable.
3. Thread the cables through the appropriate slot on the plate.
18 • QuickMedia™ FlipTop Computer Center: QM-FTCC Operations & Installation Guide – DOC. 6313B
