QuickMedia™ FlipTop Computer Center
Crestron QM-FTCC

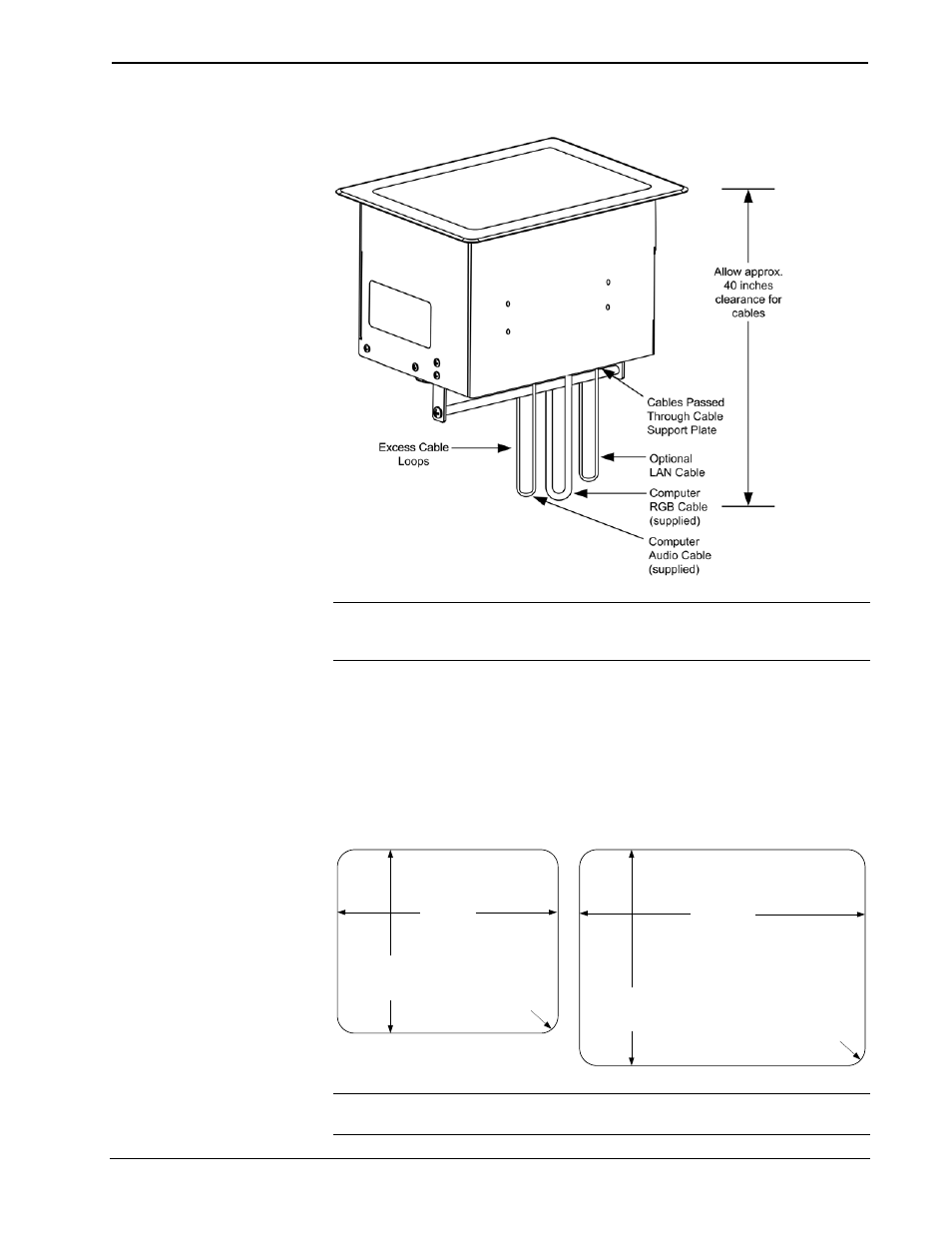

Cable Loops Through the Cable Plate
NOTE: Ensure that the cables have sufficient clearance to enable smooth
movement. Allow approximately 40 inches (102 cm) from the top surface of the
FlipTop box.
Mounting to Surface
The QM-FTCC is designed to mount in a horizontal surface, such as a desk top,
lectern or podium. The following diagram illustrates the required opening size to
accommodate the QM-FTCC. A cutout template (40071 or 40073) is included.
Cutout Dimensions
QM-FTCC (40071)
QMI-FTCC (40073)
5 5/16 in
(135 mm)
Maximum
Radius
1/8 in
(4 mm)
6 3/8 in
(162 mm)
8 1/8 in
(206 mm)
6 1/4 in
(159 mm)
Maximum
Radius
1/8 in
(4 mm)
NOTE: Before inserting the QM-FTCC in the mounting hole, ensure that all
required cables have been installed.
20
• QuickMedia™ FlipTop Computer Center: QM-FTCC
Operations & Installation Guide – DOC. 6313B
