SeaLand VacuFlush Vacuum Tank User Manual
Installation and assembly instructions
Dometic Corporation - Sanitation Systems
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611-0038 USA
Telephone: 330-496-3211
Fax: 330-496-3097
Email: [email protected]
P/N: 600346253
REV.: 06/12

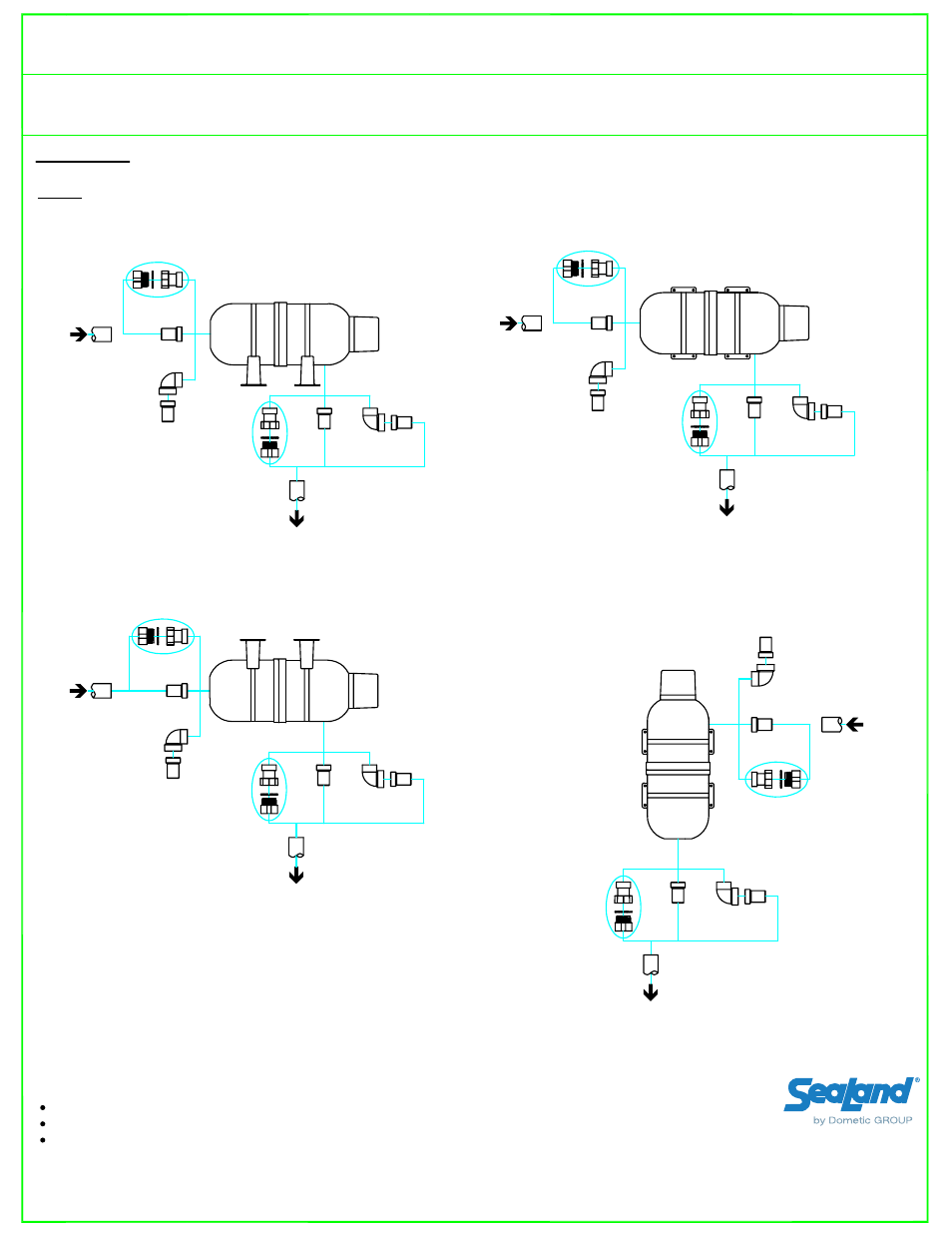

TYPICAL VERTICAL WALL MOUNT
TYPICAL HORIZONTAL WALL MOUNT
FROM
TOILET
TYPICAL SUSPENDED MOUNT
TYPICAL FLOOR/DECK MOUNT
FROM
TOILET
FROM
TOILET
FROM
TOILET
INSTALLATION AND ASSEMBLY INSTRUCTIONS.
OUT TO
VACUUM
PUMP
OUT TO
VACUUM
PUMP
OUT TO
VACUUM
PUMP
OUT TO
VACUUM
PUMP
USE PVC PRIMER ON ALL SOLVENT WELD JOINTS PRIOR TO SOLVENT WELDING.
USE PVC CEMENT WITH TETRAHYDROFURAN FOR SOLVENT WELD JOINTS.
FOLLOW INSTRUCTIONS ON PVC PRIMER AND PVC CEMENT FOR MAXIMUM ADHESION
AND SAFETY.
IMPORTANT:
THE OUTLET PORT ON THE VACUUM TANK
MUST BE AT THE BOTTOM. (LOWEST POINT)
BEFORE INSTALLING VACUUM TANK
1. Select location that allows removal of vacuum switch for access inside tank when needed.
2. Outlet of tank must be at bottom in both vertical and horizontal installations.
3. Vacuum tank must be installed between VacuFlush toilet and vacuum pump.
4. Do not install vacuum tank more than 6 ft./1.8 m above toilet outlet.
5. Refer to vacuum system wiring diagram provided on the parts list for the vacuum toilet,
vacuum pump, or vacuum status panel for wiring information.
