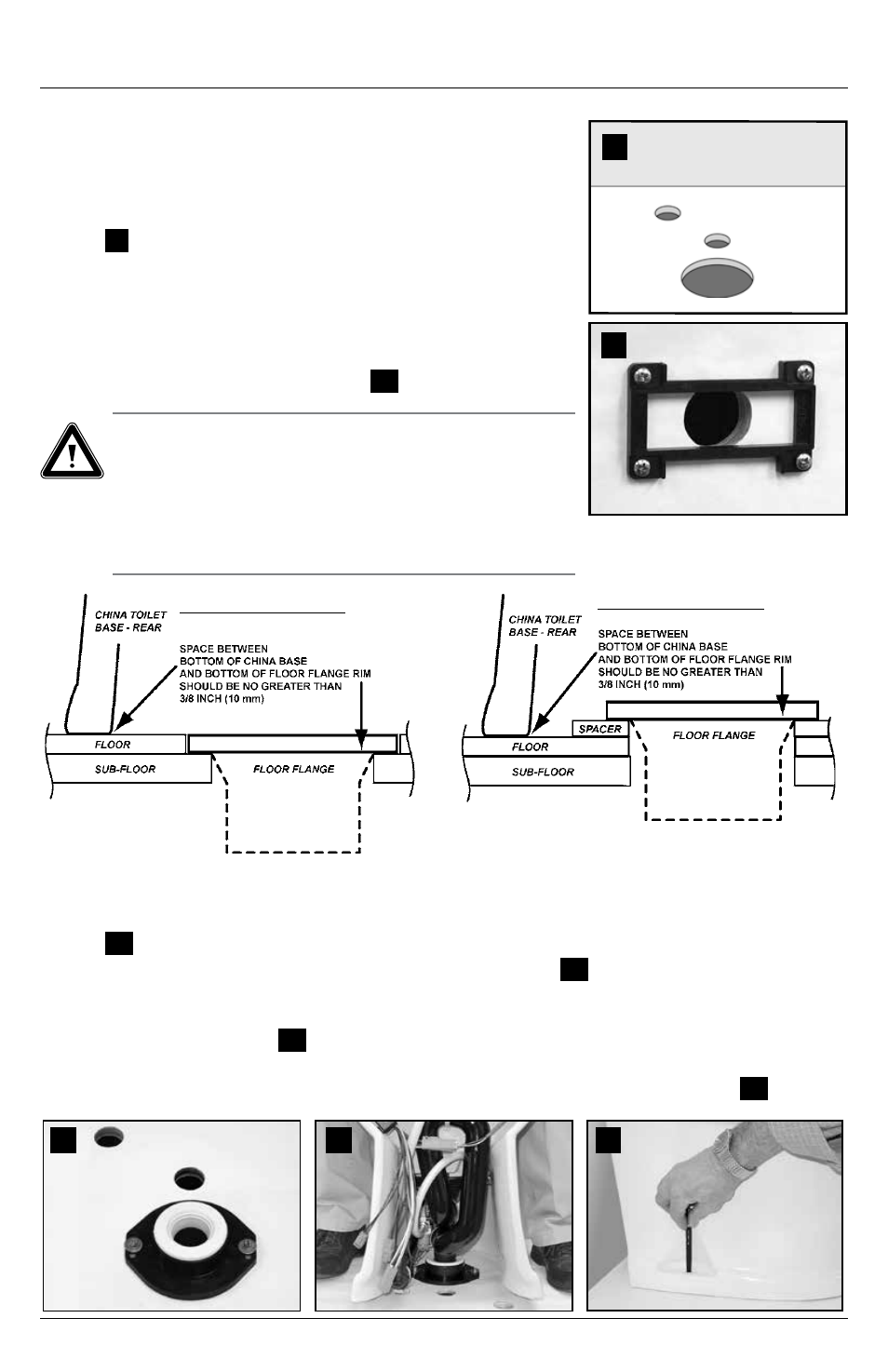

9

7 . Make a 4-1/4 in . (108 mm) diameter hole at the primary

centerline intersection furthest from the wall . Make a 1-1/2 in .
(38 mm) diameter hole at the mark closer to the wall for the
upper rim water line and electrical wires, and at the mark on
the secondary centerline for the lower bowl water supply line
(fig .

9

) .

8 . (9400 series toilet only) Plan flush switch panel location on a

wall so that electrical connections can be made with cables
provided . Be sure panel and wires cannot get wet .

9 . (9400 series toilet only) Use Dometic wall switch template to

mark location of fastener and access holes . Drill 1 in . dia . hole,
then fasten panel bracket to wall (fig .

10

) .

Caution
Preferrably, the discharge floor flange should be installed
directly on the finished floor . However, if the bottom
of floor flange and bottom of ceramic toilet must be
mounted at different heights, the floor flange must be
mounted within 3/8 in . (10 mm) of the bottom of the toilet
(see illustrations below) or leakage may result .

Below-Floor Installation

Above-Floor Installation

10 . Insert discharge floor flange into largest hole, orient slots front-to-back, and secure to the floor

with #14 x 1-1/2 in . screws and washers provided . If desired, allow screws to be slightly loose
for front-to-back bowl positioning adjustment . 1/2 in . of front-to-back adjustment is available
(fig .

11

) .

11 . Install sealing grommet into top of discharge floor flange (fig .

11

) and lubricate inside diameter

of sealing grommet hole with dishwashing soap .

12 . While keeping toilet level, carefully lower toilet to the floor so that toilet discharge outlet inserts

into sealing grommet (fig .

12

) . Make sure bottom of ceramic toilet sets flat on floor .

13 . Slide toilet front-to-back until desired bowl location is achieved (near to or against back wall) .

Make toilet bowl straight with back wall and mark holes for two mounting bolts (fig .

13

) .

SeaLand 9300-9400 Series RushFlush Toilets

Installation

10

9

11

12

13
