SeaLand TankWatch 1 Level Monitoring System - Manual (Page 2)

6
5
7

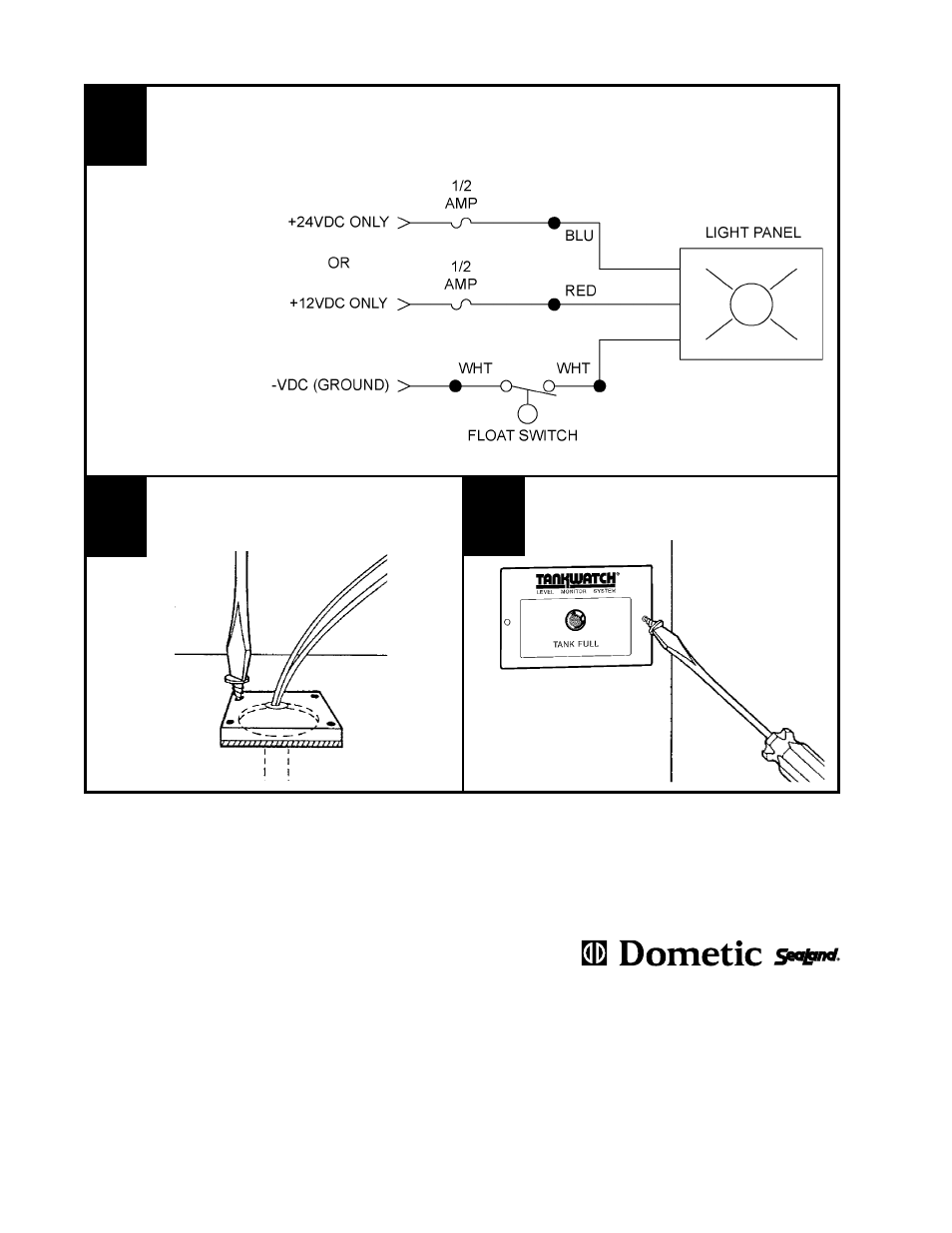

A. For a 12V system:
Connect the red wire
through a 1/2-amp fuse
(not supplied), to a
positive 12VDC source.
For a 24V system:
Connect the blue wire
through a 1/2-amp fuse
(not supplied), to a
positive 24VDC source.
B. Connect the white wire
from the red LED to one
of the white wires on the
Float Switch Assembly.
C. Connect the remaining
white wire from the Float
Switch Assembly to the
negative DC source.
Place the Switch Assembly into the tank with the
gasket in place. Drive four No. 8 x 3/4” mounting
screws, using care to tighten evenly. DO NOT
OVER-TIGHTEN.
Mount the Indicator Assembly. Fasten with the
two No.4 x 1/2” screws provided.
600340507 3/07
Following the wiring diagram, route wires on a 12VDC
or 24VDC circuit using good electrical practice.
SPECIFICATIONS MODEL INFORMATION
Part Number Description
313000312 TankWatch 1 Panel, Float Assembly
Average Current Consumption: 0.016 amps
Dometic Sanitation Corporation
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611-0038 USA
330-496-3211
1-800-321-9886 • Fax: 330-496-3097
® Registered; ™ Trademark of Dometic Corporation
© Dometic Corporation
