SeaLand S Series Vacuum Pump - Manual (Page 2)

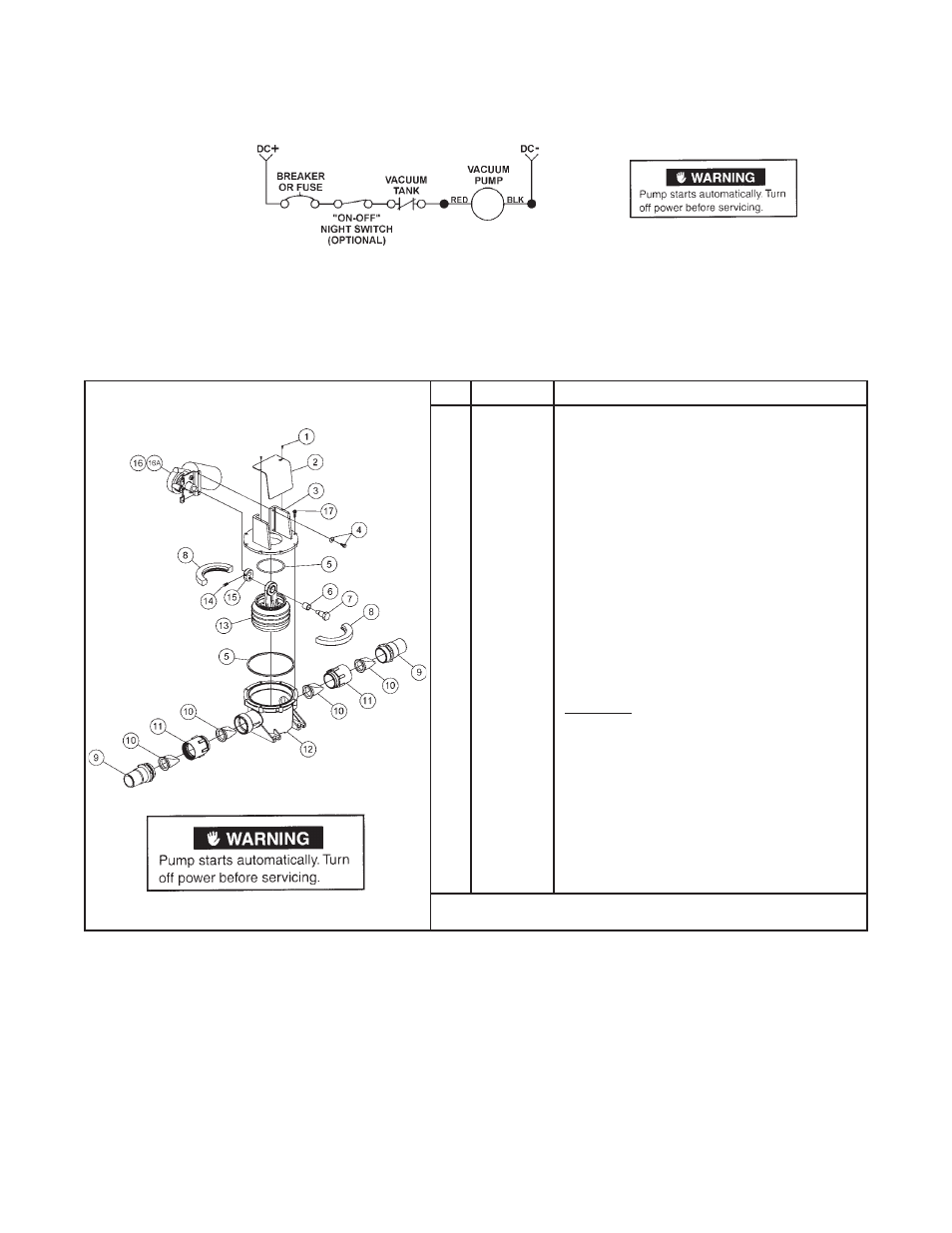

Wire the S-Pump as shown in the wiring diagram. Use multistranded copper wire. Protect the wiring by installing
grommets or other protective device at holes and sharp edges. Proper fuse or circuit breaker size is extremely
important for pump and wire protection. Overfusing this pump will result in warranty invalidation.
Dometic Corporation manufactures a complete line of sanitation products and systems. Write or call
the factory to receive free literature on the following products:
341652 10/05
Item Part No. Description
*Note: When reassembling pump, tighten screws to 20±2lbs., or until
snug. Over-tightening will cause holes to strip.
S-Series Vacuum Pump
All voltages of S-Series vacuum pumps are wired in the same manner. The differences are in the required wire and fuse/
breaker sizes. Run appropriate size wire from power source to vacuum switch (located on end of vacuum tank under white
end cover) and attach to a “B” terminal. Run a wire from the other “B” terminal to red power wire on vacuum pump. Run a wire
from the black pump wire to a grounding terminal or buss bar.
Note: Do not overfuse the vacuum pump. To protect the motor, use only the fuse capacities shown on chart (see reverse
side). Overfusing will void the pump warranty.
Electrical schematic also shows installation of optional “night switch”.
· VacuFlush ® Toilet Systems
· SaniPottie ® Portable Toilets
· SeaLand ® brand Liquid and Dry Deodorant Products
· SeaLand ® Environment-Friendly Holding Tank
Deodorant
· SeaLand ® brand Marine Toilet Tissue
· SeaLand ® Toilet Bowl Cleaner
· SeaLand ® Holding Tank Systems
· SeaLand ® Holding Tank Vent Filter
· OdorSafe ® Plus Sanitation Hose and Fittings
· TankWatch ® Holding Tank Level Monitors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16A
17
18
600340237
385311314
600341506
600342332
385310151
600340664
600343006
600347807
600347800
385347802
600347801
600341504
385230980
600347788
600344470
385310245
385310246
600341503
385310249
Cover Screw, #4 x 3/8” Pan Hd SS
Pump Cover
Top Closure
Hex Head Screw, #10-32 x ½” SS
O-Ring Replacement Kit
Bushing, Bellows
Hex Head Shoulder Screw, ½” x .687 x 3/8”-16
Bellows Clamp
Valve Nipple
1½” Duckbill Valve (2)
Valve Adapter
Pump Body
Bellows Assembly (incl. item 6)
Set Screw, ¼ -28 x 5/16”, ½” Dog Point
Eccentric
Motor, 12VDC
Motor, 24VDC
Hex Washer Head Screw #10-12 x 7/8”, SS
Not Shown
Pump Assembly Less Motor
(Includes items 3, 5, 6, 8 through 13)
