Software Controlled STORE/RECALL Cycle
The software controlled STORE/RECALL cycle follows.
[11, 12]
Parameter Alt Description
35 ns
Unit
Min Max
t
RC
t
AVAV
STORE/RECALL Initiation Cycle Time 35 ns
t
SA
[11] t
AVEL
Address Setup Time 0 ns
t
CW
[11]
t
ELEH
Clock Pulse Width 25 ns
t
HACE
[7, 11]
t
ELAX
Address Hold Time 20 ns
t
RECALL
RECALL Duration 20
μs
Switching Waveforms

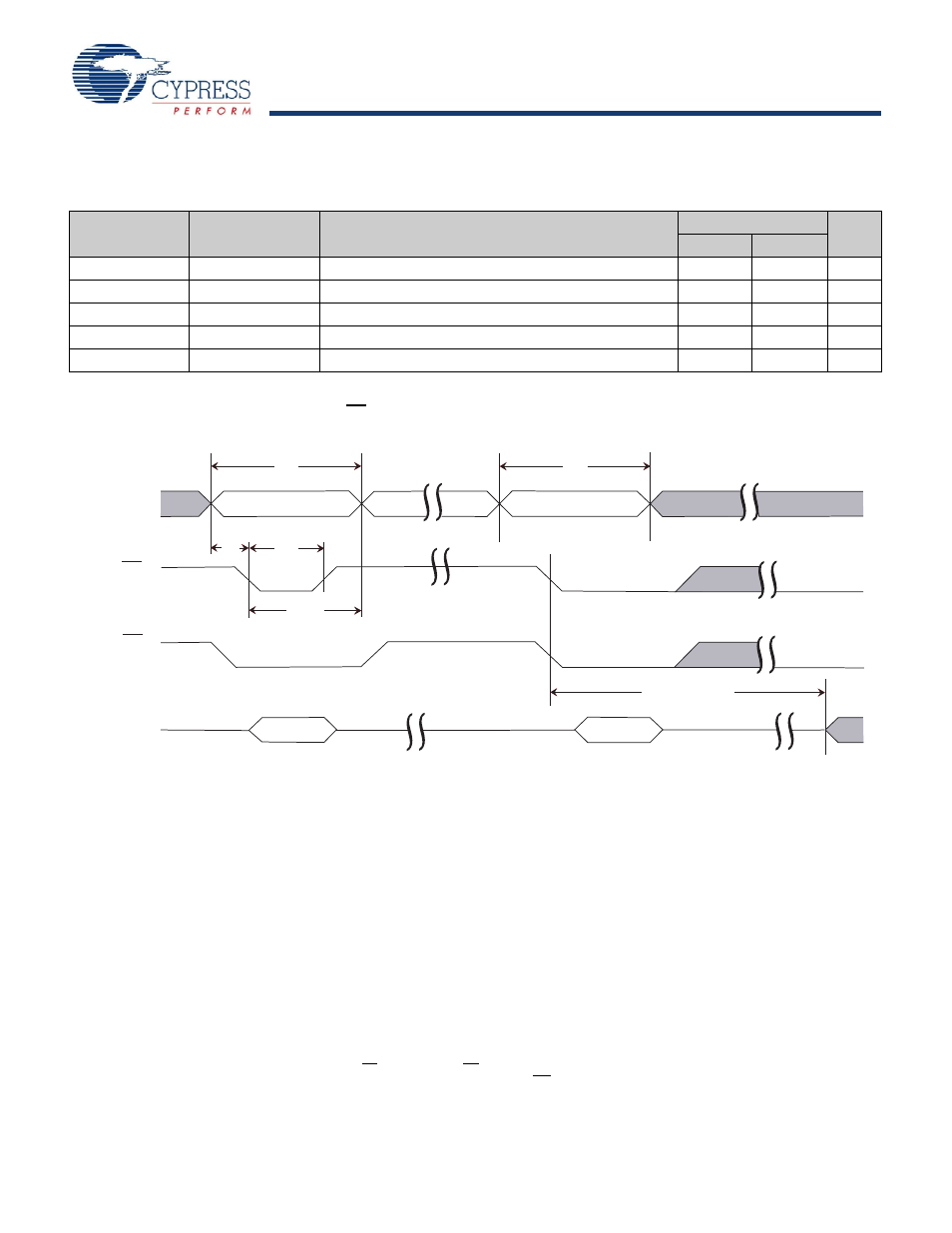

Figure 10. CE Controlled Software STORE/RECALL Cycle
[12]
t
RC
t
RC
t
SA
t
SCE
t
HACE
t
STORE
/ t
RECALL
DATA VALID DATA VALID
6 # S S E R D D A 1 # S S E R D D A
HIGH IMPEDANCE
ADDRESS
CE
OE
DQ (DATA)
Notes
11. The software sequence is clocked on the falling edge of CE without involving OE (double clocking will abort the sequence).
12. The six consecutive addresses must be read in the order listed in the Mode Selection table. WE must be HIGH during all six consecutive cycles.
