Form I-OIL-HS, Page 2
1. Model OT-250 Oil Tank – If the tank has not been installed, follow the
handling instructions supplied with the tank. Contact the local fire marshal
to assure compliance with local regulations and codes. The oil supply tank
must be installed in accordance with national and local codes.
Proper tank and stand installation is the responsibility of the installer. Select
the tank location with consideration for tank venting requirements, heater
clearances (refer to the heater installation manual), and heater venting. Tank
must be level and stable.
Slide the four corner
posts down through
the upper and lower
tank sleeves.
Upper Tank Sleeve
Lower Tank Sleeve
WARNING: Do not
attempt to adapt
this stand to fit any
other oil tank; use
only with Reznor
®
Model OT-250
above ground oil
supply tank. Use
stand only with
Reznor
®
oil-fired
unit heater models
and sizes listed on
page 1.

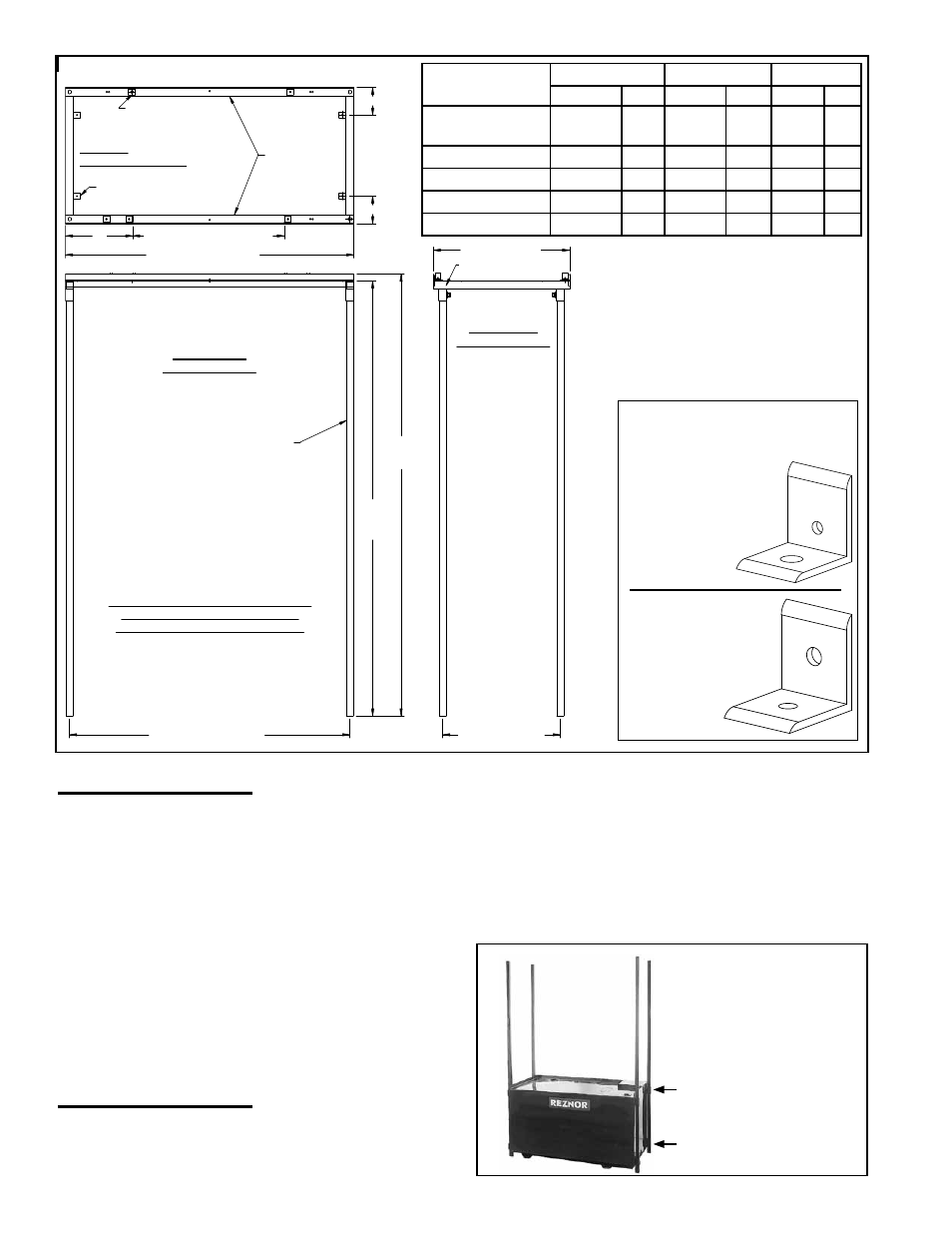

Stand Dimensions
(4) P/N 202825,
Angle Stops (For OH
and RA) - See below.
(4) P/N 202830, Angle Stops
(For Model RV) - See below,
63-1/2” (1613mm)
A
B (Face to Face Angles)
(2) P/N 202827,
Front/Rear
Support Angles
C
C
(4) P/N 202826
Corner Post
Top View
of Assembled Stand
Front View of
Assembled Stand
Side View of
Assembled Stand
61-3/4” (1568mm)
95-3/4”
(2432mm)
97-1/4”
(2470mm)
25-7/8” (657mm)
(2) P/N 202828
Tube Bracket Assy
30” (762mm)
(IMPORTANT: Tank is not shown here,
but stand MUST be installed on a
Model OT-250 Workbench Oil Tank.)
Model/Size
A
B
C
inches
mm
inches
mm
inches mm
OH 95, 140, 190;
RA 110, 140
14-13/16 376 33-3/8
848
--
--
RA 235
9-13/16
249 43-3/8 1102
RV 225, 325
--
--
--
--
6-1/16 154
RA 150
14-7/8
378 33-1/4
845
--
--
RA 250
9-7/8
251 43-1/4 1099
--
--
Instructions
2. Install Heater
Stand Corner
Posts – Slide the
four corner posts
(8-ft lengths of
square tubing) down
through the upper
and lower sleeves
that are welded to
the ends of the tank.
Model
OT-250
Oil Tank
Identify Angle Stops to
use by their Hole Sizes
Angle Stop, P/N 202825,
for Models RA and OH
(1) 3/8 dia hole
(1) 7/32 dia hole
Angle Stop,
P/N 202830,
for Model RV
(2) 9/32 dia holes
