RED DSMC MEDIA OPERATION GUIDE

955-0047, REV-F | 29

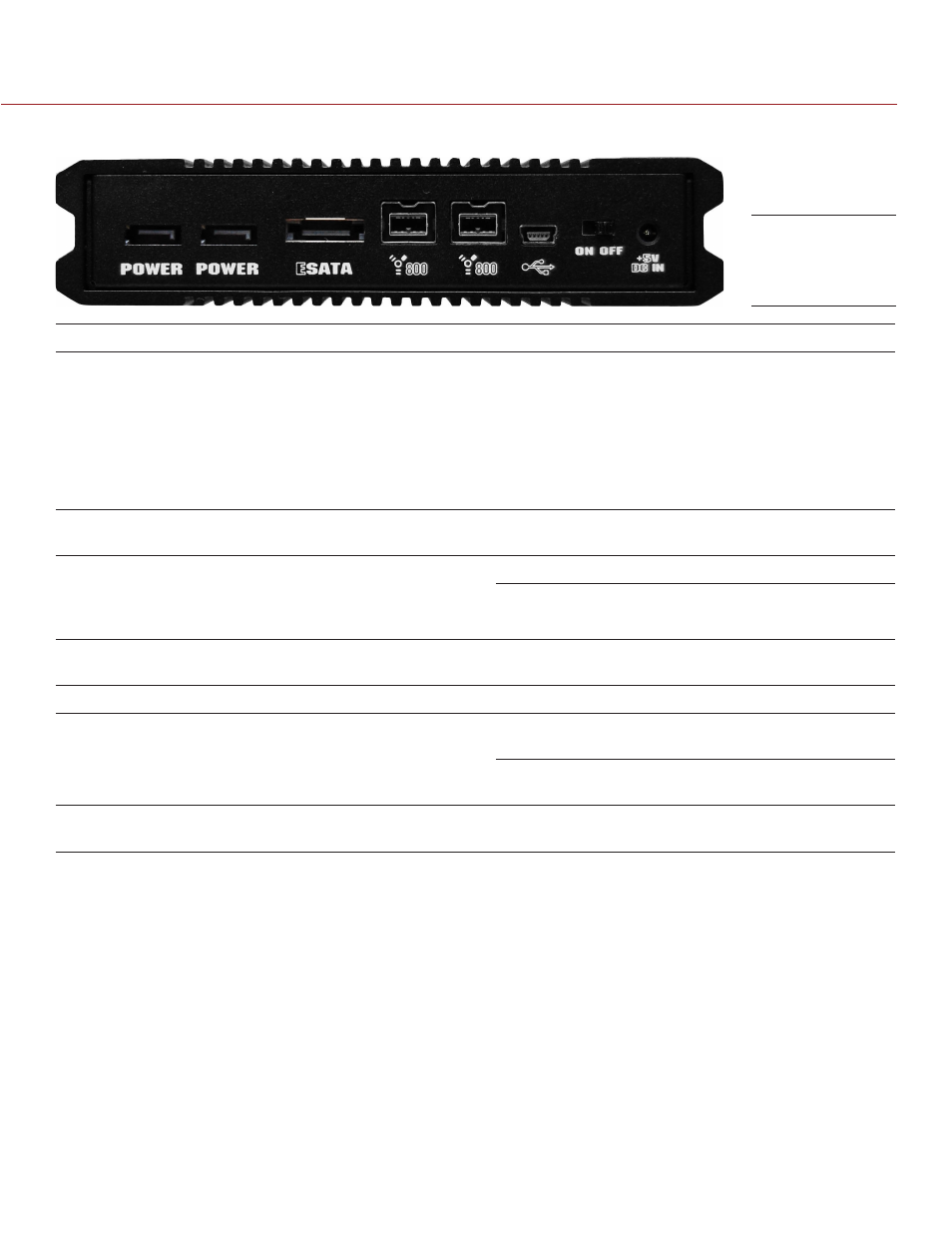

RED STATION REDMAG 2.5" CONNECTORS AND CONTROLS

CONNECTOR

DESCRIPTION

COMPATIBLE PARTS

PART NUMBERS

POWER

Both connectors accept power

from any RED STATION

that is already connected to a

RED STATION BASE; can also out-

put power to another RED STATION

in a stand-alone configura-

tion or when powered by a

RED STATION BASE

RED STATION DC POWER COU-

PLER (2")

790-0249

eSATA connector

Connect to computer via an eSATA

connection

eSATA Data Cable (24")

790-0250

FireWire 800

Use either connector to connect

to a computer or additional RED

STATIONs via a FireWire 800 con-

nection

RED STATION FW800 Cable (2")

790-0253

RED STATION FW800 Cable (24")

790-0251

Mini USB slot

Connect to computer via a Mini

USB connection

USB-TO-MINI USB CABLE (24")

790-0315

On/Off Switch

Turn on/off

+5 VDC IN

+5 VDC power in

RED STATION AC POWER ADAP-

TOR

790-0292

RED STATION USB TO DC POWER

CABLE (24")

790-0316

2.5" Hard Drive slot

(front)

Slot for inserting a third-party 2.5"

SSD or spinning hard drive

1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION REDMAG 2.5" through eSATA.

RED STATION

REDMAG 2.5"

(Rear)
