PS Engineering Inc. ®
PAR200 Audio Selector Panel, COM radio Controller and Intercom System
Installation and Operator’s Manual
200-228-0000 Page 3-3 Rev. 4, Dec. 2013
Other audio sources such as Marker Beacon, ADF or DME audio if installed are available if interfaced
through an unswitched input.
3.6 VHF Transceiver control (5)
The right side of the PAR200 is dedicated to control of the VHF communications transceiver. Frequency
selection is always directed to the STANDBY side of the display.
To change the radio volume, defeat the automatic radio squelch, or turn the cockpit speaker on or off,
push and hold the frequency-select knob for one second, until the display changes to the menu.
3.6.1 Frequency Selection (6)
Turn the large (outer) knob to change the frequency whole MHz, and the smaller, inner knob to change
the .100 MHz frequency.
Push the small knob momentarily to transfer standby frequency to the active frequency.

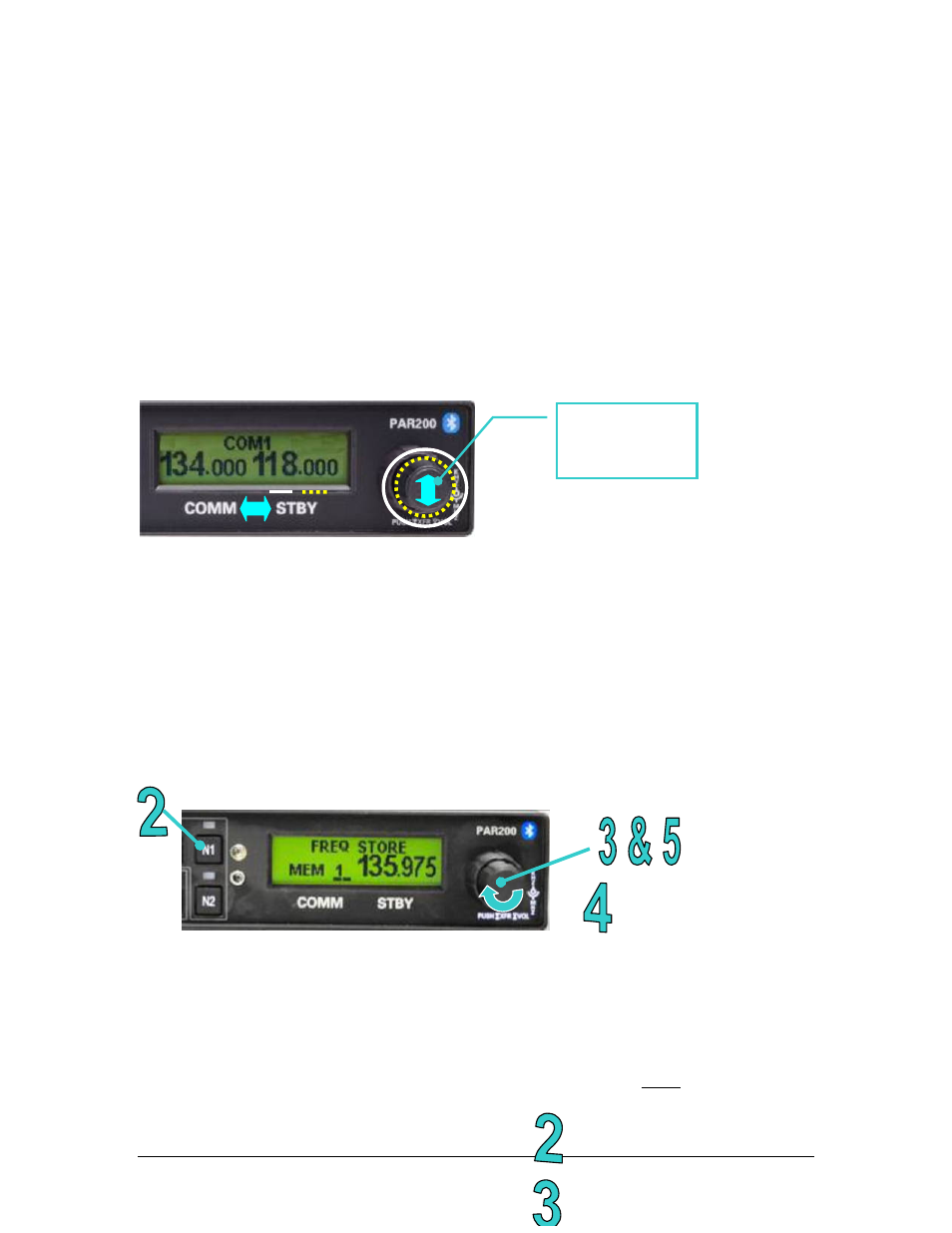

Figure 3-2 Frequency Control
3.6.1.1 Frequency Memory Storage
The PAR200 will store five frequencies for future recall.
To store frequencies:
1. Enter the desired frequency it the STBY frequency.
2. Press and hold the N1 button until the display changes FREQ SELECT, to show only the
STBY side.
3. Momentarily push the small (kHz) knob to display the list of locations.
4. Turn the small knob to select the location (1 through 5).
5. Either momentarily push the small knob again, or do nothing; the display will revert and the fre-
quency is stored in that location.
To recall stored frequencies:
1. Press and Hold the N2 button until the display changes to FREQ RECALL.
2. Using the small knob, select the desired location in MEM field.
3. Push the small knob to accept this as STBY frequency. NOTE: If you do not push the small knob
the frequency will not change to the stored, and reverts to STBY.
Push momentarily
to transfer.
