PROHEAT AIR A2/A4 INSTALLATION MANUAL 2-15

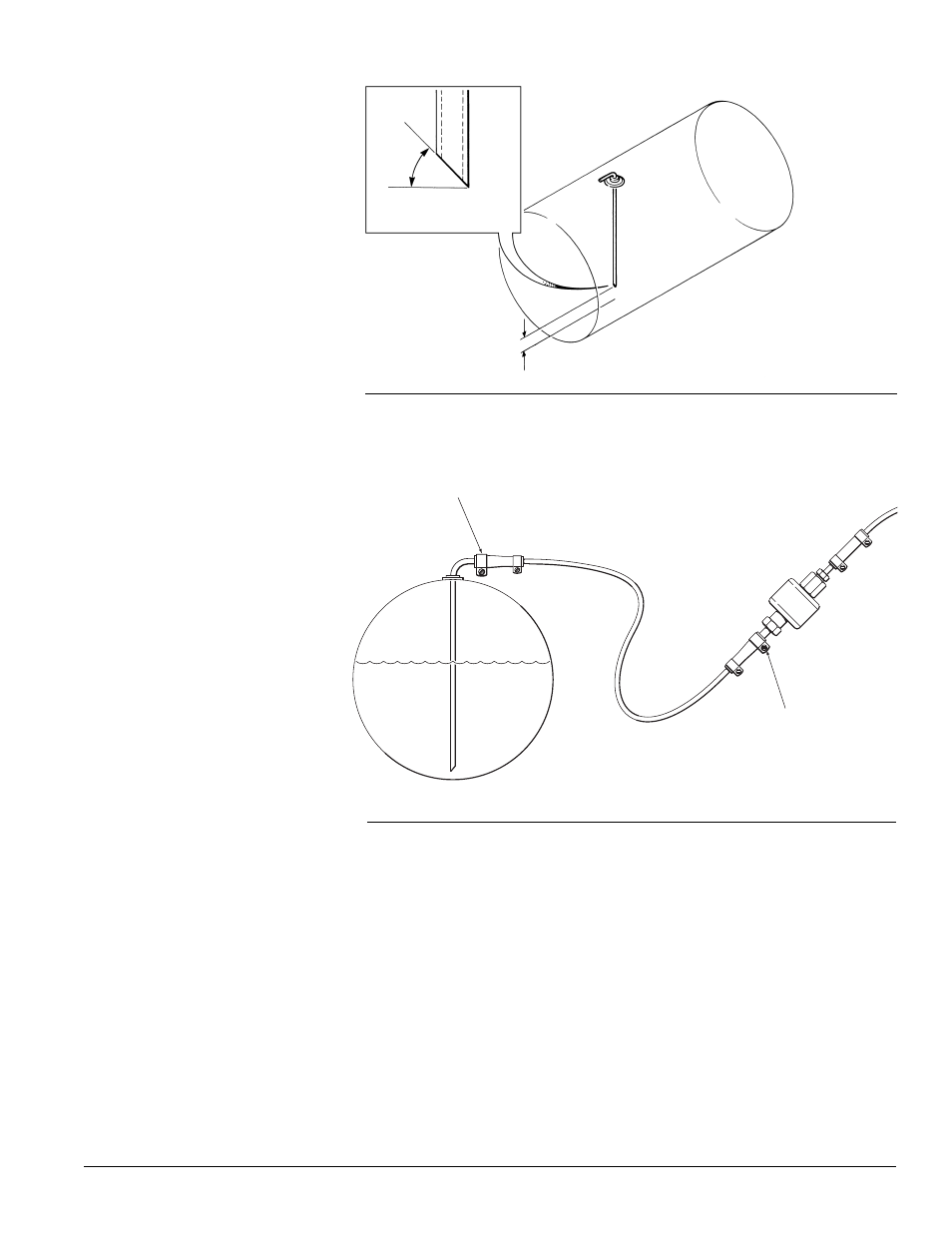

Figure 20. Fuel Pick-up Depth
3" (76 mm) TO 4" (101 mm) CLEAR OF BOTTOM OF TANK
CUT BOTTOM
OF FUEL PICK-UP
AT AN ANGLE
45˚±15˚
Figure 21. Hose Clamps.
LARGER #11 HOSE CLAMP
LARGER #11 HOSE CLAMP
