Step

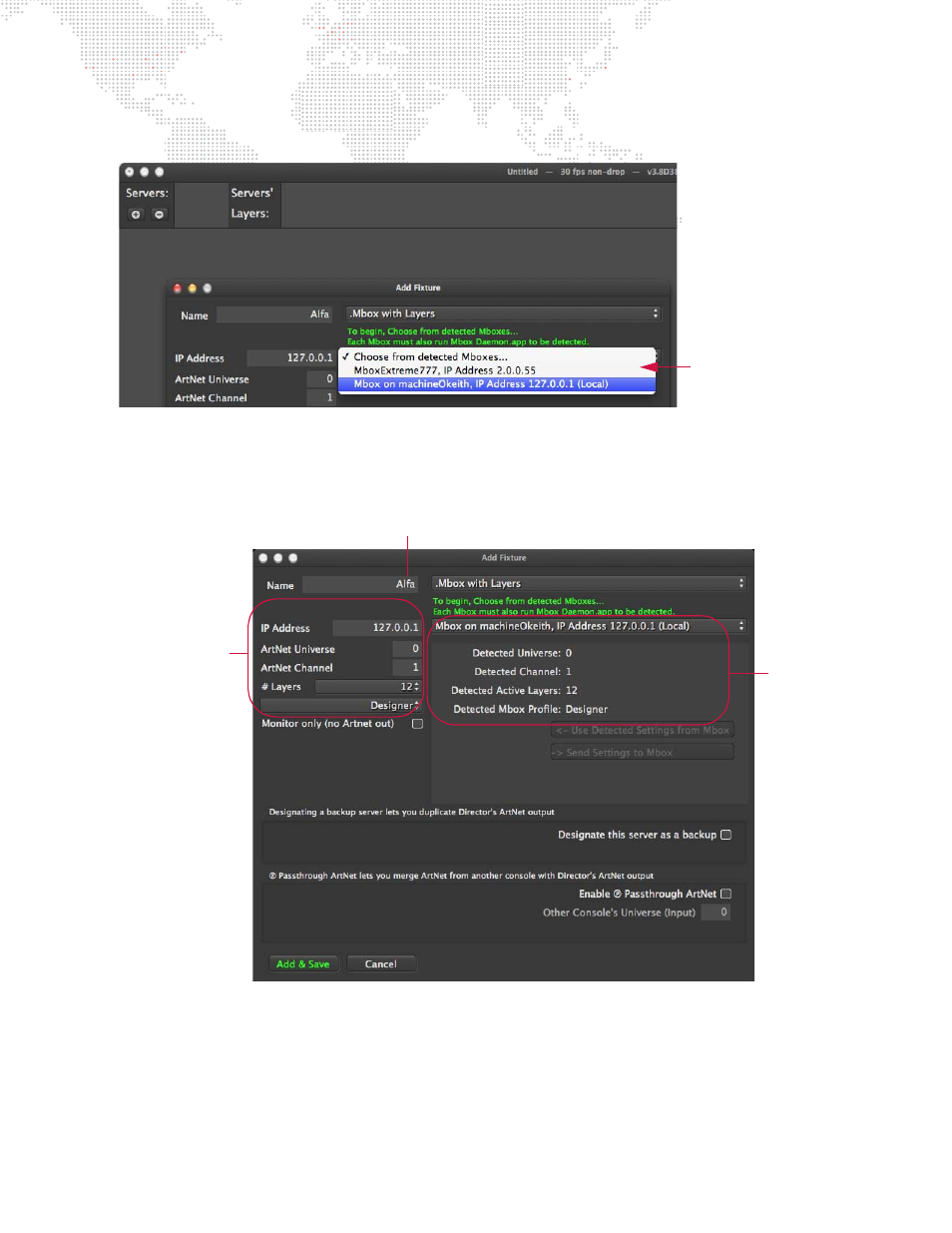

2. At "Choose from detected Mboxes" list, select Mbox server. (If the network settings are configured properly,
the servers will appear in this list.)
Step
3. Once an Mbox server is chosen, the IP Address, Art-Net Universe, Art-Net Channel, # of Layers, and DMX
Profile fields will be populated according to the settings configured in the Mbox server Setup window.
(Note: If any of these values or settings are changed here at the Mbox Director Add Fixture window, the
conflicting value will be highlighted, but will not be changed at the actual Mbox server.)
Step
4. At Name field, enter custom name if desired. (The name can be edited after the fixture has been created.)
Step
5. Use optional checkboxes to designate as "Monitor Only" and/or "Backup."
Step
6. Choose a Profile setting (".Mbox with Layers" or "Serial-Over-Ethernet") as required. For more information
on the Serial-Over-Ethernet feature, refer to
"Controlling an External Projector (Serial-Over-Ethernet)"
Step
7. Enable Passthrough Art-Net as required. For more information on this advanced feature, refer to
an External Console (Passthrough Art-Net)"
The choices here will depend
on your particular setup.
Name Field (enter custom name, if desired)
Settings from
Mbox Server
Director
Fixture Settings
