6 MBOX ® DIRECTOR USER MANUAL
When connecting a Mac computer (running Mbox Director) to an Mbox server, use the Ethernet 1 port for this type of
network connection. The physical Ethernet 1 port on the Mbox server is located on the front of its Dual I/O module. A
network switch can be used if multiple Mbox servers need to be connected as shown below:

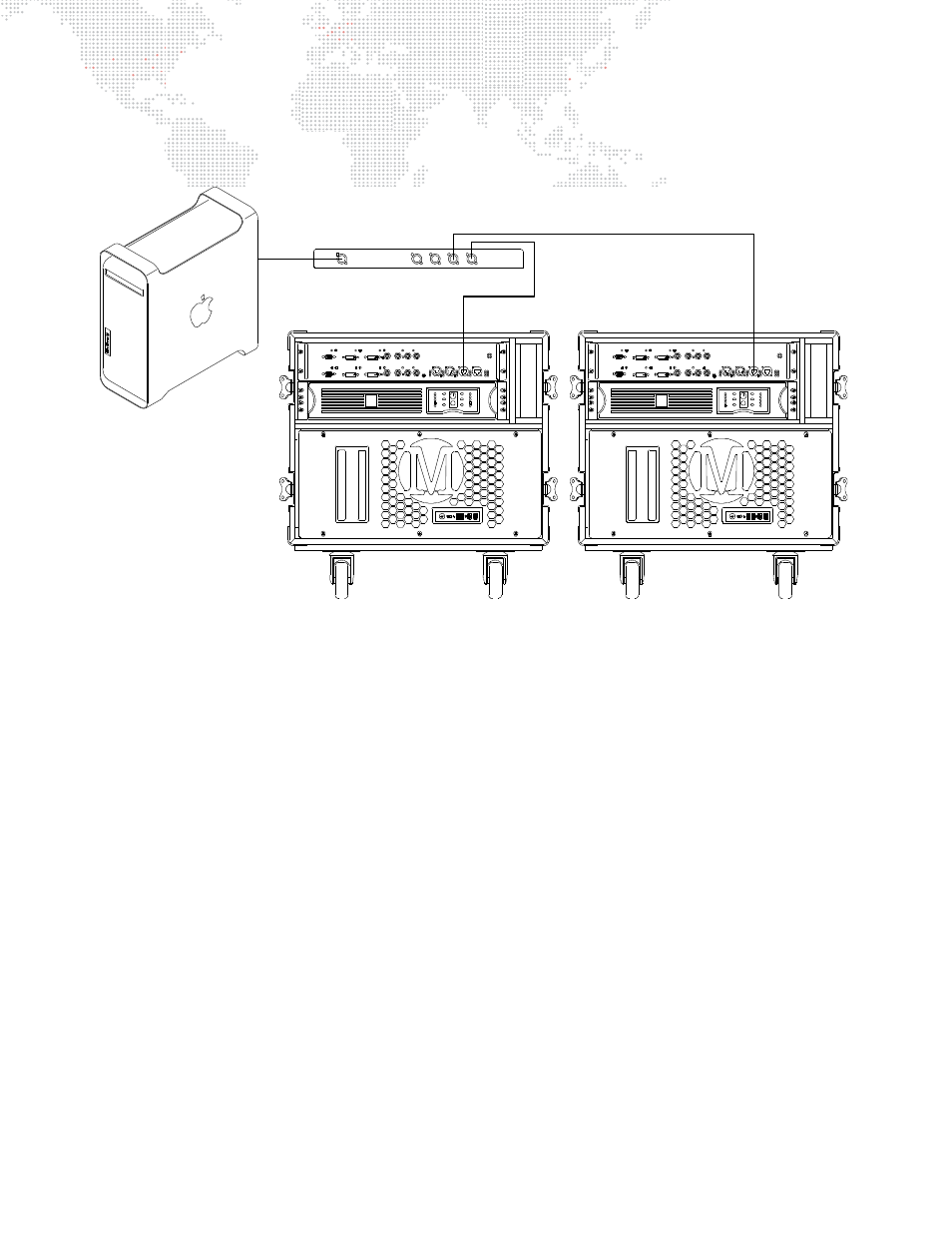

Figure 2: Sample Mac to Mbox Connection Diagram
More Information
For additional information and concepts specific to setting up an Mbox network, refer to "Appendix B. Networking For
Mbox" on page 100.
Network Troubleshooting
For troubleshooting assistance while setting up or reconfiguring your network settings, refer to "Troubleshooting" on
page 85.
MAC COMPUTER *
NETWORK SWITCH
MBOX MBOX
To Ethernet 1 To Ethernet 1 Port of MBOX Dual I/O Module
Port of Mac
* This diagram shows a
sample Mac com-
puter. The computer
type may vary.
