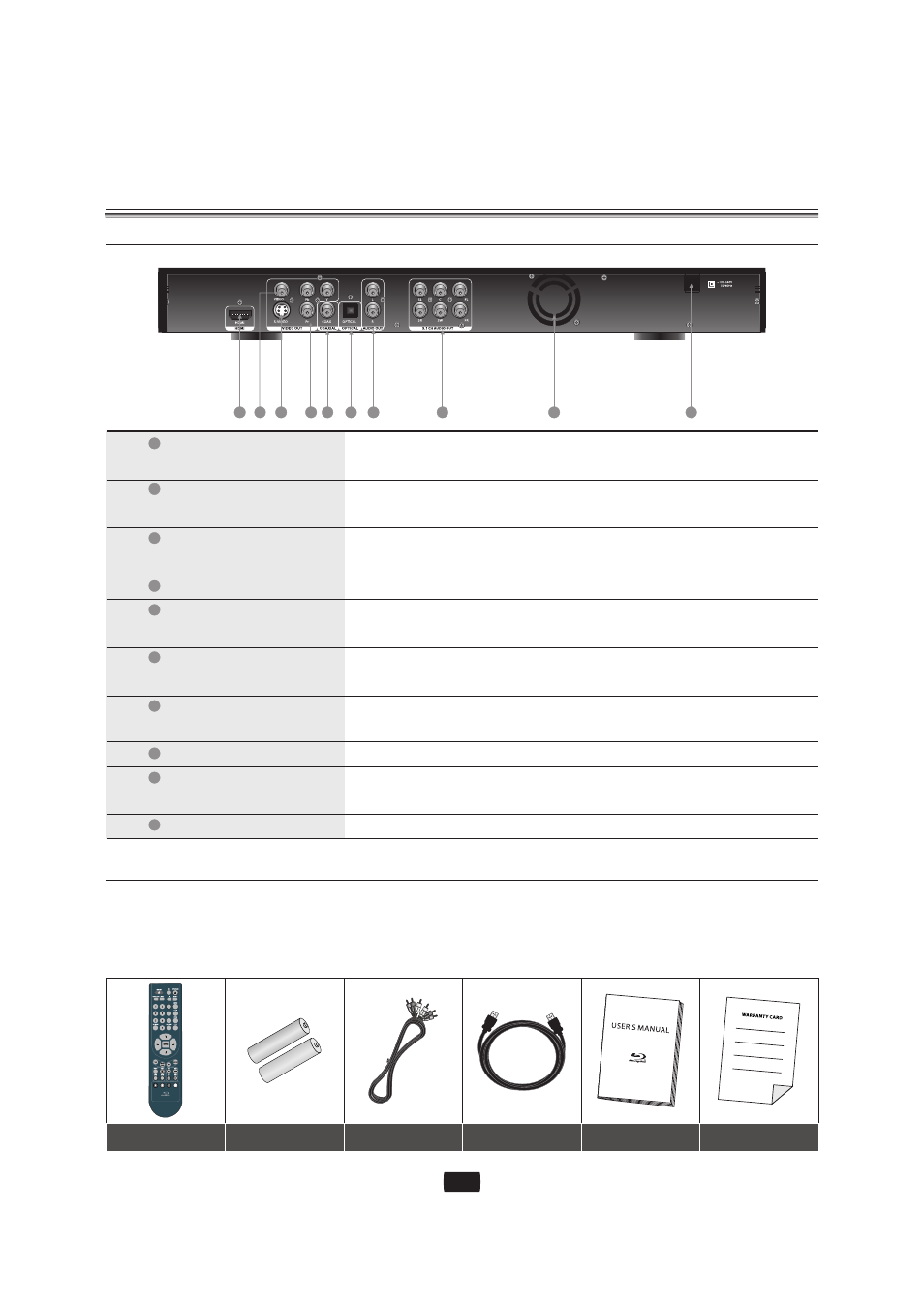

Description
Rear Panel
1 3 5 6 7 2 4
HDMI OUT
VIDEO OUT
S-VIDEO OUT
COMPONENT VIDEO OUT
OPTICAL OUT
AUDIO OUT
5.1 CH AUDIO OUT
FAN
AC INLET
COAXIAL OUT
1
2
3
4
5
6
7
8
9
Use the HDMI cable, connect this HDMI output terminal to
the HDMI input terminal on your TV for the best quality picture.
Connects to the input of external equipment using a video
cable.
Connects to the input of external equipment using an
S- Video cable.
Connects to equipment having component video input.
Connects to an amplifier having a digital coaxial audio input
jack.
Connects to an amplifier having a digital optical audio input
jack.
Connects to the audio input of external equipment using audio
cables.
Connects to a 5.1CH analog input on an A/V amplifier.
The fan always revolves when the power is on. Ensure a minimum of 4
inches of clear space on all sides of the fan when installing the product.
AC 100~240V 50/60Hz
Accessories
Remote control Batteries Audio cable HDMI Cable User's manual Warranty card
Remote Control............................1 Batteries............................1
Audio Cable.................................1 HDMI Cable........................1
User's manual..............................1 Warranty Card.....................1
