Device Operation
The STK22C48 nvSRAM is made up of two functional compo-
nents paired in the same physical cell. These are an SRAM
memory cell and a nonvolatile QuantumTrap cell. The SRAM
memory cell operates as a standard fast static RAM. Data in the
SRAM is transferred to the nonvolatile cell (the STORE
operation) or from the nonvolatile cell to SRAM (the RECALL
operation). This unique architecture enables the storage and
recall of all cells in parallel. During the STORE and RECALL
operations, SRAM Read and Write operations are inhibited. The
STK22C48 supports unlimited reads and writes similar to a
typical SRAM. In addition, it provides unlimited RECALL opera-
tions from the nonvolatile cells and up to one million STORE
operations.
SRAM Read
The STK22C48 performs a Read cycle whenever CE and OE are
LOW while WE and HSB are HIGH. The address specified on
pins A
0–10
determines the 2,048 data bytes accessed. When the
Read is initiated by an address transition, the outputs are valid
after a delay of t
AA
(Read cycle 1). If the Read is initiated by CE
or OE, the outputs are valid at t
ACE
or at t
DOE
, whichever is later
(Read cycle 2). The data outputs repeatedly respond to address
changes within the t
AA
access time without the need for transi-
tions on any control input pins, and remains valid until another
address change or until CE or OE is brought HIGH, or WE or
HSB is brought LOW.
SRAM Write
A Write cycle is performed whenever CE and WE are LOW and
HSB is HIGH. The address inputs must be stable prior to entering
the Write cycle and must remain stable until either CE or WE
goes HIGH at the end of the cycle. The data on the common IO
pins DQ
0–7
are written into the memory if it has valid t
SD
, before
the end of a WE controlled Write or before the end of an CE
controlled Write. Keep OE HIGH during the entire Write cycle to
avoid data bus contention on common IO lines. If OE is left LOW,
internal circuitry turns off the output buffers t
HZWE
after WE goes
LOW.
AutoStore Operation
During normal operation, the device draws current from V
CC
to
charge a capacitor connected to the V
CAP
pin. This stored
charge is used by the chip to perform a single STORE operation.
If the voltage on the V
CC
pin drops below V
SWITCH
, the part
automatically disconnects the V
CAP
pin from V
CC
. A STORE
operation is initiated with power provided by the V
CAP
capacitor.
Figure 2 shows the proper connection of the storage capacitor
(V
CAP
) for automatic store operation. A charge storage capacitor
between 68 µF and 220 µF (+20%) rated at 6V should be
In system power mode, both V
CC
and V
CAP
are connected to the
+5V power supply without the 68
μF capacitor. In this mode, the
AutoStore function of the STK22C48 operates on the stored
system charge as power goes down. The user must, however,
guarantee that V
CC
does not drop below 3.6V during the 10 ms
STORE cycle.
To prevent unneeded STORE operations, automatic STOREs
and those initiated by externally driving HSB LOW are ignored,
unless at least one
WRITE operation takes place since the most
recent STORE or RECALL cycle. An optional pull up resistor is
shown connected to HSB. This is used to signal the system that
the AutoStore cycle is in progress.
AutoStore Inhibit mode
If an automatic STORE on power loss is not required, then V
CC
is tied to ground and +5V is applied to V
CAP
( Figure 3 ). This is
the AutoStore Inhibit mode, where the AutoStore function is
disabled. If the STK22C48 is operated in this configuration, refer-
ences to V
CC
are changed to V
CAP
throughout this data sheet.
In this mode, STORE operations are triggered with the HSB pin.
It is not permissible to change between these three options “on
the fly”.

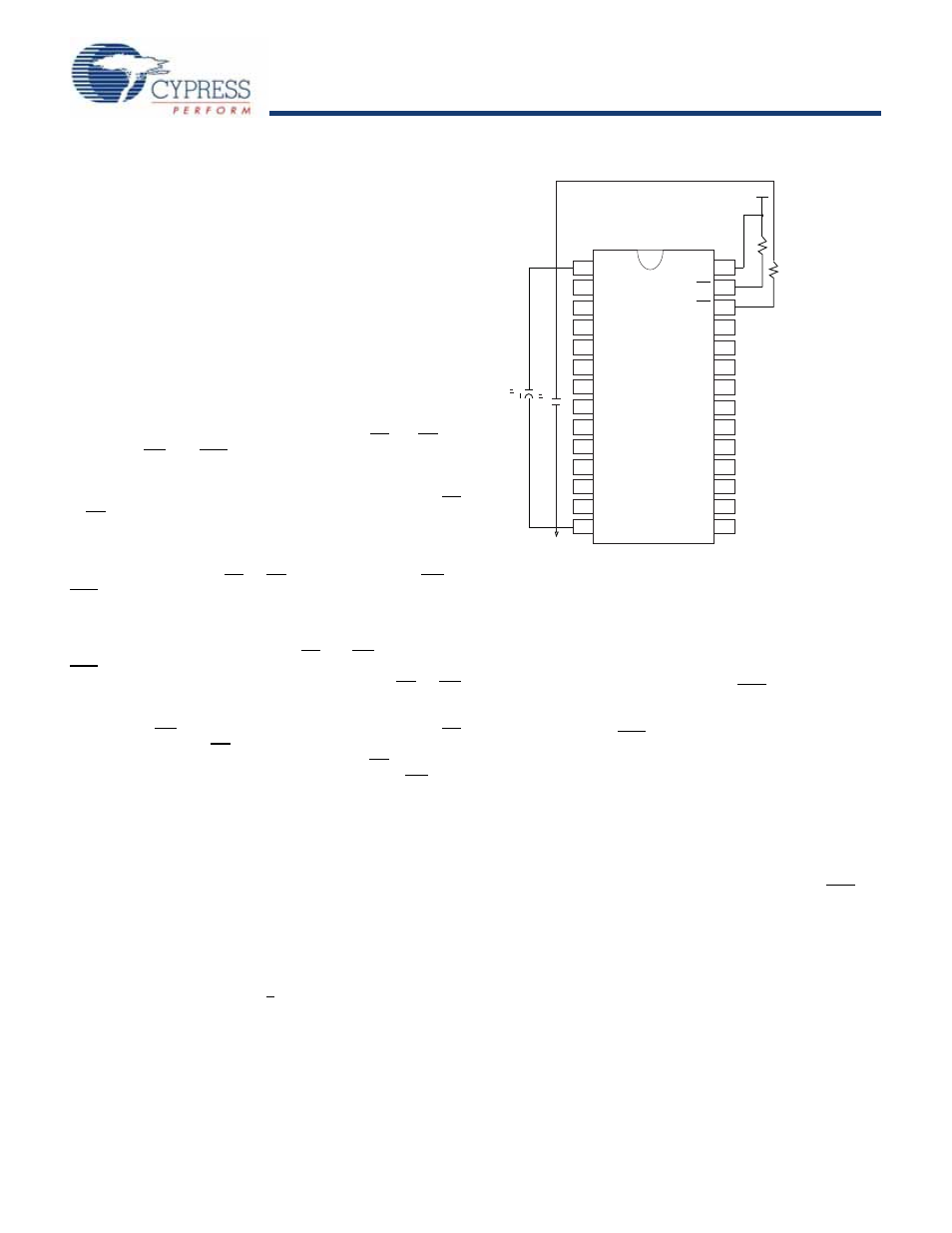

Figure 2. AutoStore Mode
9FF 9
&$3
P
K
2
N
)
5
Y
P
K
2
N
:(
+6%
9VV
)
5
V
V
D
S
\
%
