4
SPECIFICATIONS NOTES
FOOT LOCATION &
FLOOR DRAIN DETAIL
FLANGED
FOOT DETAIL
9/16"
14 mm
120º
TYP
1" (25 mm)
MAX. ADJUSTMENT
1 5/8" (42 mm) Ø
7/16" (11 mm) Ø
3 HOLES ON
3 1/8" (80 mm) Ø
B.C.D.
4 7/8"
124 Ø mm

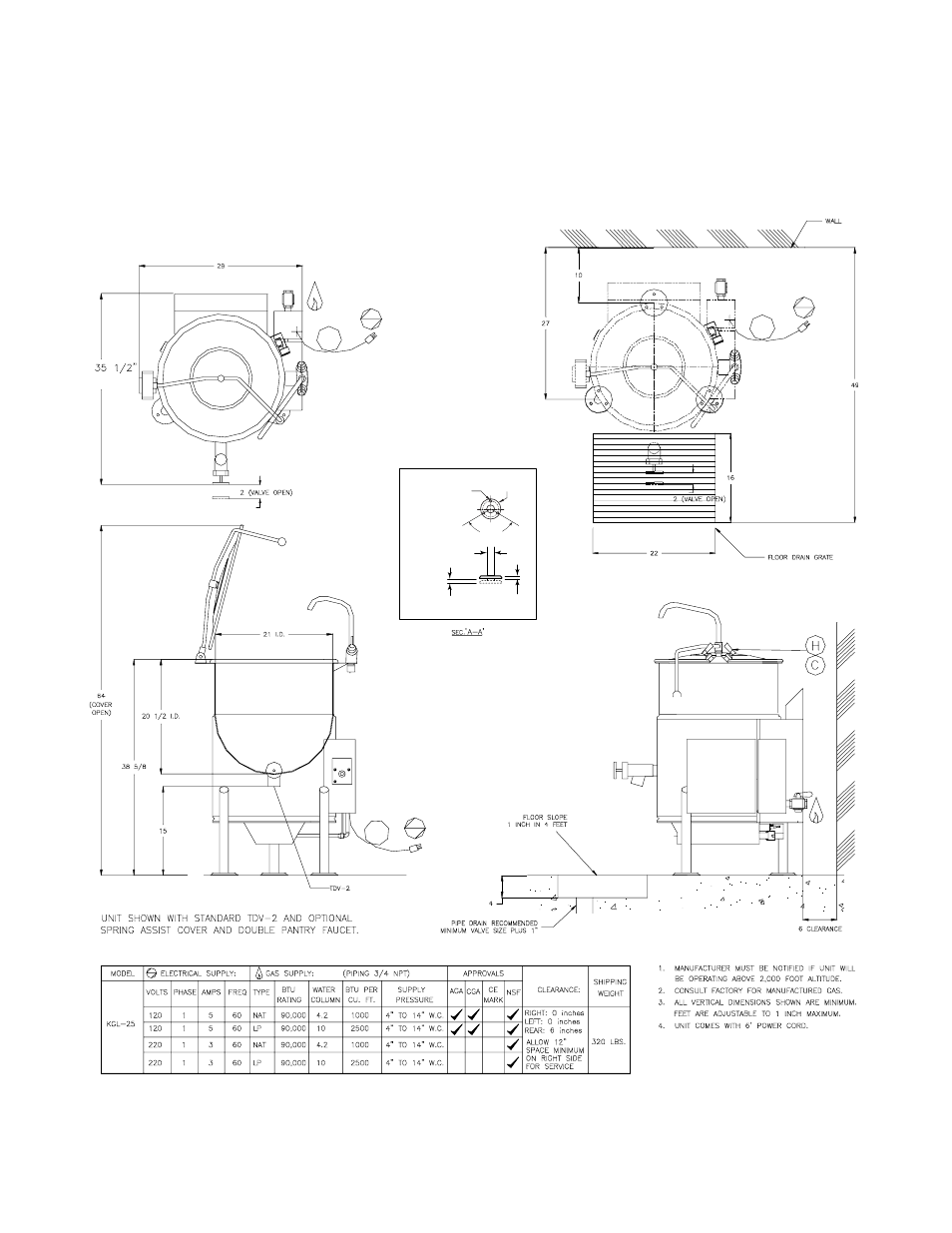

SPECIFICATION DRAWING - STATIONARY MODELS
