English-6

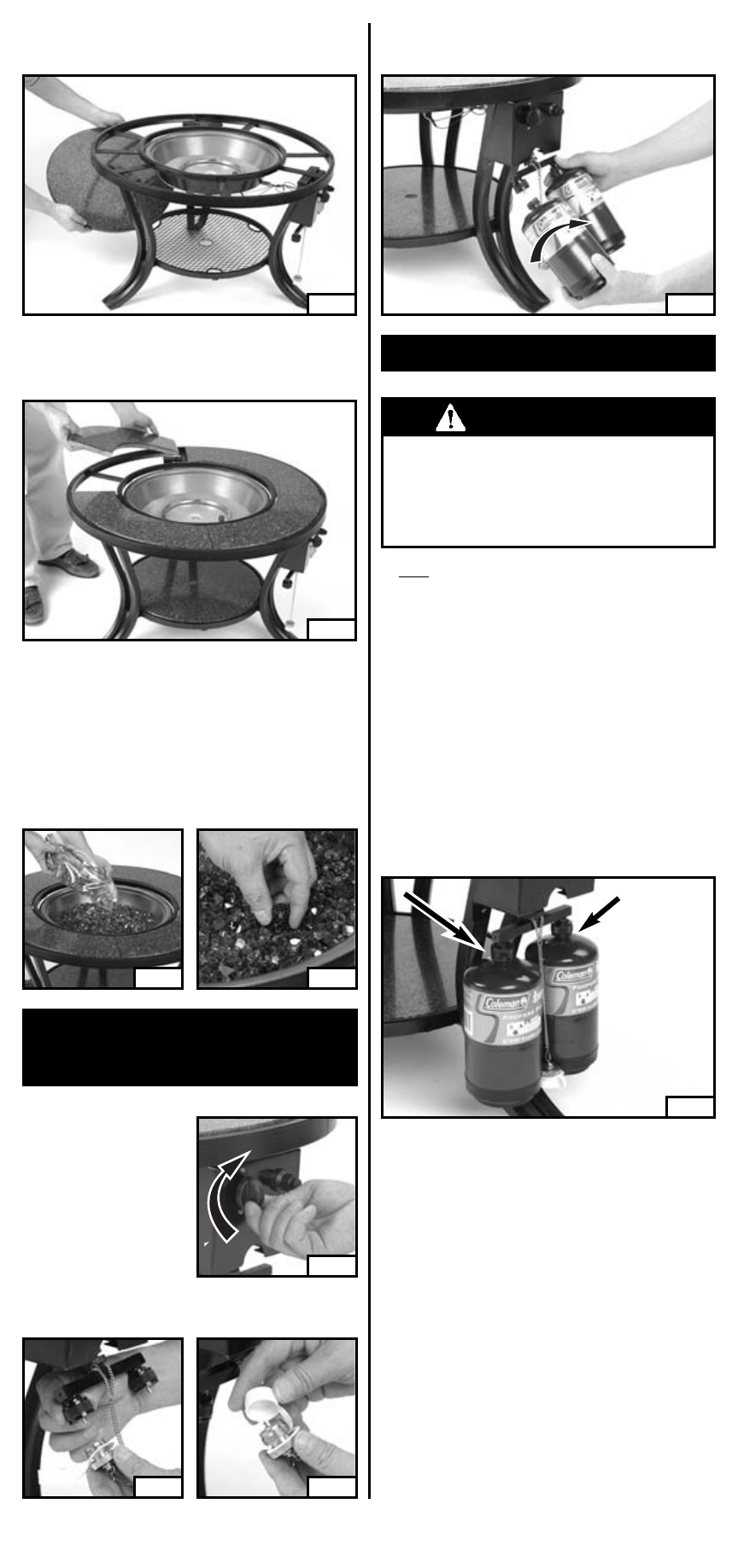

■ Place the Inner Granite Surface in the storage
position on the shelf (Fig 19).
Fig. 19
■ Place three Outer Granite Surfaces in the frame.
The joining ends of each surface MUST fully
rest on a cross member of the frame (Fig 20).
Fig. 20
Fig. 22 Fig. 21
■ The Firebowl Media consists of one bag of
Rocks and one bag of Tumbled Glass.
■ Carefully open the bag of Rocks and pour into
the Firebowl and level. Next, open the bag of
Tumbled Glass and pour on top of the Rocks
and level. Make sure the metal cage over the
electrode is not obstructed (Fig 21 and 22).
Setup
(disposable propane cylinders)
Fig. 23
■ Close the burner
valve firmly (Fig. 23).
Fig. 25
■ Remove the shut-off plug and cover it with the
protective plastic cap (Fig. 24 and 25).
Fig. 24
■ Attach two Coleman 16.4 oz disposable propane
bottles (Fig 26).
Fig. 26
WARNING
• Perform leak test outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the gas fireplace until connection
has been leak tested and does not leak.
Leak Check
■ Note: Use Coleman 16.4 oz. disposable propane
cylinders. The LP-gas supply cylinders to be used
must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the
U.S. Department of Transportation (DOT) or the
National Standard of Canada,
CAN/CSA B339 ,
Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods.
Fig. 27
■ Perform leak check on bottle to regulator
connections with soapy water. Bubbles indicate
a leak. Check that the connections are not
cross-threaded and that they are tight. Perform
another leak check. If there is still a leak,
remove the cylinder(s) and contact Coleman for
service or repairs (Fig 27).
