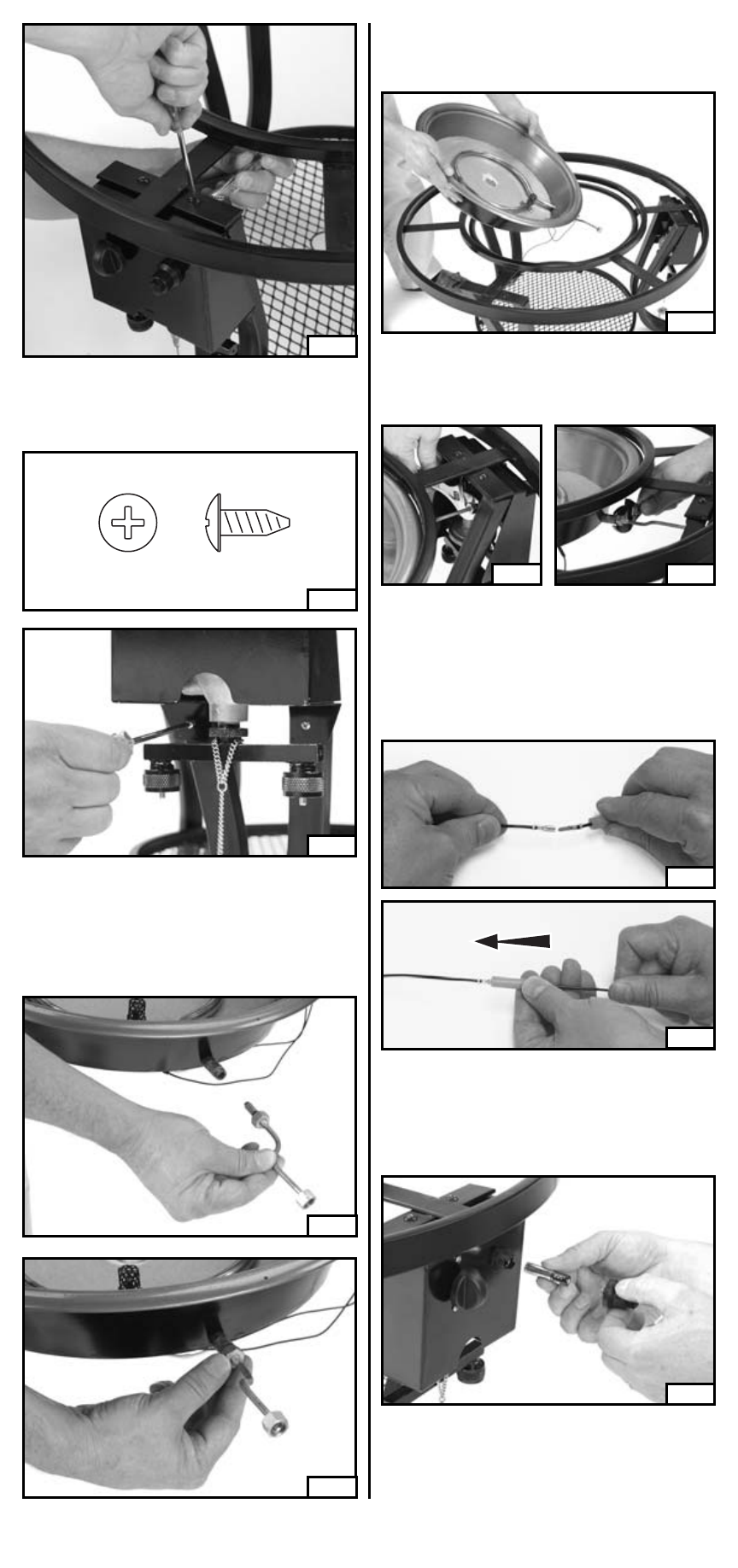

■ Assemble the Firebowl into the frame. Take
care to align the Fuel Tube with the fitting on the
Control Panel (Fig 13).
Fig. 15
■ Insert the Fuel Tube into the Firebowl. Make
sure that the end with the rubber O-Ring goes
into the Firebowl (Fig. 11 and 12). Loosely
assemble the retaining nut to allow for alignment
with the Control Panel in the next step.
Fig. 8
■ Use a small wrench to tighten both Fuel Tube
fittings (Fig. 14 and 15).
■ Tighten all screws and hex nuts.
Small Screw (2) Qty.
Hardware shown actual size
Fig. 9
■ Secure the bottom of the Control Panel to the
leg with two small screws (Fig. 9 and 10).
Fig. 10
English-5
Fig. 14
Fig. 11
Fig. 12
Fig. 13
Fig. 17
■ Attach both of the electrode wires from the
Firebowl to the wires from the back of the
Control Panel (Fig. 16). Slip the insulating
sleeves over the connections (Fig. 17).
NOTE: It does not matter which wire is attached
to either connector.
■ Unscrew the igniter button to reveal the battery
compartment.
■ Install a fresh Alkaline AA Battery with positive
(+) outward.
■ Replace the igniter button finger tight (Fig. 18).
Fig. 18
Fig. 16
