30 C HAPTER 2: I NSTALLING A CCESS P OINT HARDWARE

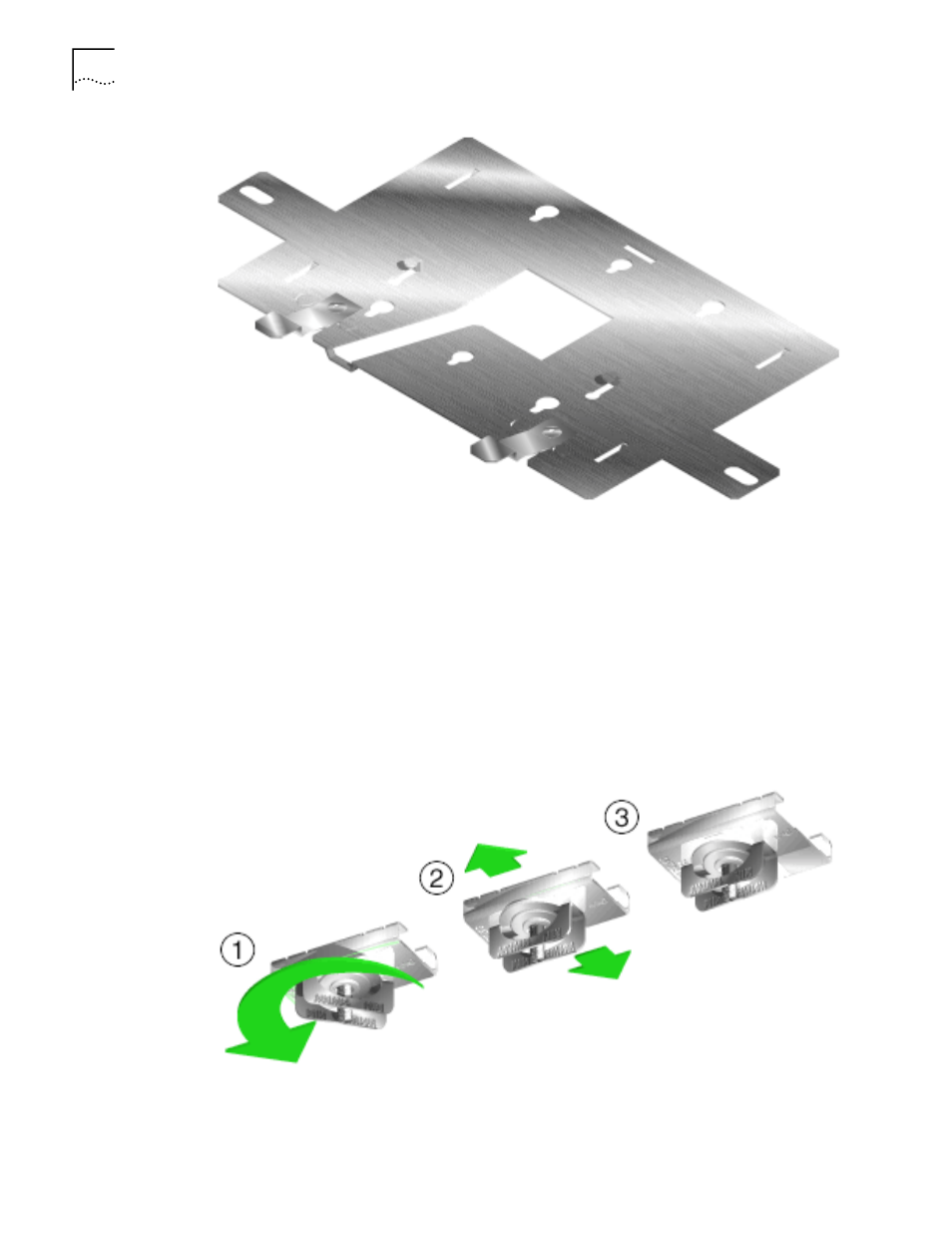

Ceiling Mount To mount an AP on a ceiling:
1 Attach the mounting bracket to the AP by lining up the raised flanges in the
center of the bracket with the mounting holes on the bottom of the AP.
2 Firmly press the rounded ends of the flanges into both mounting holes, and then
push forward until the flanges slide into the holes and the bracket locks into place.
3 Attach both t-rail grips to the outer flanges of the mounting bracket with the
t-rail wingnuts. Do not tighten the wingnuts completely; the t-rail grips should
remain loose.
4 Align the t-rail grips with the ceiling t-rails, and attach them to the t-rails.
5 Tighten the t-rail wingnuts.
