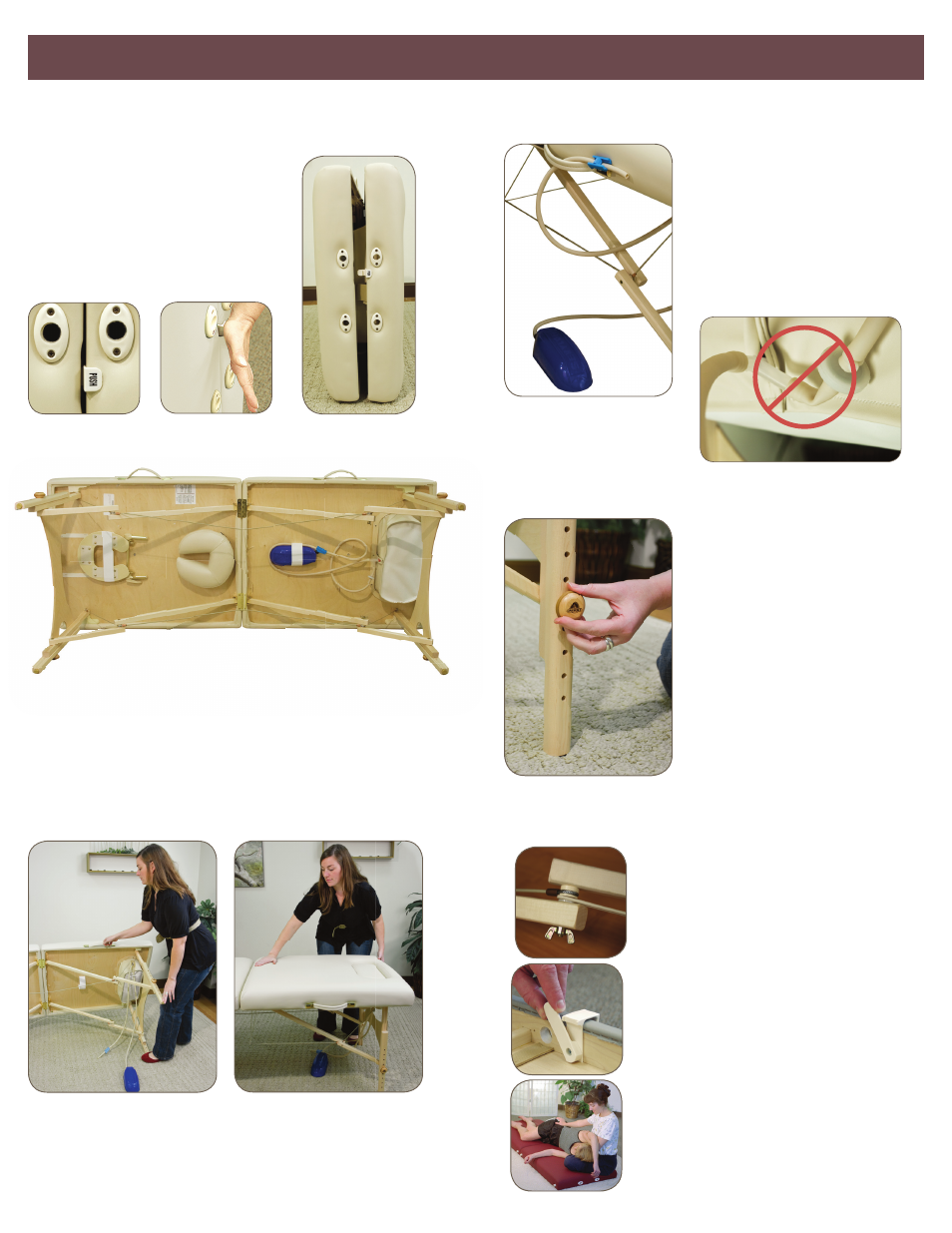

TO SET-UP THE TABLE:

Place the folded table sitting on
the rubber bumpers. With the
heel of your hand, bump the
UniLock™ tab between the face
rest outlets and the table will
open. Open the table up until
the legs are fully extended.

TABLE SET UP

When the table is fully opened, use your foot as a
brace on one of the leg extensions. Using the handle, tilt
the table upright until all four feet are on the floor.
Lift one end of the table, press down on the middle and
tension the cables a little.

TO CHANGE THE TABLE HEIGHT:

FOOT PUMP & HAND VALVE PLACEMENT:

page 1 www.oakworks.com

UniLock™

Check for and
remove any kinks
in the tubing system.

Place the foot pump on the floor
below the table but within easy
reach of your foot. Run the tube
to the hand control through the
table handle to insure it is easy
to reach.

CAUTION: Make sure the cables are slightly

tensioned before getting on the table.

When the table is set up, the
height should be adjusted to
the proper working height
for the therapist. Once this
is determined, adjust the legs
accordingly. Choose the hole
that represents the desired
height. After removing the
knob, put the bolt through
that hole. Replace and tighten
the knob by hand until snug.
Repeat on all other leg exten-
sions, setting all extensions
at same height.

SHIATSU CABLES

1. With the table on its side,

remove the wing nut from

the bolt and remove long

brace, cable and washers

from the short brace.

Reassemble them without

the cable. Repeat on the

second wing nut.

2. Turn the Unilock™ clasp to
the

side.

3. Fold the legs against the

underside and lay the table

down flat on the floor.

CAUTION:

Shiatsu Cables must

be installed as shown when using

table in normal height ranges.
