GEAR SELECTION (Important!)
w w w . t e a m n o v a k . c o m
Motor operating temperature is the ONLY
way to properly set the maximum vehicle gearing
The motor should be 150-160°F MAX at end of run!
Temperatures above 160°F will weaken the magnet & may
melt the coils! This voids warranty & can damage ESC!
Change the gearing to avoid overheating.
Because of the potential danger of overheating, ESC/motor
damage & failure, you must start with VERY small pinion
sizes and check ESC & motor temperatures at multiple times
throughout a run. This is the only way to ensure that you
are not causing excessive heating.
If ESC & motor temperatures remain low and stable, you can
slowly increase the pinion size while again monitoring the
temperatures to determine the safe gearing for your vehicle,
motor, and climate/track conditions. Because these variables
can change or be modified, you MUST continually monitor
ESC & motor temperatures to protect your electronics
from damage.
SERVICE PROCEDURES
After reviewing instructions, tech section and how-to video section of website,
if you feel your motor requires service (motor may appear to have failed when
other problems exist), obtain the most current product service options and
pricing by one of the following methods:
WEBSITE: Print a copy of the product
SERVICE FORM from the SERVICE
section of the Novak website. Complete form & return with the product.
PHONE/E-MAIL: Contact our customer service department by phone or
e-mail, and we will supply you with current service options.
WARRANTY SERVICE: You MUST CLAIM WARRANTY on product
SERVICE
FORM and include a valid, itemized receipt with the purchase date on it,
or an invoice from previous service work. If warranty provisions have been
voided, there will be a service fee.
e-mail: [email protected] • (949) 916-6044 • Mon-Thu
PRODUCT WARRANTY
Novak Brushless motors are guaranteed to be free from defects in materials or workmanship
for a period of 120 days from the original date of purchase (verified by dated, itemized sales
receipt). Warranty does not cover incorrect installation, components worn by use, cross-
connection of battery/motor power wires, overheating solder tabs, damage resulting from
thermal overload or operation above 160°F, use of excessive timing or overheating, splices or
damage to the sensor harness, damage from disassembling motor, tampering with internal
electronics, allowing water, moisture, or any other foreign material to enter motor or get
onto the PC board, short-circuiting of motor by allowing exposed wiring or solder tabs to
cross-connect or ESC applying simultaneous power to more than one phase at a time from
switching to Brush Mode, free-revving motor, or any damage caused by a crash, flooding,
or natural disaster. In no case shall our liability exceed the product’s original cost. We reserve
the right to modify warranty provisions without notice.
Because Novak R/C, Inc. has no control over the connection & use of motor or other related
electronics, no liability may be assumed nor will be accepted for damage resulting from the
use of this product. Every motor is thoroughly tested and cycled before leaving our facility and
is, therefore, considered operational. This product is not a toy, and is not intended for use by
children under 14 years of age without the strict supervision of an adult. Use of this product
in a uncontrolled manner may result in physical damage or injuries. Take extra care when
operating any remote control vehicle. By the act of connecting/operating speed control, the user
accepts all resulting liability.
©Novak R/C, Inc. California, U.S.A. No part of these instructions may be repro-
duced without the written permission of Novak R/C, Inc. All Rights Reserved.

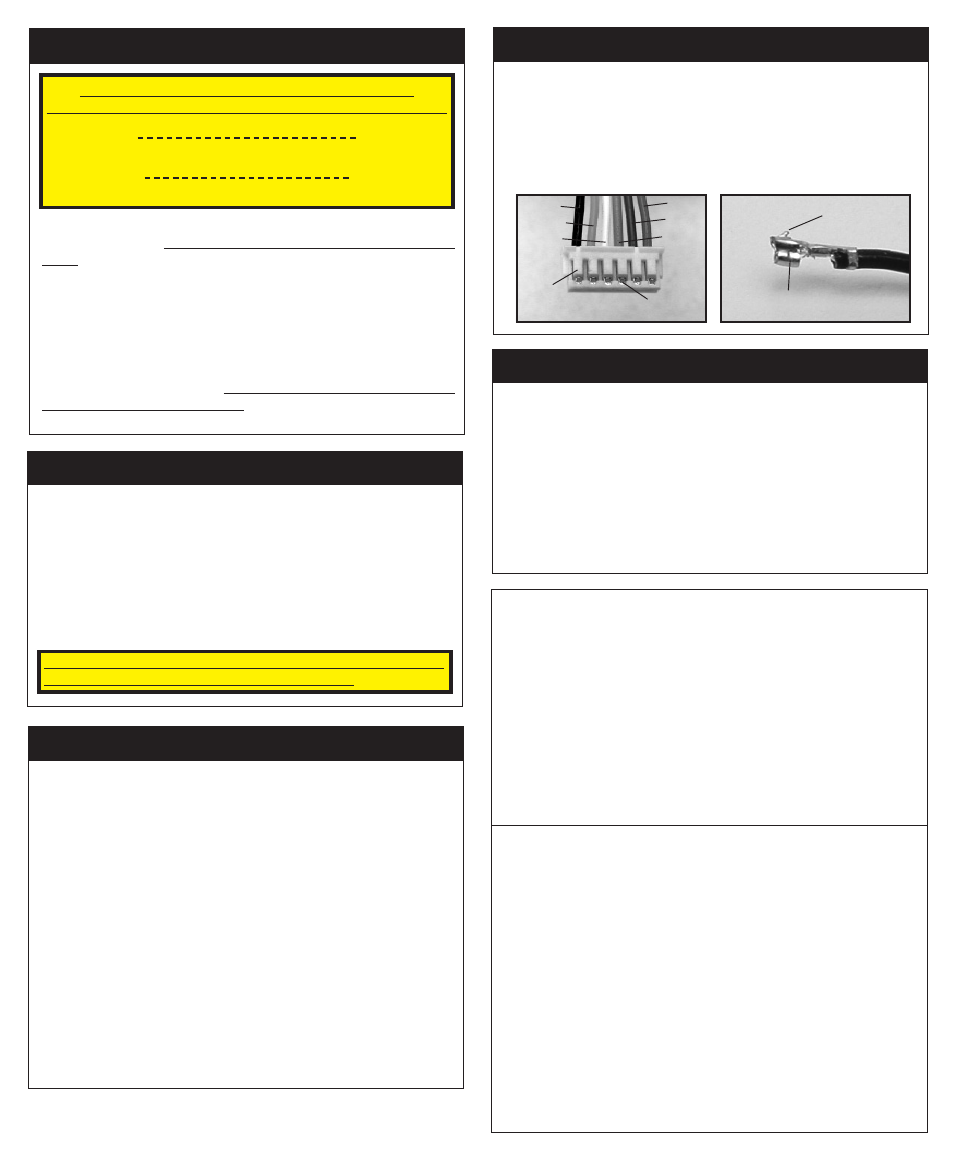

black
orange
white
plastic
tabs
red
blue
green
metal
barbs
raised
metal
barb
metal socket on end of
Teflon sensor harness wires
Should any of the 28G Teflon wires pull out of the motor’s sensor
harness connector, re-insert them in the connector’s appropriate
slot as shown below. There is a small plastic tab that grabs a
small raised barb on the back of the metal socket crimped onto
the Teflon wire’s end. Check the plastic tab to make sure it has
not deformed excessively before inserting the socket into the
plastic connector housing with the barb toward the plastic tabs.
SENSOR HARNESS WIRING
ACCESSORIES
5351-4 Shielded Sensor Harness--Double-ended. Available in 4”, 6”, 9”, and 12”
5512
12GA Power Wire Set--3 feet each black, red, and blue
5647 Black Cooling Fan--25x25x10mm--With 2-pin JST connector.
5654 High RPM Cooling Fan--30x30x10mm--With 2-pin JST connector.
5731 3.5mm Power Connectors/5 pair--Gold plated low-loss connectors
5741 4mm Power Connectors/5 pair--Gold plated low-loss high-amp connectors.
5832 Lead-Free 3% Silver Solder--15g Tube--Low-resistance, high-conductivity
5836 Heavy Duty Lead-Free 3% Silver Solder--25g Tube--Thicker 1.5mm
5851 Heat Shrink Tubing--24pcs Black--6” pieces in 6 sizes from 1/16-3/8”
5852 Heat Shrink Tubing--40pcs Blk/Red--1” pieces in 1/4” size--20 each
5853 Heat Shrink Tubing Box--160pcs Blk--4” pieces in 6 sizes from 1/16-3/8”
5860 Speed Lube--10ml--Premium American-made bearing oil with penetrative additives
OVERHEATING -- WARNING !
The Novak 4PHD Motor when used properly should not have an
issue of over-heating. However extended runtimes, gearing, ve-
hicle performance, and track conditions, can lead to overheating.
You must use extreme caution when setting up these
electronics and carefully test your application to avoid
overloading and overheating either the ESC or the motor.
Refer to GEAR SELECTION (above) regarding monitoring the
temperature of your motor to prevent overheating and damage.
Damage caused by excessive overheating WILL NOT be
covered under the product’s factory warranty.
MOTOR MAINTENANCE
• CHECK ALL MOTOR SCREWS for loosening at regular intervals,
just like other hardware on your vehicle. Note: The 3 main
socket head screws that hold the motor together may require
tightening after a few runs of the motor. Also check the 3 flat
head screws securing the end cap on the back of the motor.
• CHECK MOTOR BEARING WEAR after extensive use. The
motor’s closed design will keep most dirt and debris out, but
some will get in and eventually cause wear. If the shaft does not
spin freely, you may need bearing replacement. A small drop
of Novak Speed Lube (#5860) on the bearings periodically can
help extend bearing life. However, too much oil will attract dirt
and will cause problems, so apply sparingly.
• CLEAN INSIDE MOTOR periodically by removing front end
bell, removing the rotor, and blowing out the inside of the
motor with compressed air. Be sure not to lose any small shim
washers that may be on the ends of the rotor shaft, and keep
them in the correct location.
