14
6 Roll Sensor Installation
6.1 Bracket Assembly
1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine
screw and nylon lock-nuts.
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CANbus connector must be pointing towards the right
side of the sprayer.

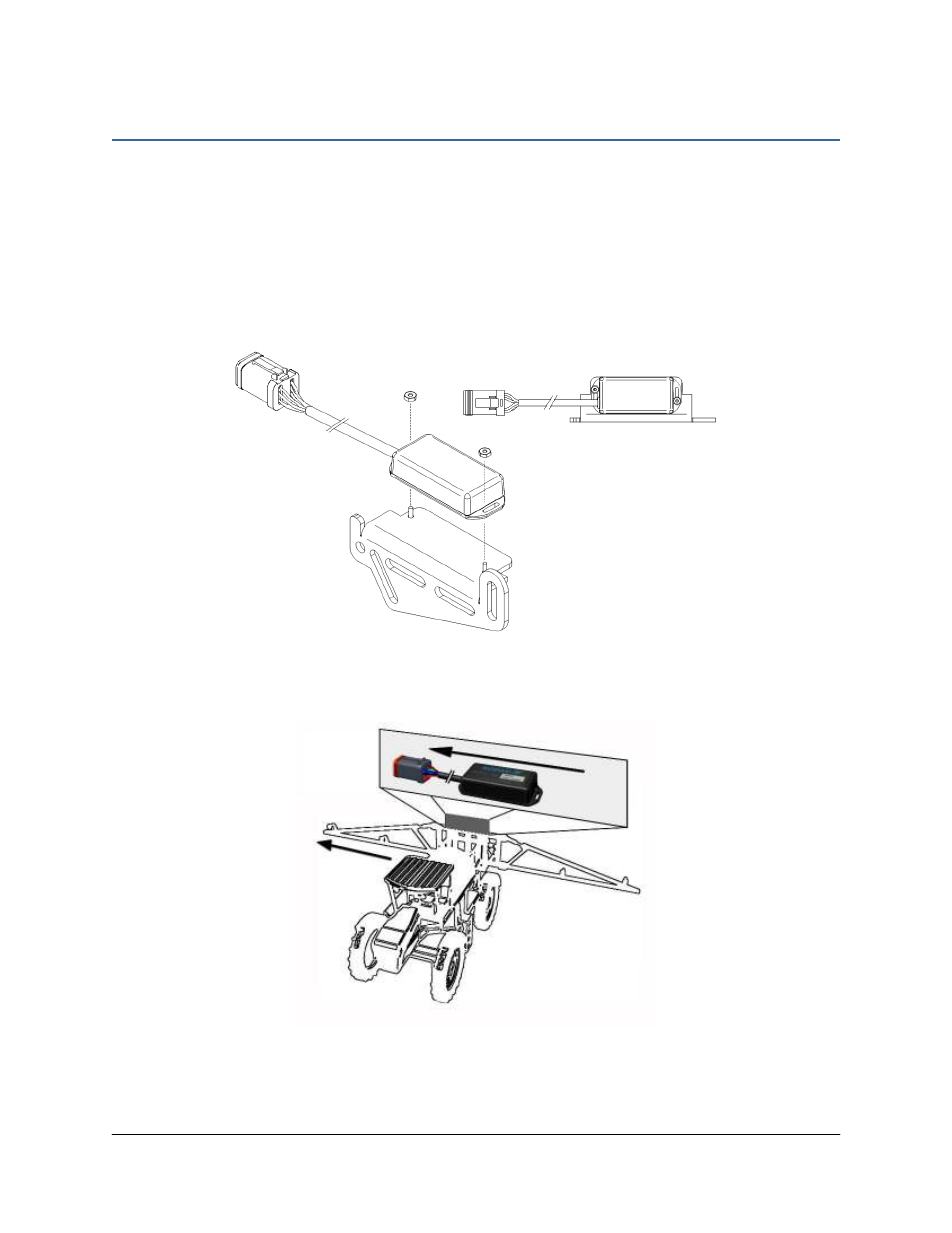

Figure 9: Mounting Roll Sensor to Bracket
Figure 10: Roll Sensor Orientation - Connector Facing Right Wing
