HYDRAULIC PLUMBING USING THE ADAPTER KIT
This portion of the manual is ONLY for sprayers that have a valve block with
serial number 21.12732 or lower.
If your sprayer has a valve block with a serial number of 21.12732 or lower the additional
hydraulics adapter kit shown in Table 6 must be purchased from NORAC.
Table 6: Adapter Kit (P/N - 44865-39)

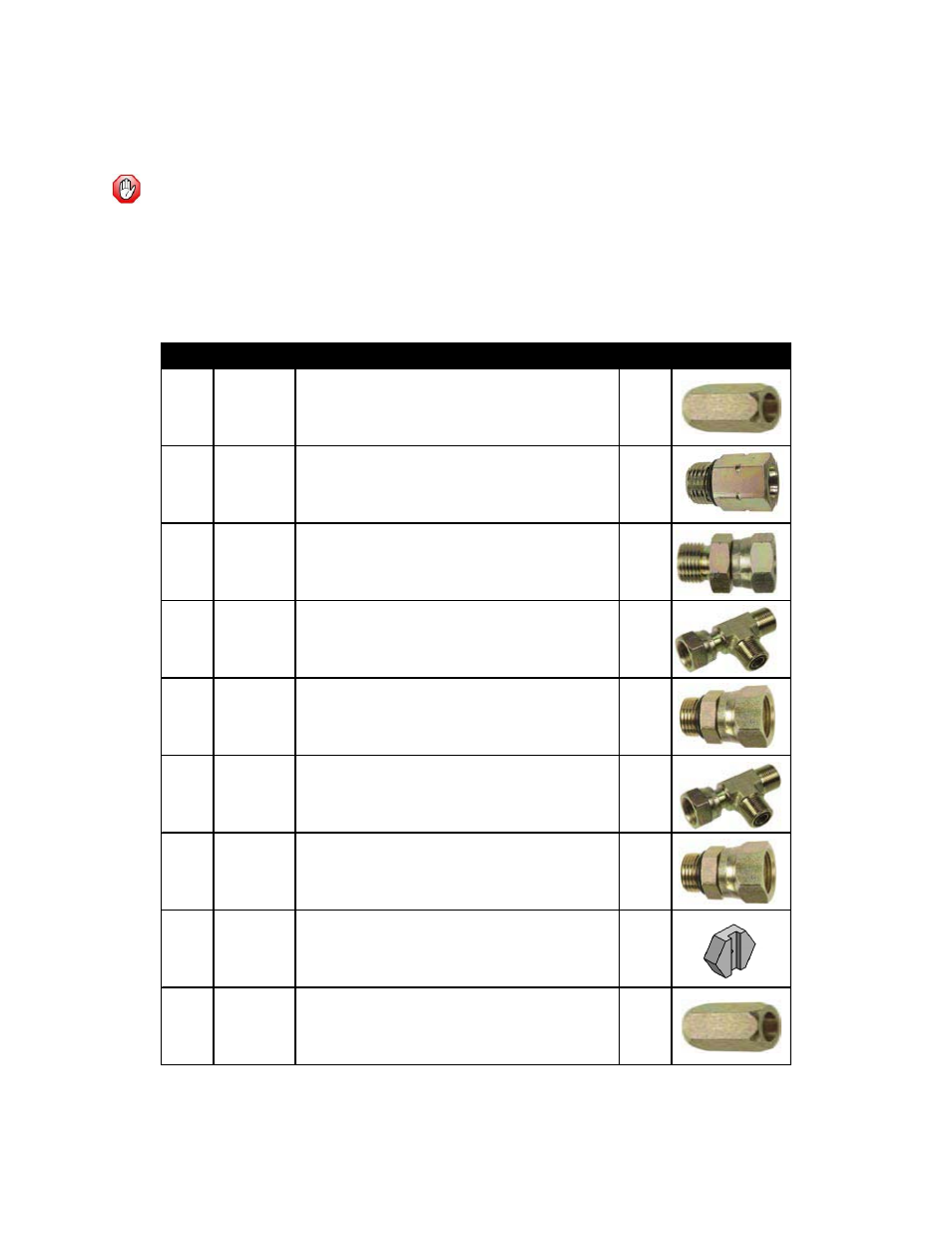

Item Part Number Name Quantity Picture
*F03 105733 COUPLING HYD UNION NO 6 FEMALE ORB 2
*F04 104929 COUPLING HYD 6MB 8FB 2
*F05 105732 COUPLING HYD 8MOR 12FORX 2
*F06 104885 TEE ADAPTER - 8FORXR 8MORT 2
*F07 105760 COUPLING HYD 8FOR 8MB 2
*F10 104586 TEE ADAPTER - 6FORXR 6MORT 2
*F11 104722 COUPLING HYD 6FORX 6MB 2
*F12 44928 ORIFICE INSERT .047 IN ONE WAY 2
*F13 105761 COUPLING HYD UNION NO 8 FEMALE ORB 2
NOTE: *F12 is not used for this installation.
